Hafele 833.77.977 LED Primary Side Dimmable Driver Leading Edge 108-132V/24V/40W

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.77.977

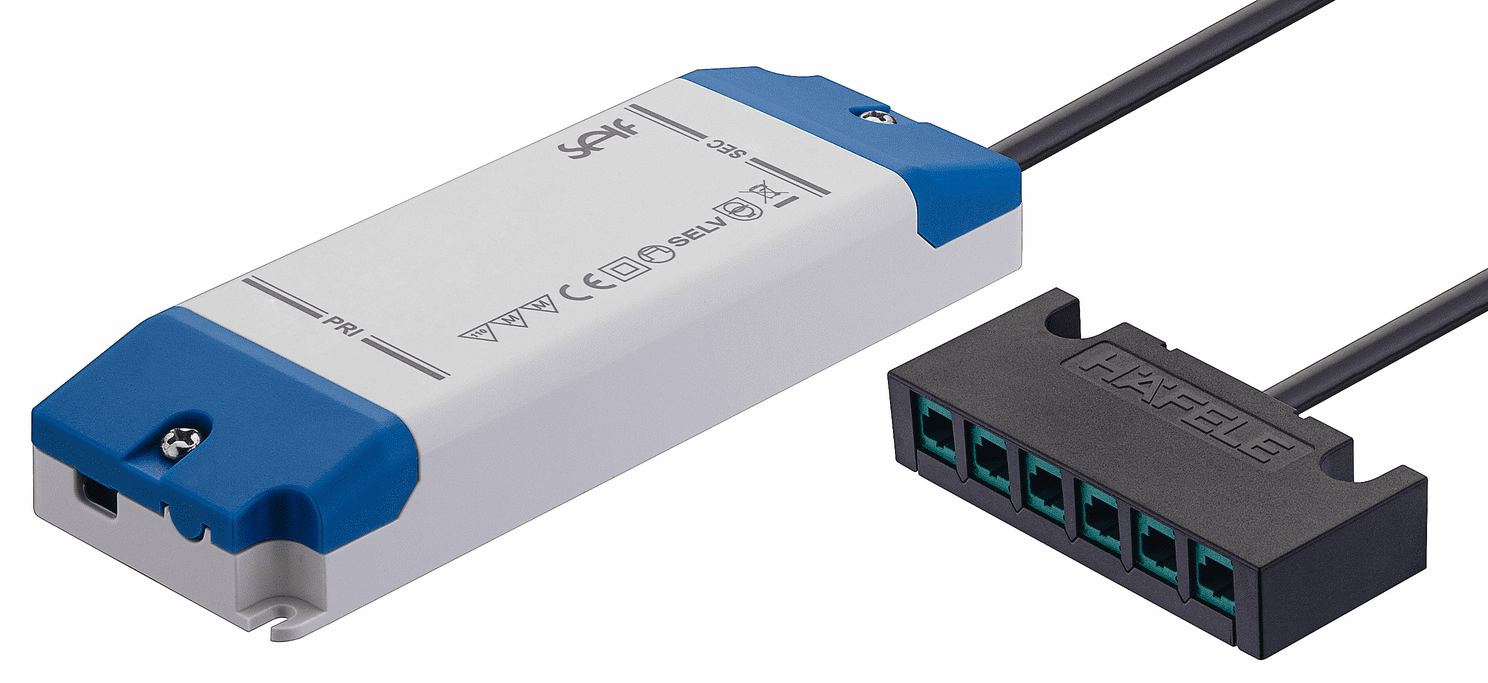

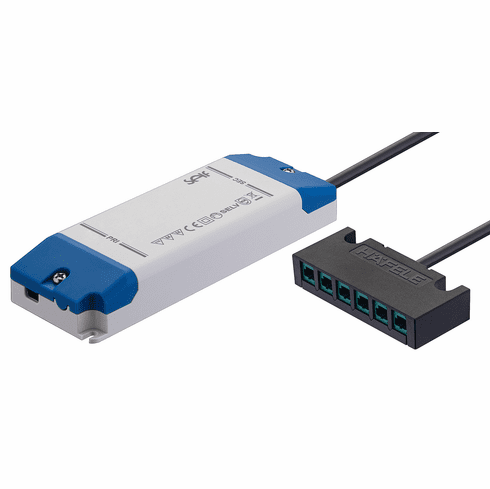

  Product Title: Dimmable driver, Dimmable with leading-edge phase dimmer or trailing-edge phase dimmer, With 6-way distributor, dimmable with leading edge control or trailing edge control dimmer, 30 W, US version, mains voltage: 120 V, dim. (L x W x H): 188 x 45 x 29 mm

  Category: Dimmable driver, Dimmable with leading-edge phase dimmer or trailing-edge phase dimmer, With 6-way distributor, dimmable with leading edge control or trailing edge control dimmer, 30 W, US version, mains voltage: 120 V, dim. (L x W x H): 188 x 45 x 29 mm

  Item Details …

  - Easily integrated into house installation

  - Can be dimmed directly at the driver input

  - Mains voltage : 120 V

  - Mains frequency : 50?–?60 Hz

  - Plug mains voltage : Direct connection for screw fixing

  - Ambient temperature : -20–35 °C

  - Dim. (L x W x H) : 188 x 45 x 29 mm

  - Output voltage : 24 V DC

  - Version : Dimmable using leading-edge phase dimmer or trailing-edge phase dimmer, with overload protection, short circuit protection, temperature protection and overvoltage protection

  - Material : Plastic

  - Color/finish : White

  - Input ports : 1 x socket, Direct connection for screw fixing

  - Connections : 6 x sockets, Loox5 2-pin 24 V

  - Installation : With screws

  - Installation reference : Only trained electricians with appropriate qualifications are permitted to install, start up and maintain the product.

  - Efficiency at 115 V full load : 85 %

  - Power consumption at 115 V no load : 1.50 W

  - Weight : 275.00 g

  - Supplied with:

  - 1 driver for direct connection, 1 Loox5 6-way distributor


  Additional Information …

  Max. lead length from Loox5 driver to consumer: 10 m.Due to long cable lengths, voltage losses occur in the cable in conjunction with large loads (strip light lengths). These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the rated output voltage of the driver.Intended use: Connecting dimmable lights (not for distributors with switching function or Connect Mesh, charging stations or sound systems)
