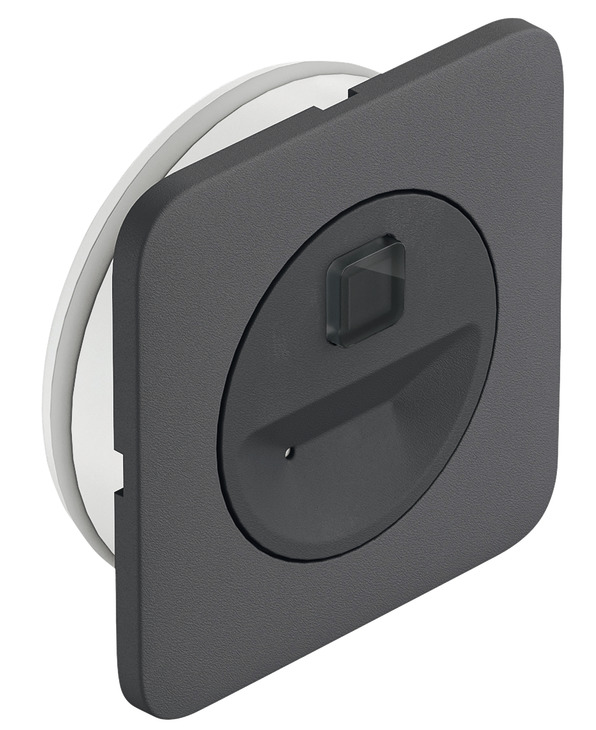

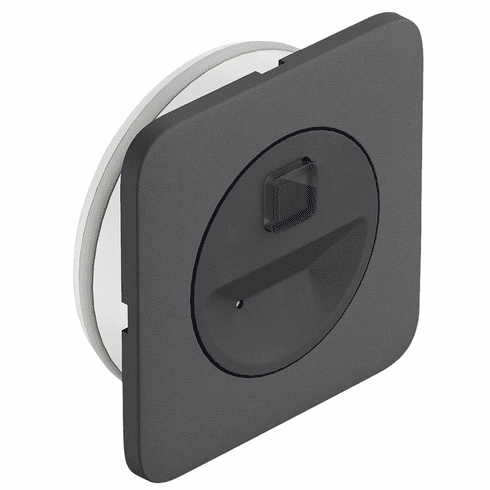

Hafele 850.00.954 Connect Mesh motion sensor 12V

Product Information

• Description

  Manufacturer: Hafele
  Item: 850.00.954

  Product Title: Radio remote control, Häfele Connect Mesh 12 V, Modular, 12 V

  Category: Radio remote control, Häfele Connect Mesh 12 V, Modular, 12 V

  Item Details …

  - Use Connect Mesh App to customize:

  - - Run-time

  - - Brightness threshold

  - - Soft-off settings

  - Area of application : For controlling components of a Häfele Connect Mesh network

  - Brand :

  - Voltage : 12.00 V

  - Version : Direct powered

  - Product type : Motion detector

  - Switching function : on/off, Dawn threshold value

  - Installation reference : Recess in drilled hole or surface mount with supplied switch housing

  - Signal transmission : wired

  - Certification of independent testing institutes : VDE

  - International certifications : USA FCC, Japan JATE TELEC MIC, Great Britain UKCA

  - Protection class : III

  - Wireless technology : Bluetooth®, EasyPairing

  - Degree of protection : IP20

  - Labels for correct purpose of use : Only to be used in enclosed, dry rooms.

  - Low voltage plug : Loox5 2-pin 12 V

  - Low voltage socket : Loox5 Modular with snap-in connector 12 V

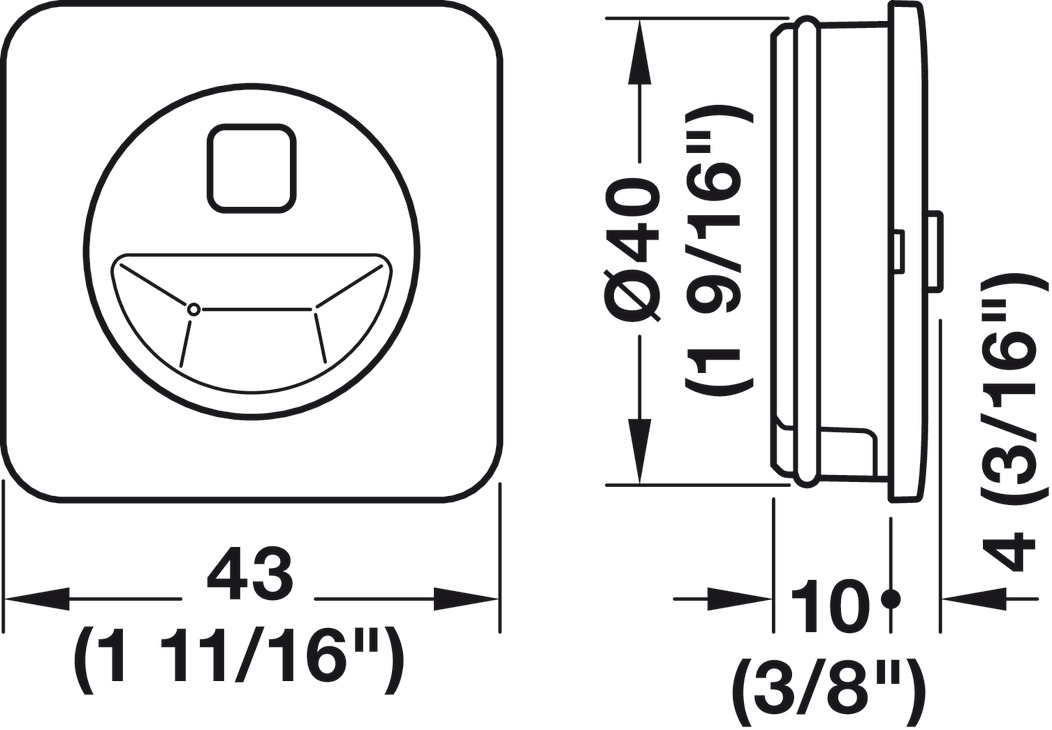

  - Dim. (L x W x H) : 43 x 43 x 10 mm

  - Material : Plastic

  - Installation : With screws, For mounting in drilled hole and for clamp fixing

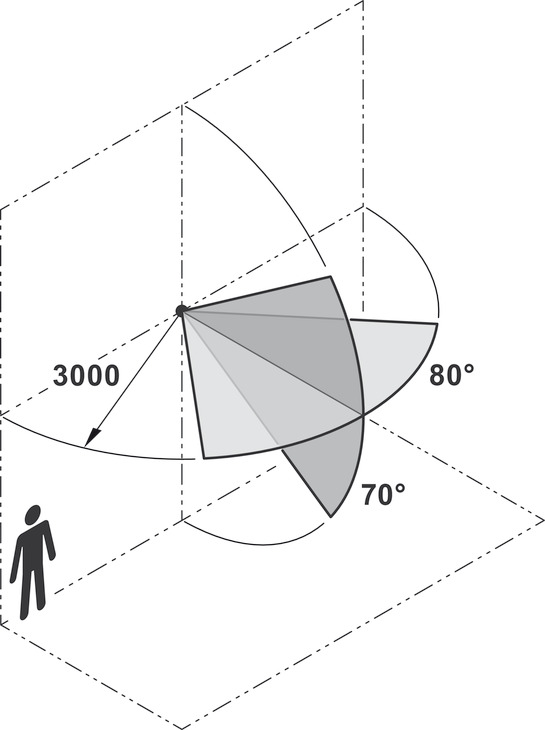

  - Sensor angle : 80.00 °

  - Vertical sensor bracket : 70.00 °

  - Drill hole Ø : 1 5/8"

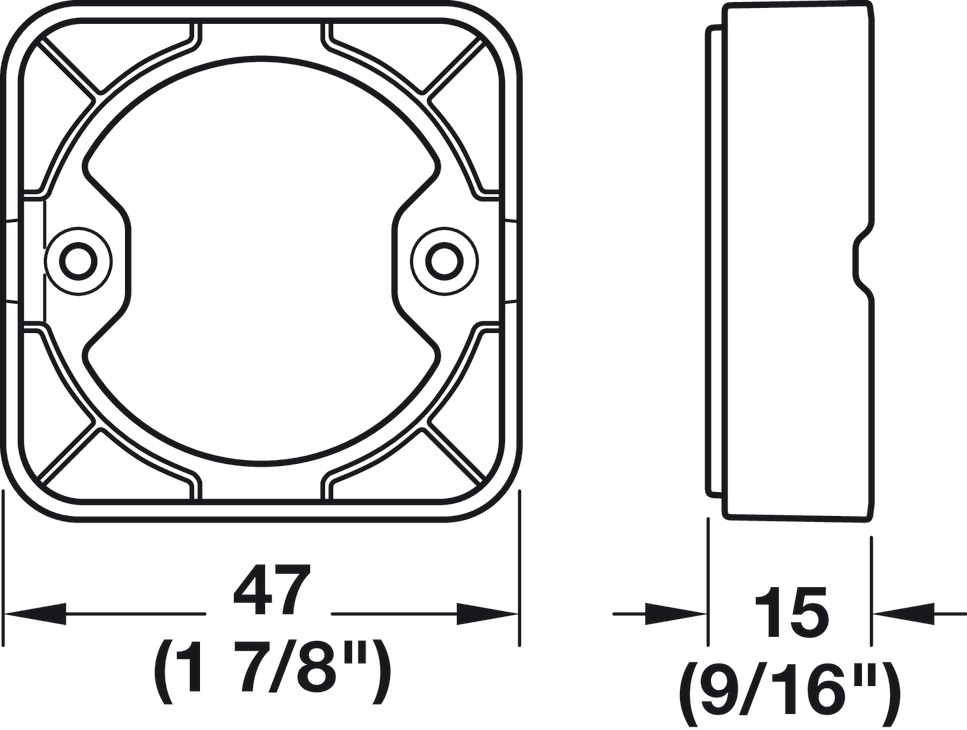

  - Dimensions : Switch: (L x W): 43 x 43 mm (1 11/16 x 1 11/16") and Housing: (L x W x H): 47 x 47 x 15 mm (1 7/8 x 1 7/8 x 9/16")

  - Power consumption : 2.00 W

  - Order reference

  - Please order Häfele Connect Mesh distributor separately.

  - Supplied with:

  - 1 motion detector switch

  - 1 surface mount housing

  - 1 12 V or 24 V modular lead cable (833.95.788 or 833.95.791)


  Additional Information …

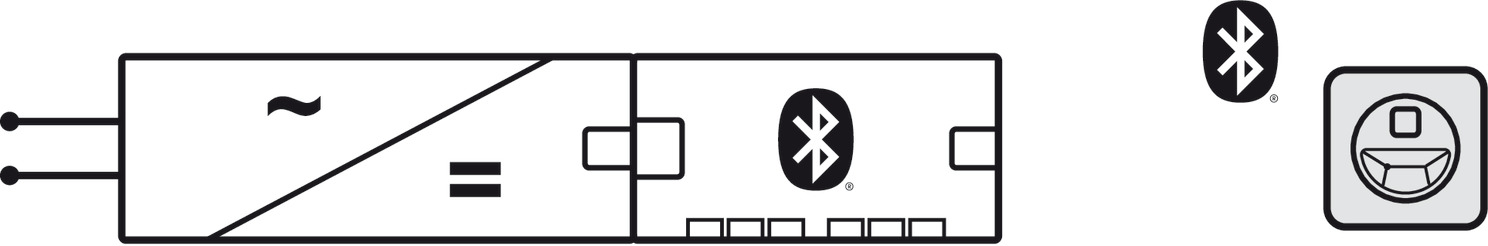

  Use the Häfele Connect Mesh app to pair the switch to a group of lights and to customize settings for run time, brightness threshold and soft-off settings.The modular lead cables are for power supply only. The switching signal is transmitted via Bluetooth®.



  Motion detector can only control lights that are connected to a Häfele Connect Mesh network.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for Connect Mesh furniture switch

  EasyPairing quick guide: pairing without app

  EU Declaration of conformity

  Häfele Connect Mesh Switches Sell Sheet EN



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Distributor, Häfele Connect Mesh 12 V with switching function 2-pin (monochrome) (choose one):


  • with programmable switching input, Voltage 12 V, max. connected wattage 60 W

    850.00.042
