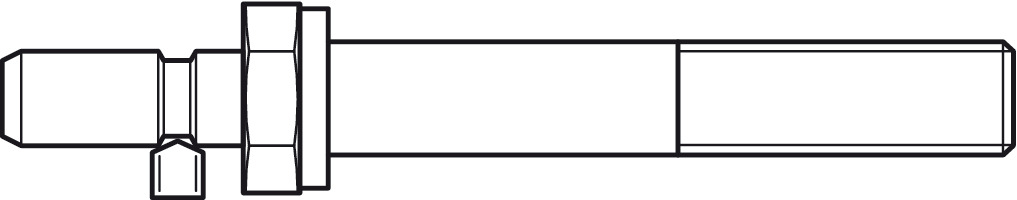

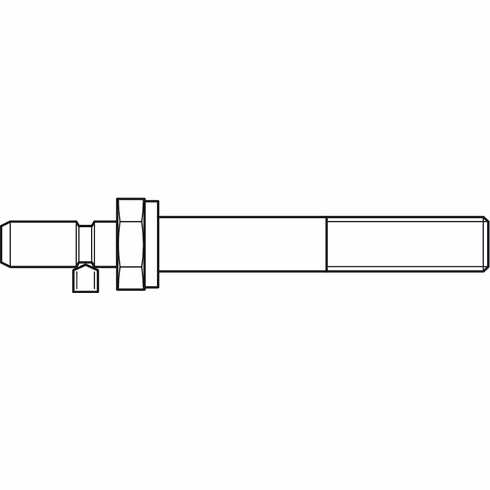

Hafele 909.03.872 Mounting Set, Back-To-Back, for Pull Handles Straight support, For door thickness: (1 7/8 - 2 1/16") 48 - 52 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 909.03.872

  Product Title: Mounting Set, Back-To-Back, for Pull Handles, Straight support for Wood Doors, For door thickness: (1 7/8 - 2 1/16") 48 - 52 mm

  Category: ,

  Item Details …

  - Area of application : For Diameter: 25 mm (1") and Diameter: 30 mm (1 3/16") pull handles

  - Suitable for : Häfele Startec door handle model PH 1122, 2110, 2111, 2112, 2113, 2114, 2115, 2116, 2121, 2122, 2126, 2127, 2130, 2131, 2132, 2133, 2134, 2135, 2844, 2866

  - Door type : Wooden doors, Metal doors, Plastic doors

  - For support shape : for straight supports

  - Drill hole Diameter: : 12.50 mm

  - Thread Diameter: : M12

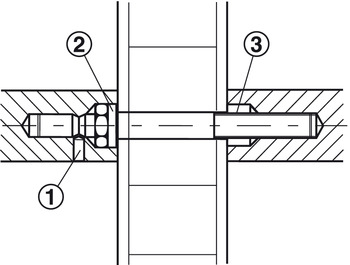

  - Installation : Back-to-back

  - Order reference

  - Two mounting sets are required for each pair of door handles when installed in pairs.


  Additional Information …

  Square spindles and screws for the specified door thicknesses are supplied with the sets.
