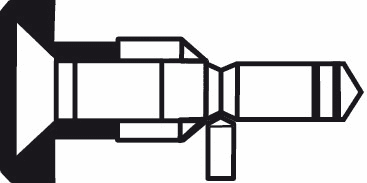

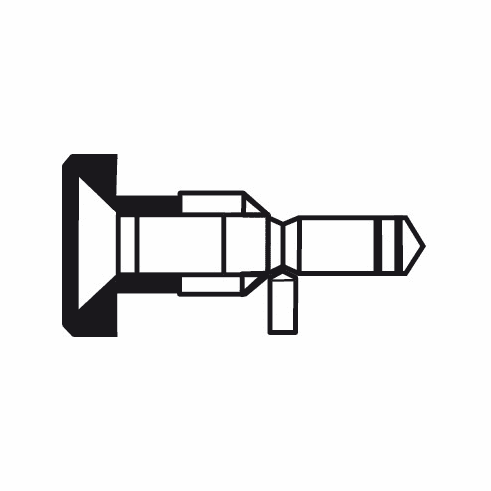

Hafele 909.03.902 Mounting Set, One-Sided with Decorative Rose, for Pull Handles Glass Thickness: (5/16" - 1/2") 8 - 12 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 909.03.902

  Product Title: Mounting Set, One-Sided with Decorative Rose, for Pull Handles, Visible, Glass Thickness: (5/16" - 1/2") 8 - 12 mm

  Category: ,

  Item Details …

  - Each pull requires 2 mounting sets

  - Area of application : For Diameter: 25 mm (1") and Diameter: 30 mm (1 3/16") pull handles

  - For door thickness : 8 – 12 mm

  - For glass thickness (inches) : 5/16" – 1/2"

  - Drill hole Diameter: : Door drilling Diameter: (5/8") 16 mm

  - For door thickness min. : 5/16"

  - For door thickness max. : 1/2"

  - For min. glass thickness (inches) : 5/16"

  - For max. glass thickness (inches) : 1/2"

  - Drill bit (inch) : 5/8"

  - Suitable for : Startec door handle, model PH 2110, 2111, 2112, 2113, 2114, 2115, 2116, 2117, 2118, 2119, 2120, 2121, 2122, 2123, 2126, 2127, 2130, 2131, 2132, 2133, 2134, 2135

  - Door type : Glass doors

  - For support shape : for straight supports

  - Drill hole Diameter: : 16.00 mm

  - Installation : on one side, visible from opposite side

  - Order reference

  - One-sided applications require 2 mounting sets per pull. Back-to-back applications require 2 mounting sets for a pair of pull


  Additional Information …

  Square spindles and screws for the specified door thicknesses are supplied with the sets.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Architectural_Hardware_2022|Page 2.18



• Specifications

  Hafele 909.03.902, 909-03-902, 90903902, 909.03


  Specifications/Hafele Catalog - Page# AH3.27: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Door Handles Commercial Catalog Return to: All Hafele Catalogs
