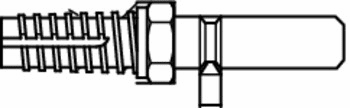

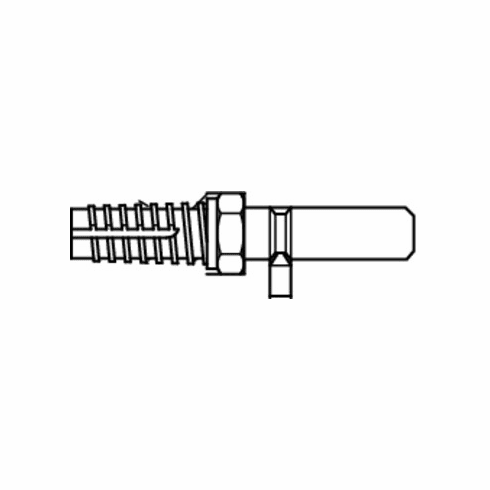

Hafele 909.04.800 Mounting Set, One-Sided, for Pull Handles Insert with self-cutting thread

Product Information

• Description

  Manufacturer: Hafele
  Item: 909.04.800

  Product Title: Mounting Set, One-Sided, for Pull Handles, for Wood and Storefront Doors, Concealed, straight support, Insert with self-cutting thread

  Category: ,

  Item Details …

  - Each pull requires 2 mounting sets

  - Area of application : For Diameter: 25 mm (1") and Diameter: 30 mm (1 3/16") pull handles

  - Version : With self-tapping thread

  - Screw length : 28.00 mm

  - Drill hole Diameter: : Door drilling Diameter: (3/8") 10 mm

  - Thread Diameter: : 7/16"

  - Drill bit (inch) : 3/8"

  - Suitable for : Startec door handle, model PH 2110, 2111, 2112, 2113, 2114, 2115, 2116, 2117, 2118, 2121, 2122, 2126, 2127, 2130, 2131, 2132, 2133, 2134, 2135, 2844, 2866

  - Door type : Metal doors, Plastic doors

  - For support shape : for straight supports

  - Drill hole Diameter: : 10.00 mm

  - Thread Diameter: : 11.80 mm

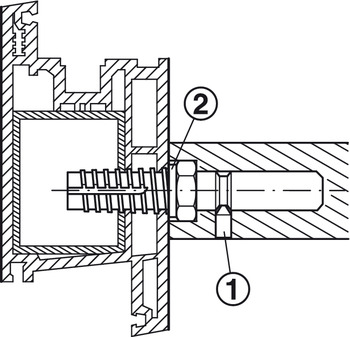

  - Installation : on one side, with self-tapping thread

  - Order reference

  - One-sided applications require 2 mounting sets per pull. Back-to-back applications require 2 mounting sets for a pair of pulls.


  Additional Information …

  Square spindles and screws for the specified door thicknesses are supplied with the sets.
