Hafele 909.07.024 Fastener, Back to Back Mount for Glass Doors HEWI, (1 9/16 - 2") 40 - 50 mm Door Thickness

Product Information

• Description

  Manufacturer: Hafele
  Item: 909.07.024

  Product Title: Fastener, Back to Back Mount for Glass Doors, HEWI, (1 9/16 - 2") 40 - 50 mm Door Thickness

  Category: ,

  Item Details …

  - All standard pull handles require 2 fasteners

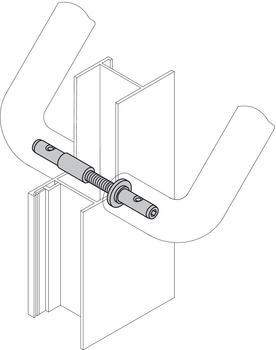

  - Area of application : Wood doors, plastic & aluminum storefront doors

  - For door thickness : 40β€Šβ€“β€Š50 mm

  - Model : BA 8.40.50

  - For door thickness min. : 1 9/16"

  - For door thickness max. : 2"

  - Drill bit (inch) : 1/2"

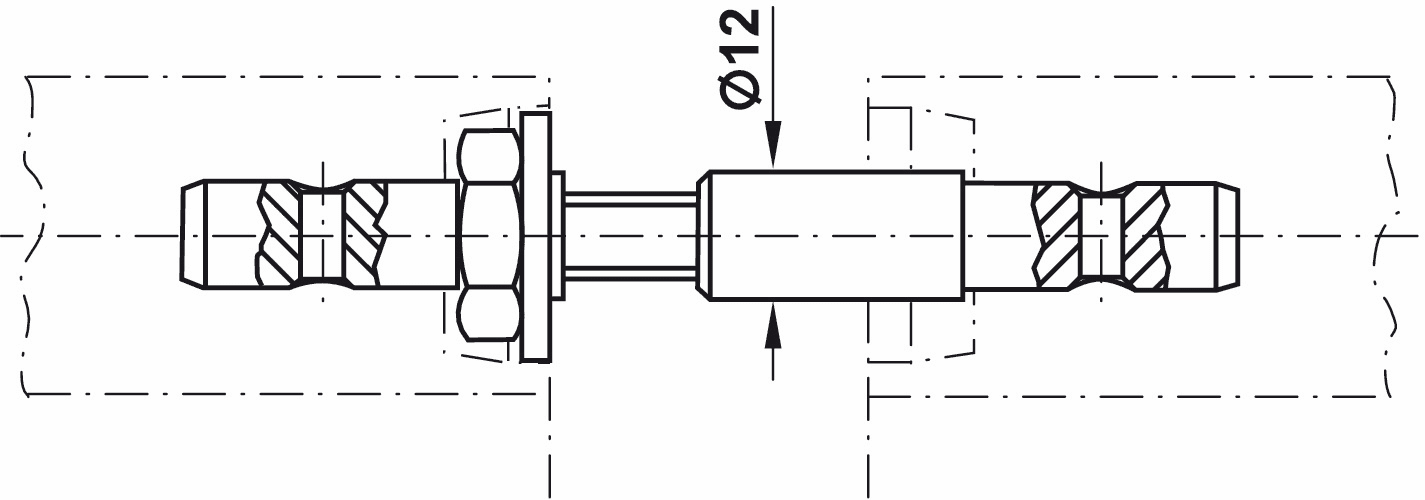

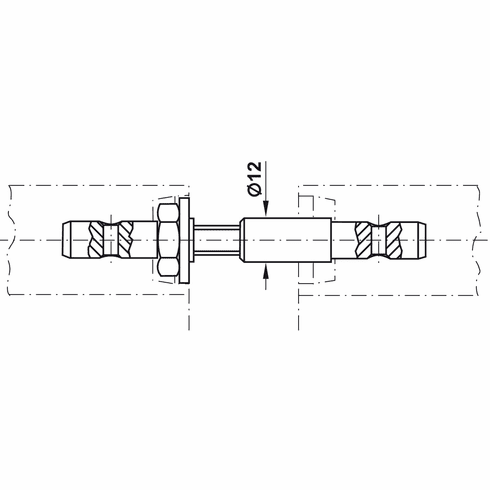

  - Drill hole Diameter: : 12.00 mm


  Additional Information …

  Square spindles and screws for the specified door thicknesses are supplied with the sets.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Architectural_Hardware_2022|PageΒ 2.12



• Specifications

  Hafele 909.07.024, 909-07-024, 90907024, 909.07


  Specifications/Hafele Catalog - Page# AH3.20: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Door Handles Commercial Catalog Return to: All Hafele Catalogs
