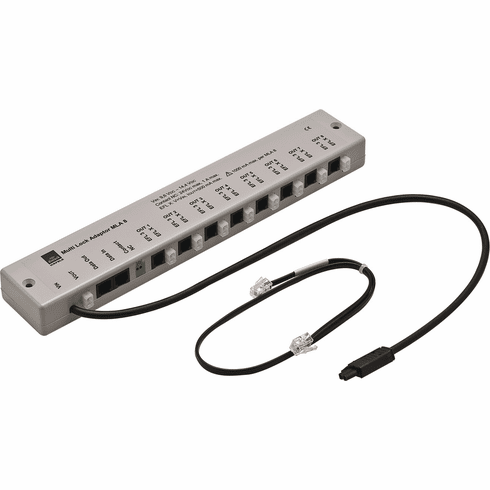

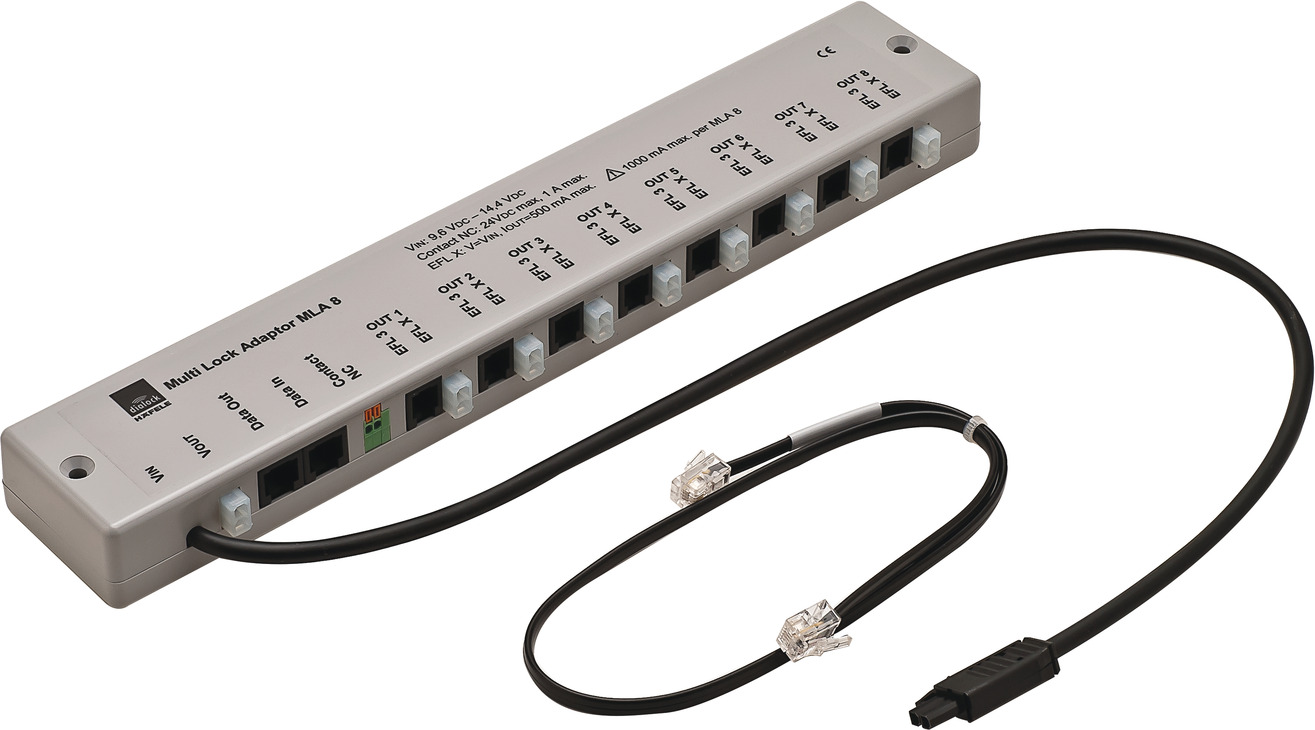

Hafele 910.51.084 MLA8 Distribution Block for DFT, plastic, gray

Product Information

• Description

  Manufacturer: Hafele
  Item: 910.51.084

  Product Title: Multi-Lock-Adapter, MLA 8, Dialock®, Gray

  Category: Multi-Lock-Adapter, MLA 8, Dialock®, Gray

  Item Details …

  - up to 16 MLA 8 possible with keyed alike operation

  - max. 1 MLA 8 possible with keyed to differ operation

  - LED for function monitoring

  - separate power supply

  - quick and cost-effective installation

  - Product type : Multi-Lock-Adapter

  - Temperature min. : 32.00 °F

  - Temperature max. : 122.00 °F

  - Area of application : electronic output extender for indoor use: For keyed alike and/or keyed to differ EFL furniture locks

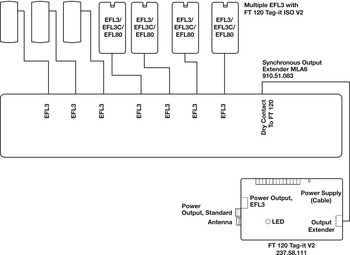

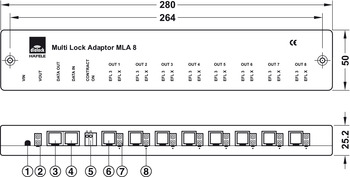

  - Version : with RJ10 socketfor EFL 3 and/or EFL 3C furniture lockwith AMP socketfor EFL 1, EFL 1C, EFL 6, EFL 41 and/or EFL 7 furniture lockswith RJ11 socketfor FT 120, FT 130 furniture terminal with power and data cableProgramming takes place outside the furniture, and there are LEDs for function monitoring and troubleshooting next to each of the 8 outputs

  - Material : Housing: Plastic

  - Color/finish : Housing: Light grey

  - Type of voltage supply : Power supply unit

  - Input voltage : 9.6?–?14.4 V

  - Nominal voltage : 12.00 V

  - Power supply cable length : 0.50 mm

  - Operating temperature : 0??–??50 °C

  - Suitable for Dialock device : EFL 3, EFL 3C, EFL 1, EFL 1C, EFL 6, EFL 41 and EFL 7 furniture lock, FT 120, FT 130 furniture terminal

  - Supplied with:

  - Mounting block

  - 0.5 m (11/16”) Cable

  - Instructions


  Additional Information …

  Unsuitable FT furniture terminals may be installed in old installations.If this is the case, please contact your appropriate Häfele member of staff.
