Hafele 910.51.135 Online Network Device, ND 101, Tag-it Dialock online solutions

Product Information

• Description

  Manufacturer: Hafele
  Item: 910.51.135

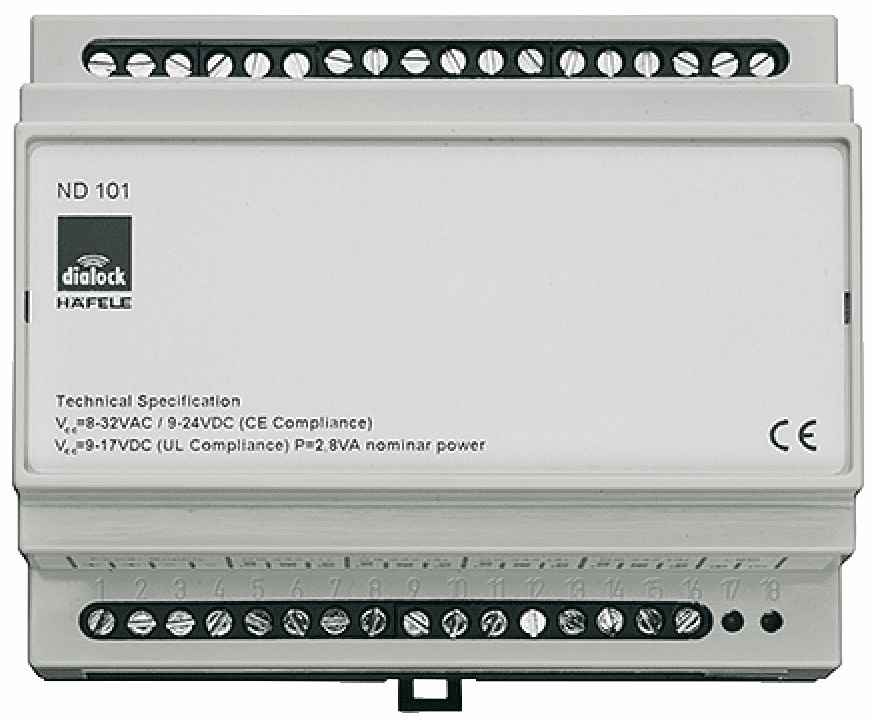

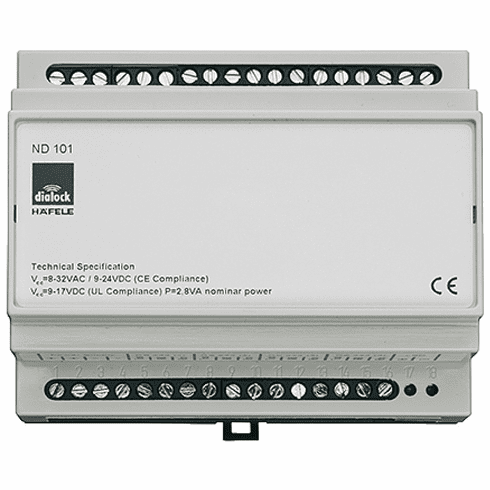

  Product Title: Online Network Device, ND 101, Tag-itTM ISO, Dialock® online solutions

  Category: Online Network Device, ND 101, Tag-itTM ISO, Dialock® online solutions

  Item Details …

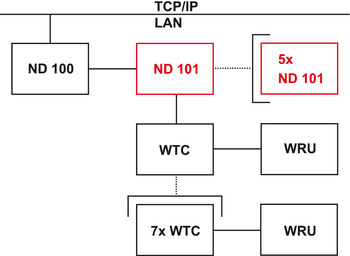

  - The ND 101 is used to connect up to eight Dialock Wall Terminals via RS 232 interface which connects to the TCP/IP network

  - Up to six ND 101s can be connected to an ND 100, i.e. a max of 48 Wall Terminals can be connected to an online cluster

  - 8 RS 232 connections for up to 8 Dialock Wall Terminals with a distance of up to 100 meters

  - 1 RS 232 interface to connect to ND 100 or ND 101

  - 1 RS 232 interface to connect additional ND 101s

  - Very low power consumption: Power can be supplied from the ND 100

  - Product type : Online Network Device

  - Area of application : For bundling data signals from the WT wall terminal sets (connection to electronic control unit) and transferring to the ND 100 online adapterFor connecting max. 8 WT wall terminal sets and 5 other ND 101 online extensions (max. 48 WT wall terminal sets can be networked at one ND 100 online adapter).


  Additional Information …

  Notes on operation and installationThe cable length (connection from ND 101 to the electronic control unit) must not exceed 100 m.The planning of online solutions must be coordinated and implemented together with a Dialock specialist.

• Data Sheet

  Detailed Data Sheet

• Specifications

  Hafele 910.51.135, 910-51-135, 91051135, 910.51


  Specifications/Hafele Catalog - Page# AH6.33: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Access Control Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader
