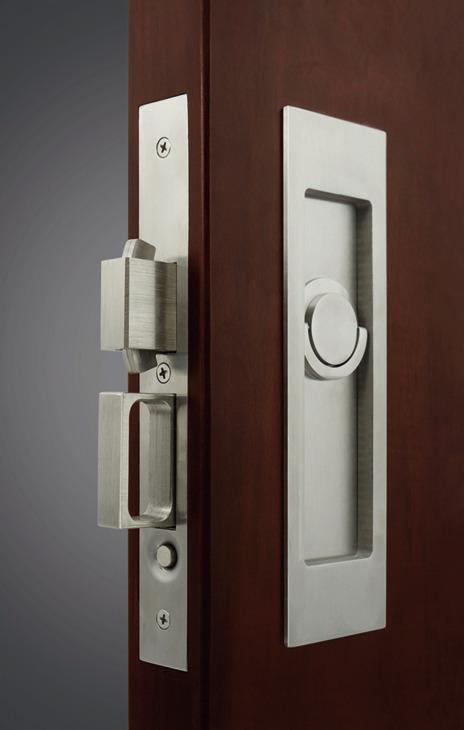

Hafele 911.26.811 Sliding/Pocket Door Lock, With Edge Pull for Inactive Door For wood doors, Oil-rubbed bronze

Product Information

• Description

  Manufacturer: Hafele
  Item: 911.26.811

  Product Title: Sliding/Pocket Door Lock, With Edge Pull for Inactive Door, For wood doors, Oil-rubbed bronze

  Category: Sliding/Pocket Door Lock, With Edge Pull for Inactive Door, For wood doors

  Item Details …

  - Backset (mm) : 70.00 mm

  - Backset (mm) : 2 3/4"

  - Forend design : Flat forend edged

  - Forend width : 25.40 mm

  - For door thickness : ?45 mm

  - Material : Lock-case: Heavy gauge steelDeadbolt and Edge Pull: Brass, stainless steelFaceplate and strike: Brass, stainless steel

  - Latchbolt version : Without latch

  - For door thickness min. : 1 3/4"

  - Bolt throw : 1"

  - Area of application : Residential areas, Projects

  - Application : Sliding doors

  - For door material : wood

  - Version : with pull handle (can be unlocked by push-button)

  - Color/finish : Oil rubbed bronze (US10B)

  - Forend length : 182.00 mm

  - Deadbolt version : Double hook deadbolt

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Architectural_Hardware_2022|Page 1.389



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.364-1.367.pdf

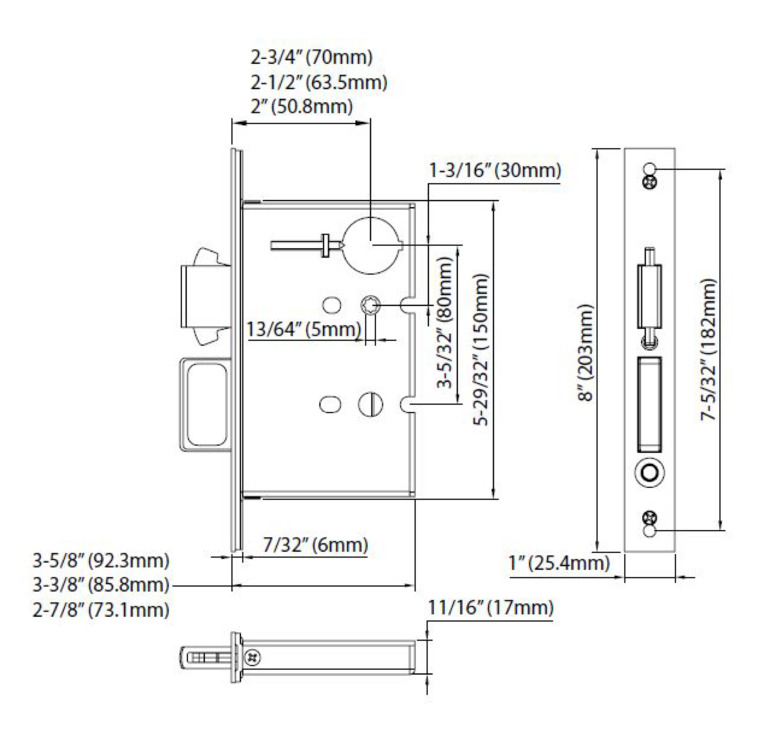

  Hafele 911.26.811 Mortise Lock Case, with strike and edge pull, 2 3/4"


  • Hardware
  • Trade Discount (15% OFF Coupon),The Complete Hafele,hafele-misc
  • Brand: Hafele
  • Part#: 911.26.811
  • Condition: new
