Hafele 911.26.972 BL100 Privacy Lock, for Sliding Barn Door Square trim, ADA T3 thumb-turn, oil-rubbed bronze, 2 1/4" lock backset

Product Information

• Description

  Manufacturer: Hafele
  Item: 911.26.972

  Product Title: BL100 Privacy Lock, for Sliding Barn Door, Square trim, ADA T3 thumb-turn, oil-rubbed bronze, 2 1/4" lock backset

  Category: BL100 Privacy Lock, for Sliding Barn Door,

  Item Details …

  - Tubular drive-in bolt installed into jamb

  - Adjustable dust proof strike installed in the door on trailing side

  - Discrete release button installed on outer face of door for emergency release

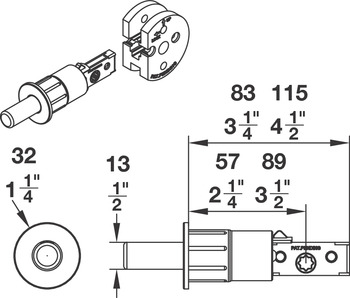

  - 2 backset options: 2 1/4” backset for wall thicknessof 4 1/2” - 6 1/2” or 3 1/2” backset for wall thickness 6 1/2” and up

  - Non-handed

  - Various trim options including ADA compliant levers

  - Spindle hub: 5 x 5 x 62 mm (3/16” x 3/16” 2 7/16”)

  - For door thickness min. : 1 3/8"

  - For door thickness max. : 1 3/4"

  - Backset (mm) : 2 1/4"

  - Supplied with:

  - Spindle and screws

  - Spindle size: 5 x 5 x 62 mm (3/16 x 3/16 x 2 7/16”)

  - Screw size: M4 x 50 mm (1 15/16”)
