Hafele 917.41.950 Additional Wall Reader, WT 100, Tag-it Dialock, Plastic, anthracite/silver colored

Product Information

• Description

  Manufacturer: Hafele
  Item: 917.41.950

  Product Title: Additional Wall Reader, WT 100, Tag-itTM ISO, Dialock®, Plastic, anthracite/silver colored

  Category: Additional Wall Reader, WT 100, Tag-itTM ISO, Dialock®, Plastic, anthracite/silver colored

  Item Details …

  - Connection cable between reader and control module is supplied by customer.

  - Cable type is RS485, PLTC/CM 22AWG, or CL3R C(UL) CMR 20 AWG.

  - Reader is mounted into reader socket.

  - Minimum clearance between 2 readers is 250 mm (9 13/16").

  - Wall terminals must be installed by a qualified electrician, in compliance with all governing codes.

  - Reader must be surface mounted if it is applied to a metal face of a control panel or similar application.

  - Product type : Wall reader

  - Color/finish : Anthracite coloredSilver colored

  - Area of application : for outdoor and indoor usefor hotelsfor protecting of a door at both sides (interior and exterior) with identical access authorisations, also for implementing a double door system

  - Transponder technology : Tag-it™-ISO®

  - Material : Plastic

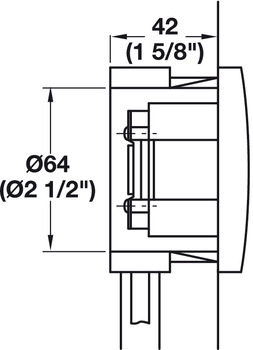

  - Installation reference : Notes on operation and installationWhen using an additional wall reader, the total cable length to both wall readers must not exceed 35 m, please contact a Dialock specialist if deviating from this.Installation of wall reader in flush-mount socket with 2 device fastening screws (60 mm in accordance with DIN).Ensure horizontal screw points.Minimum distance between 2 wall readers 250 mm.Installing the wall reader in a metal environment requires planning.

  - Supplied with:

  - 1 WRU 100 R2 wall reader, standard design with frame

  - 1 configuration transponder No. 20 (for addressing the wall reader)

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Mounting and Operating Instructions

  WT 100 Ordering Product Components
