Manufacturer: Hafele
Item: 917.46.550

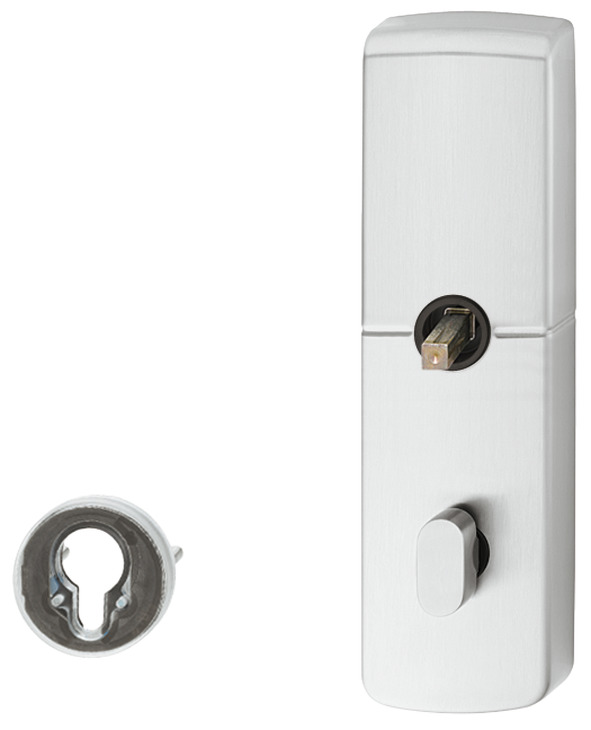

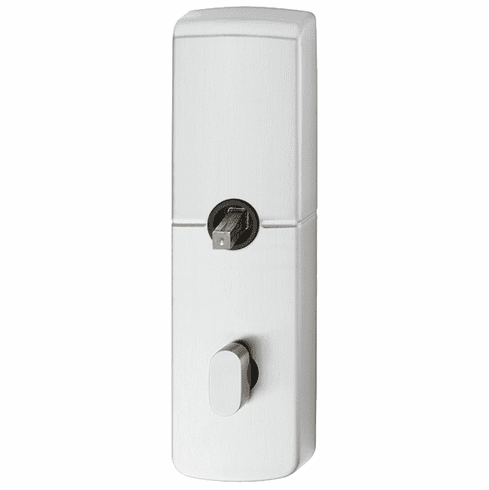

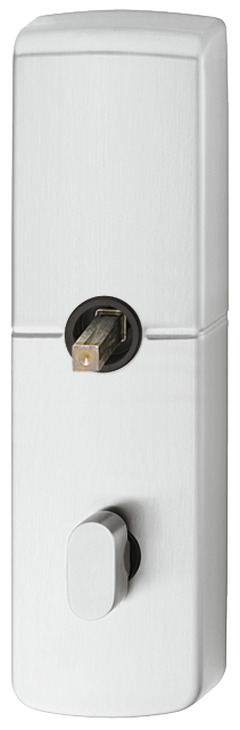

Product Title: Door terminal module, DT 400 FH, Dialock, with thumbturn, Tag-itTM ISO, For interior guest room doors, satin
Category: ,
Item Details …

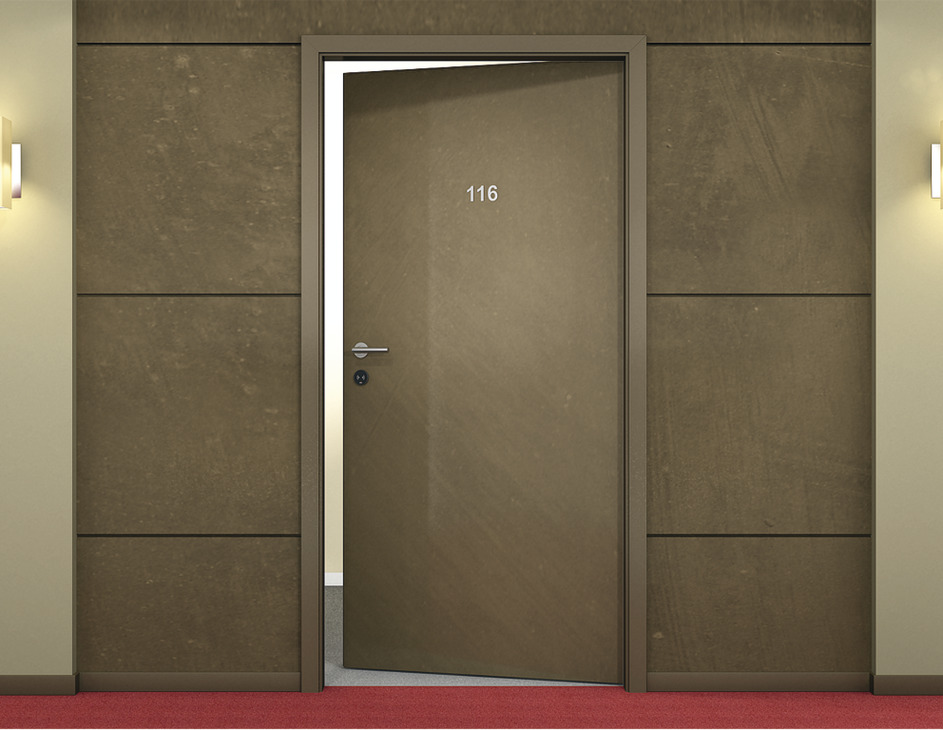

- Area of application : For interior hotel room doors with thumbturn
- Transponder technology : Tag-itâ„¢-ISO
- Functionality : battery-operated, intelligent door terminal, contactless activation using Dialock key- Indication of unlocking and locking with white/red LEDs- Door backplate interior module with rotary knob with which "Do not disturb" can be indicated on the reader module with a flashing signal- Door backplate interior module with battery compartment- The door can be opened from the inside without a key at any time- electronic and mechanical emergency opening is possible- for service personnel: Indication of programming status and when battery change is required- with real-time clock and logging of all procedures, including electronic and mechanical emergency openings- MDU for programming
- Options : Escutcheon foil for reader module with PZ or as blind cover

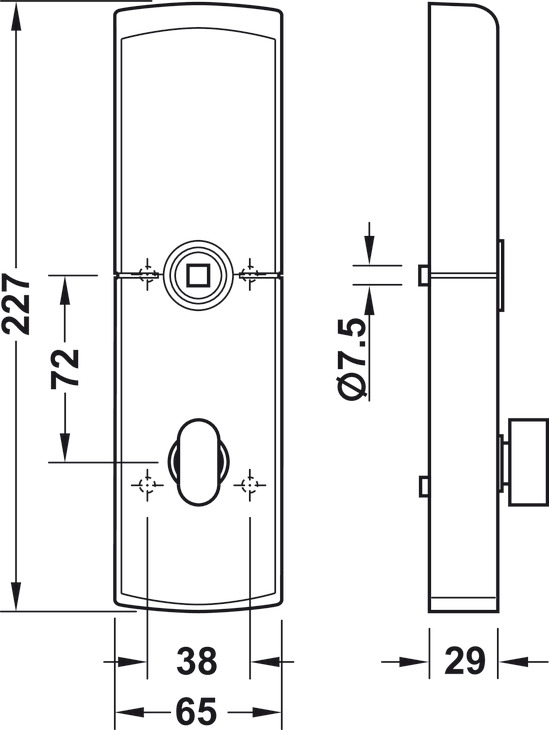

- Installation reference : Please note the following dimensions during installation as a functional unit:- A external length, relevant for profile cylinder selection- B internal length, relevant for profile cylinder selection, must not be longer than dimension B1- C external door thickness, relevant for selection of spindle, spacer plate- D internal door thickness, relevant for spindle selection- E total door thickness, relevant for mounting screw selection
- Order reference
- The following must also be ordered for a fully operational unit:
- â’· 1 mortice lock for DT 400
- â’¸ 2 lever handle aperture parts
- â’¹ 1 single cylinder for mechanical emergency opening

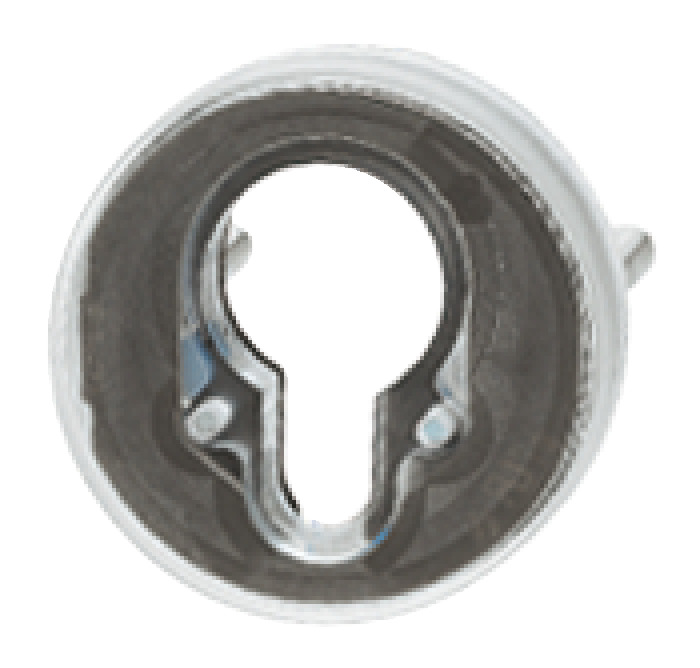

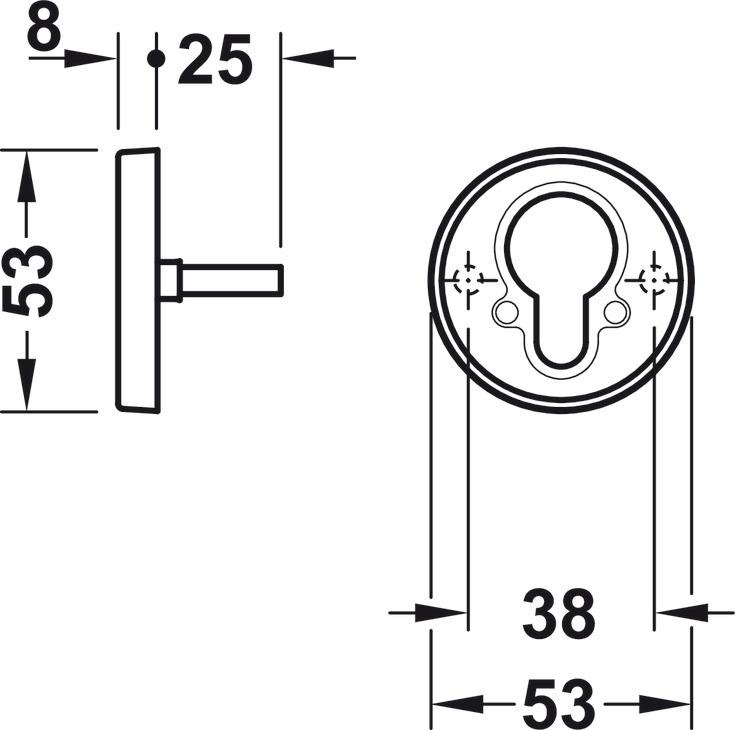

- â’º 1 escutcheon foil
- â’º 1 spindle
- â’» 1 set of mounting screws for reader module and interior module
- â’» 4 batteries
- Supplied with:
- 1 R2 reader module as reader unit with escutcheon
- 1 R2 interior module
Additional Information …
Notes on operation and installationPlanning by Dialock specialist is required.DT 400 FH door terminal modules must be installed by Dialock specialists after approval by the door manufacturer. Otherwise the Fire and Smoke Control Certificate for the door will be invalidated.Only to be used in combination with DIN mortice lock for DT 400. The comfort function is set via the mortice lock.Spacer plateIf the distance between top edge of face veneer and lock case is less than 8 mm, a spacer plate must be used.Mechanical emergency openingDT 400 FH door terminal modules must always be equipped with a single profile cylinder for mechanical emergency opening. When using the mechanical emergency opening, please note the information sheet for determining the length of the single profile cylinder (operating instructions can be found in our online shop "www.hafele.com").Outdoor versionOnly the reader module is suitable for outdoor use. Please note the installation specifications for this version.The outdoor version must be approved by Häfele for the respective installation site. Extreme locations such as salty environments are not possible. Please contact your appropriate Häfele member of staff when ordering the product.Battery change:The type-specific discharge behaviour (steep drop in voltage at the end of the life time) of lithium batteries can lead to the battery due date only being displayed on the terminal for a short period or not at all. We recommend changing the batteries before the winter months with the outdoor version.
