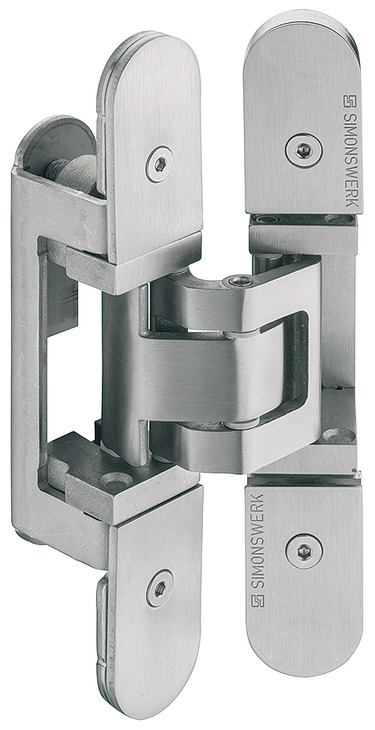

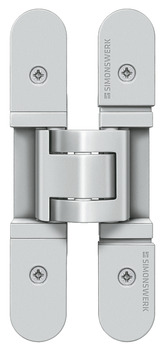

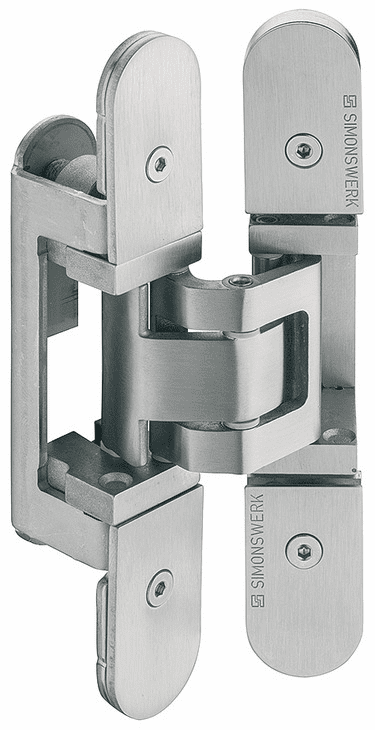

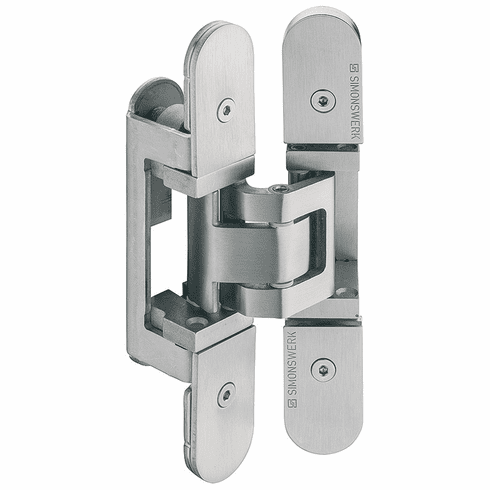

Hafele 924.16.803 Concealed Hinge, Simonswerk TECTUS TE 526 3D, concealed, for flush doors up to 100 kg 3D adjustable, size 155 mm, Stainless Steel Matt

Product Information

• Description

  Manufacturer: Hafele
  Item: 924.16.803

  Product Title: Concealed Hinge, Simonswerk TECTUS TE 526 and 527 3D, concealed, for flush doors up to 100 kg, 3D adjustable, size 155 mm, Stainless Steel, Satin, TE 526 3D

  Category: Concealed Hinge, Simonswerk TECTUS TE 526 and 527 3D, concealed, for flush doors up to 100 kg, 3D adjustable, size 155 mm

  Item Details …

  - Used in door frames made out of hollow metal or wood in flush interior doors

  - Maintenance-free slide bearings

  - Suitable for left and right hand applications

  - UL listed for 45 minute rated fire doors

  - Mounting : For DIN left and DIN right hand use

  - Flange shape : rounded

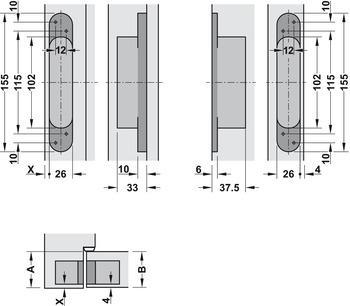

  - Flange width : 26 mm

  - Color/finish : matt

  - Material : Stainless steel

  - Model : TE 526 3D

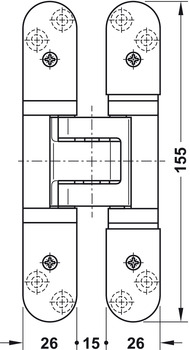

  - Flange height : 155 mm

  - Door weight max. : 264 lbs

  - For door thickness min. : 1 3/8"

  - Model series : TECTUS

  - Area of application : For wooden, steel or aluminium frames, for flush doors

  - For frame type : Steel frame, Wooden frame, Aluminium frame

  - Max. door weight for 2 hinges : 100.00 kg

  - Opening angle : 180.00 °

  - Door thickness : ?35 mm

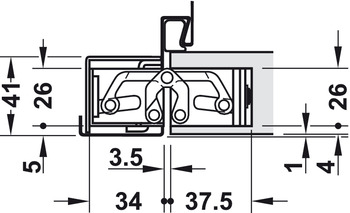

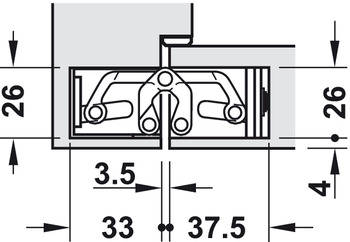

  - Router bit Ø : 24.00 mm

  - Thrust ring Ø : 30.00 mm

  - Bearing type : Friction bearing, maintenance-free

  - Adjustment facility : 3DContinuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm

  - Standard : Certified in compliance with EN 1935:2002

  - Grade : 4|7|6|1|1|4|0|13

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Architectural_Hardware_2022|Page 4.44



• Specifications

  Hafele 924.16.803, 924-16-803, 92416803, 924.16


  Specifications/Hafele Catalog - Page# AH5.16: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Door Hinges Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Mounting Plate, for Simonswerk TECTUS TE 240/340/526/540/640 3D FZ concealed mortice hinge
  • Receiving Elements, for Simonswerk TECTUS TE 240/340/525/526/540/541/640/645 3D (A8) SZ (SZ/1) concealed mortice hinge
  • Drilling Jig, for TECTUS TE 526/527 3D
  • Routing Template, for Tectus TE
