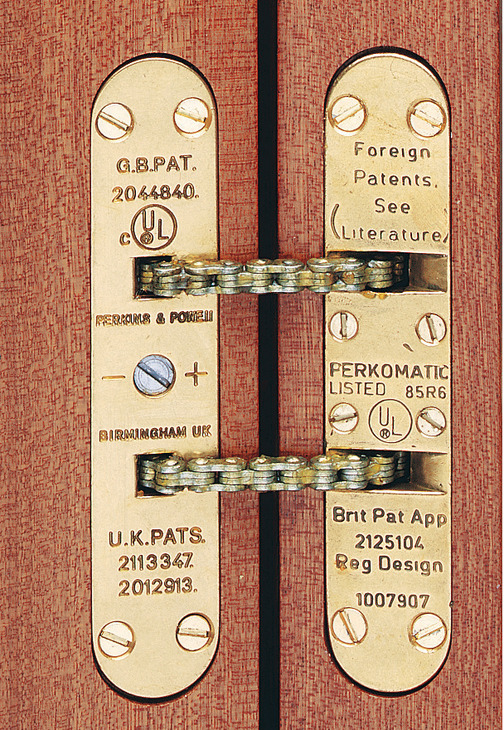

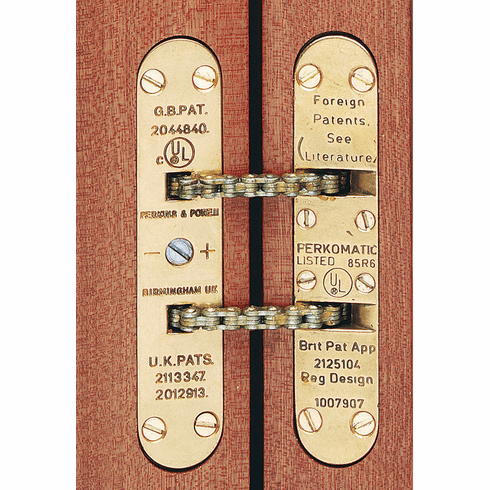

Hafele 931.90.408 Concealed Jamb Door Closer, Perkomatic R85 For door weights up to 165 Lbs., Polished

Product Information

• Description

  Manufacturer: Hafele
  Item: 931.90.408

  Product Title: Concealed Jamb Door Closer, Perkomatic R85, For door weights up to 165 Lbs., Polished

  Category: Concealed Jamb Door Closer, Perkomatic R85, For door weights up to 165 Lbs.

  Item Details …

  - Closer cannot be used on doors hung on, projecting, rising or falling butt hinges.

  - Designed and tested to 500,000 cycles

  - Suitable for fire-rated doors

  - UL and CUL approved, listing mark 85R6

  - Factory-set smooth controlled rate of closure

  - Precision-engineered chain ensures smooth and lasting service

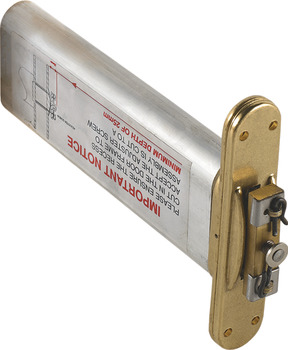

  - Mechanism housed in a light-weight aluminum casing

  - Door weight max. : 165 lbs

  - For door thickness min. : 1 1/2"

  - Forend material : Brass

  - For door height : ?2,100 mm

  - For door width : ?850 mm

  - For door weight : ?75 kg

  - For door thickness : 40?–?44 mm

  - Opening angle : ?180 °

  - Mounting : DIN left/right

  - Supplied with:

  - Mounting screws


  Additional Information …

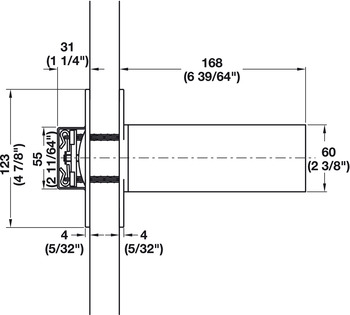

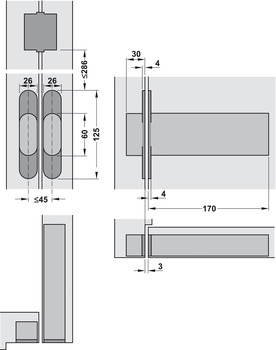

  concealed installation on pull side with max. 300 mm distance from door hinge.Besides the standard installation in the door leaf, installation of the door closer unit in the door frame or wall is also possible.A door stop must be installed at the maximum door opening angle.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Classification Key Door Closer English Version

  TCH_Architectural_Hardware_2022|Page 4.70



• Specifications

  Hafele 931.90.408, 931-90-408, 93190408, 931.90


  Specifications/Hafele Catalog - Page# AH5.26: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Door Hinges Catalog Return to: All Hafele Catalogs
