Hafele 931.90.414 Concealed Jamb Door Closer, Perko R1 For door weights up to 112 Lbs., Satin chrome

Product Information

• Description

  Manufacturer: Hafele
  Item: 931.90.414

  Product Title: Concealed Jamb Door Closer, Perko R1, For door weights up to 112 Lbs., Satin chrome

  Category: Concealed Jamb Door Closer, Perko R1, For door weights up to 112 Lbs.

  Item Details …

  - Precision-engineered chain

  - Tested up to 500,000 cycles

  - Suitable for fire-rated doors

  - UL approved

  - Listing mark 85R6

  - Door weight max. : 112 lbs

  - For door thickness min. : 1 1/2"

  - Forend material : Brass

  - For door height : ?2,100 mm

  - For door width : ?850 mm

  - For door weight : ?50 kg

  - For door thickness : 35?–?40 mm

  - Opening angle : ?180 °

  - Mounting : DIN left/right

  - Supplied with:

  - Mounting screws

  - Mounting instructions


  Additional Information …

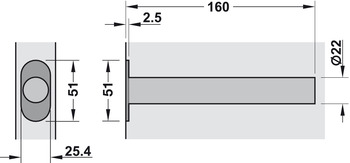

  Concealed installation on pull side.Besides the normal fixing in the door leaf, installation of the closing mechanism in the door frame or wall also possible.A door stop must be installed at the maximum door opening angle.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Perko Door Closer Instructions

  Classification Key Door Closer English Version



• Specifications

  Hafele 931.90.414, 931-90-414, 93190414, 931.90


  Specifications/Hafele Catalog - Page# AH5.26: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Door Hinges Catalog Return to: All Hafele Catalogs
