Hafele 940.41.006 Sliding Door Hardware, Hawa Junior 40/Z, set HAWA, With 1 track buffer/1 wall buffer

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.41.006

  Product Title: Sliding Door Hardware, Hawa Junior 40 Z, Set, HAWA, With 2 track stoppers

  Category: Sliding Door Hardware, Hawa Junior 40 Z, Set, HAWA, With 2 track stoppers

  Item Details …

  - For 2 bi-parting sliding doors, please order 2 sets

  - • Smooth quiet operation

  - • Outstanding durability

  - • Rattle-free bottom guide

  - • Simple installation

  - • Special two-way suspension

  - Number of doors per system max. : 1 to 2

  - Number of doors : 1.00

  - For door material : wood

  - Model : 40 Z

  - For door weight : ?40 kg

  - For door width : ?3,000 mm

  - Controller installation options : Ceiling installation, Wall mounting

  - For door thickness : 35?–?80 mm

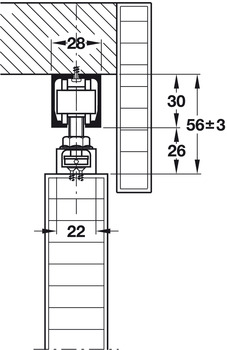

  - Adjustment facility : Height adjustment: ±3 mm, Vertically and laterally adjustableDoor stop with adjustable retention spring

  - For door thickness min. : 7/8"

  - Load bearing capacity : 88 lbs.

  - Area of application : For 1 and 2 sliding wood doors

  - For door height : ?4,000 mm

  - Running position : Top

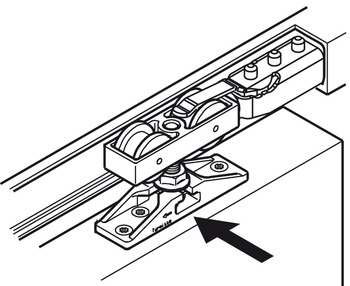

  - Installation : Suspension with screwed on two-way suspension

  - Door processing : for screw fixing

  - Standard : Certified in compliance with EN 1527:2013

  - Classification in compliance with EN 1527 : -|6|1|-|1|0|-|1|3

  - Order reference

  - Order 2 sets for 2-leaf sliding doors.

  - Supplied with:

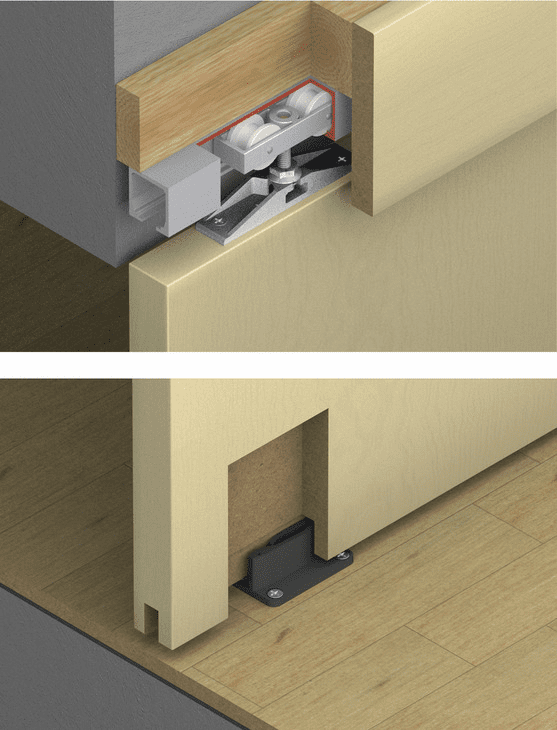

  - 2 Running gears

  - 2 Suspension plates incl. suspension M8 bolts, set nuts and mounting screws

  - 1 Track stopper with retaining spring

  - 1 Wall buffer

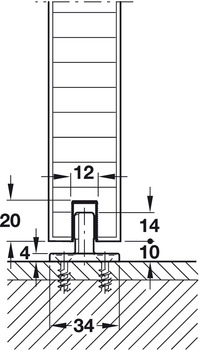

  - 1 Rattle-free floor guide

  - 1 Height adjusting pin

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions

  TCH_Architectural_Hardware_2022|Page 1.77



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Upper Track, HAWA Junior 40 (choose one):


  • Pre-drilled, Length: (4' 7 1/8") 1.4 m Pre-drilled, Length: (5' 3") 1.6 m Pre-drilled, Length: (5' 10 7/8") 1.8 m Pre-drilled, Length: (6' 6 3/4") 2 m Pre-drilled, Length: (9' 10 1/8") 3 m Pre-drilled, Length: (13' 1 1/2") 4 m Pre-drilled, Length: (19' 8 1/4") 6 m Pre-drilled, Length: (8' 2 7/16") 2.5 m

    940.40.140 940.40.160 940.40.180 940.40.200 940.40.300 940.40.400 940.40.600 940.80.633

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Guide Rail, 20 x 12 (13/16" x 1/2"), Glue-in (choose one):


  • for Hawa Junior, Symmetric, Telescopic, Ordena, (4' 3 1/8") 1.3 m

    940.41.130

    Click to order



  Optional Accessories:



  • Soft and Self Closing Mechanism, SoftMove 40 for Hawa Junior 40
  • Track Stopper, with adjustable retention spring
  • Bar Bolt Lock, Hawa Doorfix
  • Sealing Profile, Drilled
  • Track fixing block, For Hawa Junior 80 wall pocket solution
