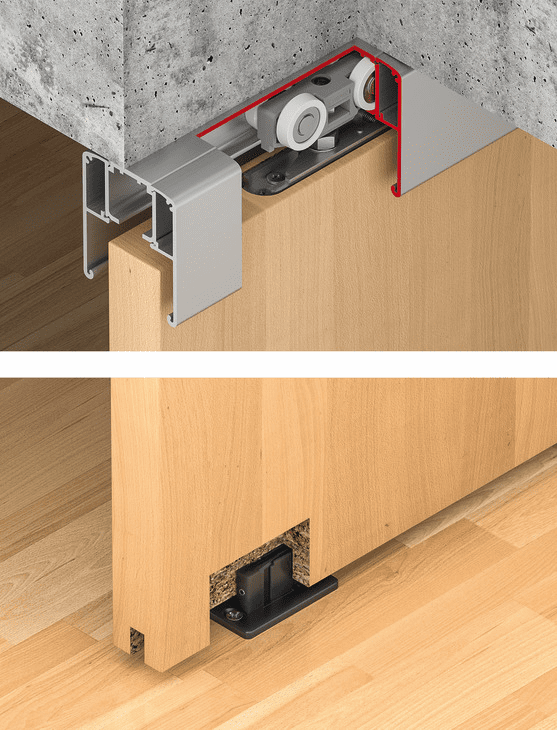

Hafele 940.42.078 Slido D-Line11 50C Fitting Set, with 1 shock absorber and 1 soft closing mechanism (1 kit), 94042078, 940-42-078Zoom

Hafele 940.42.078 Slido D-Line11 50C Fitting Set, with 1 shock absorber and 1 soft closing mechanism

$197.07$246.34You Save: $49.27 (20%)
Item# Hafele-940.42.078
Availability: in stock (5 or less, Next ETA: 12/31/24)

Product Information

  • Description

    Manufacturer: Hafele
    Item: 940.42.078

    Product Title: Sliding Door Hardware, Slido D-Line11 50C, set without running track, For door weight up to 50 kg, With soft and self closing mechanism on one side, Door width ?558 mm

    Category: Sliding Door Hardware, Slido D-Line11 50C to 120C, set without running track, for 1-leaf and 4-leaf wooden and sliding frame doors, ceiling installation and wall mounting, door height adjustable

    Item Details …

    -     Soft and self closing mechanism:

    - low opening force – easy and convenient operation

    - tested with increased closing speed up to 0.5 m/s

    - Can be retrofitted or replaced at any time

    - Accessibility: Opening force with door weight 50 kg: 18 N / 80 kg: 21 N

    - Shock absorber:

    - Closing speed with shock absorber tested up to 0.4 m/s

    - Number of doors per system max. : 1 to 4

    - Number of doors : 1.00

    - Version :

    - Controller installation options : Ceiling installation, Wall mounting

    - For glass thickness with tempered safety glass : 6 mm, 8 mm, 5 mm

    - For glass thickness with laminated glass : 6-8.7 mm

    - For door thickness : 28?–?45 mm

    - Adjustment facility : Height adjustment: ±3 mm, Height: (1/8") +/-3

    - Area of application : For wooden and frame doorsfor 1-leaf to 4-leaf sliding doors

    - Note on door width : 1,500 mm for frame doors

    - Note on door height : 3,000 mm for frame doors

    - Running position : Top

    - Installation : Suspension with integrated flange clip (without tools)

    - Door processing : With recess

    - Supplied with:

    - 2 running gears (1 with soft and self closing mechanism)

    - 1 clear threshold floor guide

    - 1 shock absorber with retaining spring

    - 1 release device with stopper for soft and self closing mechanism


    Additional Information …

    Please note when using shock absorber with retaining spring: The door may not close completely if the closing speed is too low, if it is too high, the door may bounce back slightly.If required, the sets can be retrofitted without or with soft and self closing mechanism on one side, with soft and self closing mechanism or shock absorber.



    Please note when using the shock absorber with retaining spring: The door may not close completely if the closing speed is too low, it it is too high, the door may bounce back slightly.Sets without or with soft and self closing mechanism can be retroffitted with soft and self closing mechanism or shock absorber, if required.

  • Data Sheet

  • Product Resources

  • Required Products & Optional Accessories

    Note: Add the current product in cart before ordering required products below ...

    Required Products:

    Single Running Track, Pre-drilled, W x H: 31 x 33 mm (choose one):
    • For Slido D-Line11, Mill Finish, Length: 6’ 6 3/4” (2 m)
      For Slido D-Line11, Clear Anodized Finish, Length: 6' 6 3/4" (2 m)
      For Slido D-Line11, Mill Finsh, Length: 9’ 10 1/8” (3 m )
      For Slido D-Line11, Clear Anodized Finish, Length: 9' 10 1/8" (3 m)
      For Slido D-Line11, Mill Finish, Length: (19’ 8 1/4”) 6 m
      For Slido D-Line11, Clear Anodized Finish, Length: 19' 8 1/4" (6 m)      		940.43.921
      940.43.922
      940.43.931
      940.43.932
      940.43.961
      940.43.962      		Click to order
      Click to order
      Click to order
      Click to order
      Click to order
      Click to order


    Single Upper Track, Wall mounted (choose one):
    • For Slido D-Line11, Aluminum, clear anodized, length 2000 mm
      For Slido D-Line11, Aluminum, clear anodized, length 3000 mm
      For Slido D-Line11, Aluminum, clear anodized, length 6000 mm      		941.25.602
      941.25.603
      941.25.606      		Click to order
      Click to order
      Click to order


    Mounting rail, Pre-drilled, width 19 mm (choose one):
    • For Slido D-Line11, aluminum, bright, length: 2,000 mm
      For Slido D-Line11, aluminum, bright, length: 3,000 mm
      For Slido D-Line11, aluminum, bright, length: 6,000 mm      		941.25.821
      941.25.831
      941.25.861      		Click to order
      Click to order
      Click to order


    Mounting rail, pre-drilled, width 8 mm (choose one):
    • For Slido D-Line11, aluminum, silver colored anodized, length: 2,000 mm
      For Slido D-Line11, aluminum, silver colored anodized, length: 3,000 mm
      For Slido D-Line11, aluminum, silver colored anodized, length: 6,000 mm      		941.25.820
      941.25.830
      941.25.860      		Click to order
      Click to order
      Click to order


    Double running track, Pre-drilled, W x H: 70 x 33 mm (choose one):
    • For Slido D-Line11, Aluminum, silver colored anodized, length: 2,000 mm
      For Slido D-Line11, Aluminum, silver colored anodized, length: 3,000 mm
      For Slido D-Line11, Aluminum, silver colored anodized, length: 6,000 mm      		941.02.920
      941.02.930
      941.02.960      		Click to order
      Click to order
      Click to order


    Optional Accessories:

    • Soft and Self Closing Mechanism, Slido Classic
    • Shock absorber, Slido Classic
    • Clip-on panel, For running track, for integration in suspended ceilings
    • Floor Guide, Slido Classic 40-P-120-P
    • Safety Pin and Safety Screw Set, For Running Track and Mounting Rail
    • Wrench, for Height Adjustment
    • Track Stopper, Slido D-Line11 additional set for 50P-120P, 50C-120C, 50I-120I
