Hafele 940.59.008 Sliding Door Hardware, Slido Design 80-M, set with running track for 1 door for 1-leaf wooden sliding doors, wall installation, concealed running system, for door weights up to 80 kg, length 1,100 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.59.008

  Product Title: Sliding Door Hardware, Slido D-Line43 80M, set with running track for 1 door leaf, for 1-leaf wooden sliding doors, wall installation, concealed running system, for door weights up to 80 kg, length 1,100 mm

  Category: Sliding Door Hardware, Slido D-Line43 80M, set with running track for 1 door leaf, for 1-leaf wooden sliding doors, wall installation, concealed running system, for door weights up to 80 kg

  Item Details …

  - Floor must be flat

  - Number of doors per system max. : 1

  - Number of doors : 1.00

  - Model : 80-M

  - Running gear version : invisible running equipment integrated in door

  - For door weight : ?80 kg

  - Material/finish : anodized

  - Controller installation options : Wall mounting

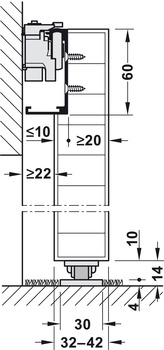

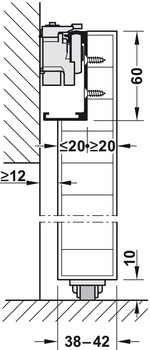

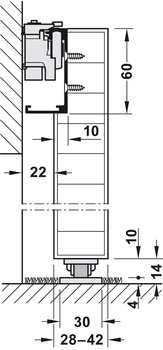

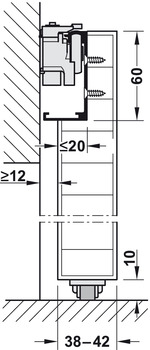

  - For door thickness : 35?–?42 mm

  - Adjustment facility : Distance door to wall +4 mm (adjustment on both sides, for compensating uneven walls)height ±2 mm

  - Door weight max. : 176 lbs.

  - Door width max. : 31 1/2 - 70 7/8"

  - Area of application : For 1 doors

  - Suitable for : Hard floors (laminate, PVC, tiles) and soft floors (carpet, cork - use only with floor rail), Private living area

  - Running position : Top

  - Installation reference : Ensure that the floor is levelBottom track is required for soft floorsPrepare wall structure for top roller

  - Door processing : With recess, for screw fixing

  - Supplied with:

  - 1 running track

  - 1 running gear

  - 2 Soft and self closing mechanisms

  - 1 guide track

  - 1 floor guide

  - 1 set of guide rollers

  - 1 set of end caps (1 pair black, 1 pair silver colored)

  - 2 spacers

  - 1 floor mounted door stop (for optional use)

  - 2 hex keys

  - 1 open-ended spanner


  Additional Information …

  A slight trace of wear may appear on the floor, depending on material.Tile gaps are noticeable when moving the door.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for Slido D-Line43 80M

  TCH_Architectural_Hardware_2022|Page 1.13



• Required Products & Optional Accessories

  Optional Accessories:



  • Bottom track, for soft floors
