Hafele 940.59.017 Slido D-Line43 80N Fitting Set, with silver anodized aluminum frame, 2 soft closing mechanisms, for door width of 1.5 meter

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.59.017

  Product Title: Sliding door fitting, Slido D-Line43 80N, frame door for glass and wooden panel, Set with aluminium frame and running track for 1 door leaf, Silver coloured anodized, door width: 1,500 mm

  Category: Sliding door fitting, Slido D-Line43 80N, frame door for glass and wooden panel, Set with aluminium frame and running track for 1 door leaf

  Item Details …

  - Aluminium frame:

  - Can be shortened as required

  - optionally available in silver coloured and black anodized

  - Number of doors per system max. : 1

  - Number of doors : 1.00

  - For door material : wood, glass, frame doors

  - Model : 80N

  - Version : Invisible running equipment integrated in door

  - Soft closing mechanism : with soft and self closing mechanism

  - For door weight : ?80 kg

  - Controller installation options : Wall mounting

  - For glass thickness with tempered safety glass : 6 mm, 8 mm, 5 mm

  - For glass thickness with laminated glass : 6-8.7 mm

  - Adjustment facility : Height adjustment: ±2 mm, Distance door to wall +4 mm (adjustment on both sides, for compensating uneven walls)height ±2 mm

  - Area of application : For private residential areasFor 1-leaf sliding doorsfor hard floors (laminate, PVC, tiles) and soft floors (carpet, cork – only for use in combination with bottom track)

  - For door height : ?2,600 mm

  - For glass type : Tempered safety glass, Laminated glass

  - Installation reference : Ensure that the floor is levelBottom track is required for soft floorsPrepare wall structure for top roller

  - Supplied with:

  - 1 set of aluminium frames with attaching parts

  - 1 set of panel sealing profiles

  - 1 running track

  - 1 running gear

  - 2 soft and self closing mechanisms

  - 1 guide track

  - 1 floor guide

  - 1 set of guide rollers

  - 2 spacers

  - 1 pair of end caps

  - 1 floor mounted door stop (for optional use)

  - 2 Allen key

  - 1 open-ended spanner


  Additional Information …

  A slight trace of wear may appear on the floor, depending on material.Tile gaps are noticeable when moving the door.Floor must be flat.Frame can be shortened to required height and width.Flexible sealing profile for panel thickness 5–8 mm.



  A slight trace of wear may appear on the floor, depending on material.Tile gaps are noticeable when moving the door.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for Slido D-Line43 80N

  TCH_Architectural_Hardware_2022|Page 1.239



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

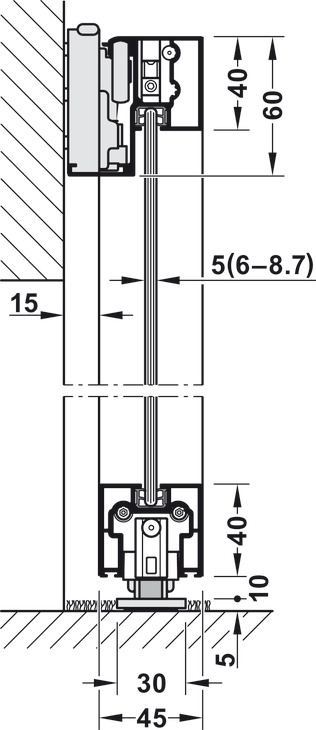

  Bottom track, for soft floors (choose one):


  • Slido Design 80-M, Silver colored anodized, length: 2,200 mm Slido Design 80-M, Silver colored anodized, length: 3,600 mm Slido Design 80-M, Black anodized, length: 2,200 mm Slido Design 80-M, Black anodized, length: 3,600 mm

    940.59.802 940.59.803 940.59.812 940.59.813

    Click to order Click to order Click to order Click to order
