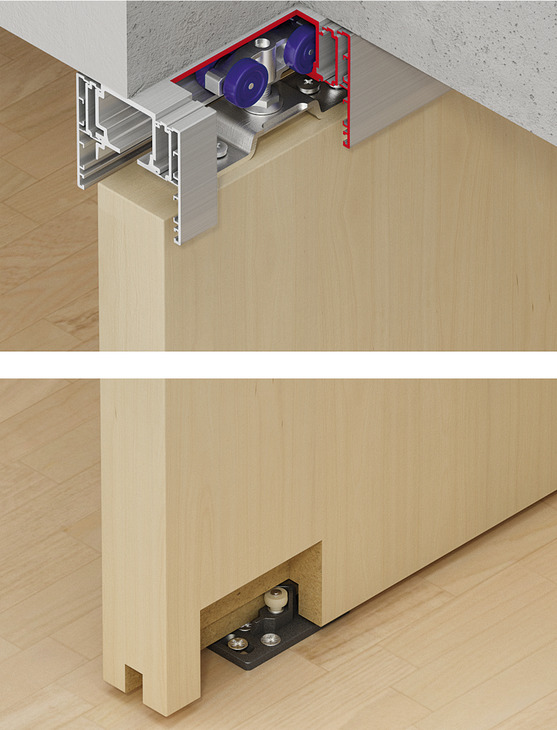

Hafele 940.60.111 Sliding Door Fitting, EKU Porta 60/100 H/HC, set for 1-leaf wooden sliding doors, door weight not more than (132 lbs) 60 kg, without running track

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.60.111

  Product Title: Sliding Door Fitting, Hawa Porta 60/100 H Set, for 1-leaf wooden sliding doors, Door thickness 28 mm, Door weight 60 kg, Silver colored

  Category: Sliding door fitting, HAWA Porta 60/100 H/HC, set, for 1-leaf and 2-leaf wooden sliding doors, wall mounting, soft and self closing mechanism (optional), door height adjustable, for door weight up to 60/100 kg

  Item Details …

  - Number of doors per system max. : 1 to 2

  - Number of doors : 1.00

  - For door material : wood

  - Soft closing mechanism : with soft closing mechanism (optional)

  - For door width : ?1,600 mm

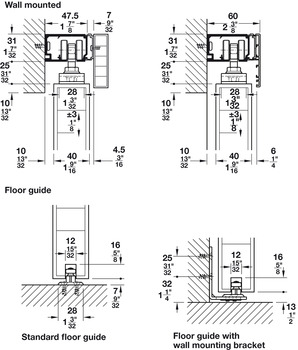

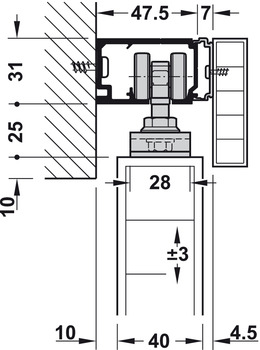

  - Controller installation options : Wall mounting

  - For door thickness : 28?–?40 mm

  - Adjustment facility : Height adjustment: ±3 mm

  - For door thickness min. : 1 1/8"

  - Door width max. : ? 5' 3"

  - Area of application : For 1 doors

  - For door height : ?2,700 mm

  - Running position : Top

  - Door processing : for screw fixing

  - Order reference

  - Please order 2 sets for 2-leaf sliding doors.

  - Supplied with:

  - 2 running gears with suspension screw and nut, M8

  - 2 support flanges

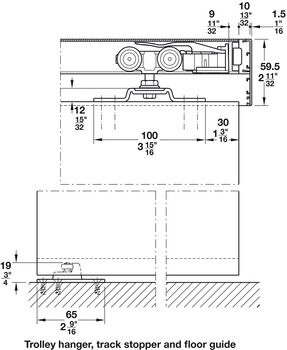

  - 2 track stopper with retaining spring

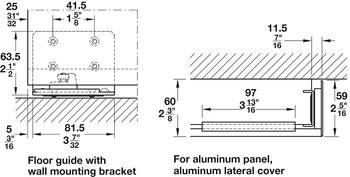

  - 1 floor guide, adjustable

  - 1 set of fixing screws


  Additional Information …

  Dormotion soft and self closing mechanism (optional)

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions

  TCH_Architectural_Hardware_2022|Page 1.51

  TCH_Architectural_Hardware_2022|Page 1.53



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.28-1.29.pdf

  Hafele 940.60.111 EKU Porta 60/H Fitting Set
