Hafele 940.60.117 Sliding Door Hardware, Eku Porta 60/100 HMT, set For 1-leaf wooden sliding doors, ceiling installation, installation in wall pocket, door height adjustable, for door weight up to 60/100 kg, door weight ‰¤60 kg (132 lbs)
, 94060117, 940-60-117 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 940.60.117
Product Title: Sliding Door Hardware, Hawa Porta 60 HMT, For 1-leaf wooden sliding doors, ceiling installation, installation in wall pocket, door height adjustable, for door weight up to 60/100 kg, Without upper track, door weight ?60 kg
Category: Sliding Door Hardware, Hawa Porta 60/100 HMT Pocket, set, For 1-leaf wooden sliding doors, ceiling installation, installation in wall pocket, door height adjustable, for door weight up to 60/100 kg
Item Details …

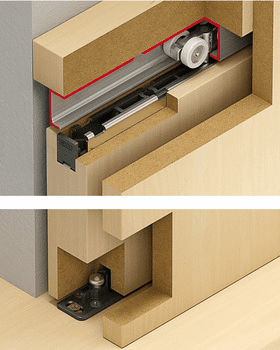

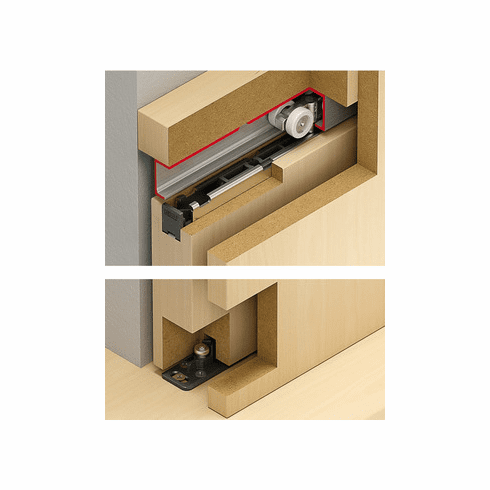

- Pocket door solution for integrated or screwed on ceiling installation
- Solution for suspended ceiling
- Door can be assembled after completion of construction
- Number of doors per system max. : 1
- Number of doors : 1.00
- For door material : wood
- For door width : ?1,600 mm
- Controller installation options : Ceiling installation, Wall mounting
- For door thickness : 30?–?40 mm
- Adjustment facility : Height adjustment: >-3 mm, Door height adjustable 0/–3 mm (0-1/8") or 0/-2 mm (0/-1/16")
- Door width max. : ? 5' 3"
- Area of application : For 1 sliding door, for installation in wall pocket
- Suitable for : Minimum installation height, Wall pocket solution
- For door height : ?2,700 mm
- Running position : Top
- Installation reference : A panel may extend as far as the lower edge of the track for swivelling in and out.
- Door processing : With recess
- Standard : Certified in compliance with EN 1527:1998
- Classification in compliance with EN 1527 : -|6|2|0|-|0|-|1|3
- Supplied with:
- 2 running gears with suspension screw and nut, M8
- 2 support profiles
- 1 cover cap
- 2 track stopper with retaining spring
- 1 floor guide, adjustable
- 1 set of fixing screws
- 1 cylinder screw, M8 x 35 mmData Sheet
