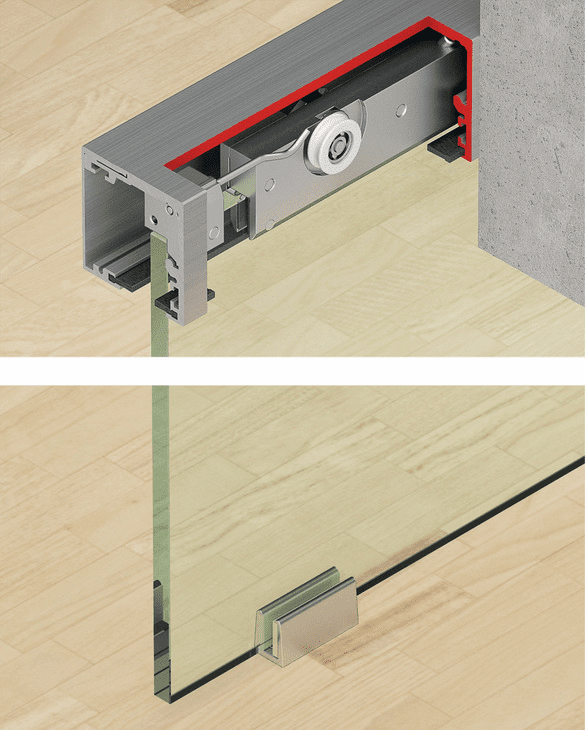

Hafele 940.67.040 Slido D-Line12 120E Fitting Set, for glass doors

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.67.040

  Product Title: Fitting Set, Slido D-Line12 120E, For 1 or 2 sliding glass doors, clear anodized

  Category: Fitting Set, Slido D-Line12 120E, For 1 or 2 sliding glass doors

  Item Details …

  - For door thickness min. : 3/8"

  - For door thickness max. : 17/32"

  - Door weight max. : 264 lbs

  - Door width max. : Min. 19 11/16"

  - Height adjustment : ± 5/64"

  - Area of application : For 1 or 2 sliding glass doorsFor ceiling or wall mounted applications

  - Installation reference : Self-close mechanisms available for doors weighing up to 80 kg (176 lbs.) and 120 kg (264 lbs.)

  - Supplied with:

  - 2 running gears

  - 2 track stops

  - 1 floor guide

  - 8 spacer plates for 12.7 mm (1/2") thick tempered glass

  - 8 spacer plates for 13.5 mm (17/32") laminated glass

  - 1 set installation tools


  Additional Information …

  Self-close mechanisms available for doors weighing up to 80 kg (176 lbs.) and 120 kg (264 lbs.)



  Self-close mechanisms available for doors weighing up to 80 kg (176 lbs.) and 120 kg (264 lbs.)

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Slido Classic F Glass Mounting Instructions

  TCH_Architectural_Hardware_2022|Page 1.249



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Upper Running Track, For Slido D-Line12, Pre-drilled (choose one):


  • Aluminum, Wall mounted, clear anodized, length: 6,000 mm Aluminum, Ceiling mounted, clear anodized, length: 6,000 mm Aluminum, Wall mounted, black anodized, length: 6,000 mm Aluminum, Ceiling mounted, black anodized, length: 6,000 mm Aluminum, Wall mounted, clear anodized, length: 2,000 mm Aluminum, Wall mounted, clear anodized, length: 3,000 mm Aluminum, Wall mounted, black anodized, length: 3,000 mm Aluminum, Ceiling mounted, clear anodized, length: 2,000 mm

    940.67.670 940.67.672 940.67.673 940.67.675 940.67.677 940.67.678 940.67.680 940.67.681

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Clip-on Fascia, to Upper Tracks
  • Track End Cap Set, Plastic
  • Track Seal, Black, Rubber
  • Self-Closing Mechanism, for Glass Doors
  • Spacer Plate Set, Plastic
