Hafele 940.80.004 Sliding Door Hardware, HAWA Junior 80/B, set M10 bolt

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.80.004

  Product Title: Sliding Door Hardware, HAWA Junior 80/B, set, for 1-leaf and 2-leaf wooden sliding doors, ceiling installation, height adjustable, min. installation height, for door weight up to 80 kg, M10 bolt

  Category: Sliding Door Hardware, HAWA Junior 80/B, set, for 1-leaf and 2-leaf wooden sliding doors, ceiling installation, height adjustable, min. installation height, for door weight up to 80 kg

  Item Details …

  - For low headroom applications, gap between the door and upper track can be as small as 1 mm (1/32”)

  - Set with 20 mm (25/32”) longer suspension bolt available which allows up to 22 mm (7/8”) thick ceiling tiles to overlap the upper track

  - Height adjustable: +/- 7 mm (9/32”)

  - Coarse adjustment +/- 3 mm (1/8”)

  - Fine adjustment +/- 4 mm (5/32”)

  - Track stopper with adjustable retention spring

  - min. installation height

  - Number of doors per system max. : 1 to 2

  - Number of doors : 1.00

  - For door material : wood

  - Soft closing mechanism : without soft and self closing mechanism, with track buffers on both sides

  - For door weight : ?80 kg

  - For door width : ?3,000 mm

  - Controller installation options : Ceiling installation, Wall mounting, Integrated ceiling installation

  - For door thickness : 35?–?80 mm

  - Adjustment facility : Height adjustment: ±3 mm, Height ±4 mmtrack buffer with adjustable retaining spring and cover cap

  - For door thickness min. : 1 3/16"

  - Door weight max. : 176 lbs.

  - Area of application : For 1 and 2 sliding wood doors

  - Suitable for : Minimum installation height

  - For door height : ?4,000 mm

  - Running position : Top

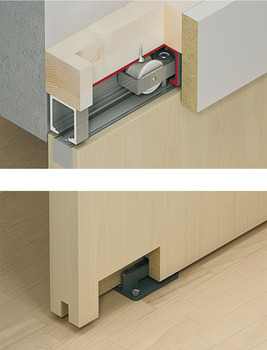

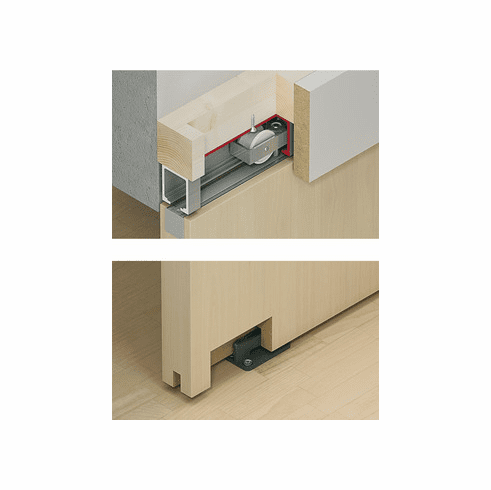

  - Installation : Suspension with recessed support profile and installation-friendly suspension carriage with integrated metal cover cap

  - Door processing : With recess

  - Standard : Certified in compliance with EN 1527:2013

  - Classification in compliance with EN 1527 : -|6|2|-|1|0|-|1|3

  - Order reference

  - Order 2 sets for 2-leaf sliding doors.


  Additional Information …

  No end cap is available for ceiling installation with fascia on both sides.A pair of end caps can be attached end to end and glued vertically in the centre of the running track (optional).
