Hafele 940.80.014 Sliding door fitting, Hawa Junior 80/B-Pocket, set for 1-leaf wooden sliding doors, for door weight up to 80 kg, Without running track

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.80.014

  Product Title: Sliding door fitting, Hawa Junior 80/B-Pocket, set, for 1-leaf wooden sliding doors, for door weight up to 80 kg, without running track

  Category: Sliding door fitting, Hawa Junior 80/B-Pocket, set, for 1-leaf wooden sliding doors, for door weight up to 80 kg

  Item Details …

  - min. installation height

  - Number of doors per system max. : 1

  - Number of doors : 1.00

  - For door material : wood

  - Model : 80 B Pocket

  - Soft closing mechanism : without soft and self closing mechanism, with track buffer on one side, with wall buffer on one side

  - For door weight : ?80 kg

  - For door width : ?1,250 mm

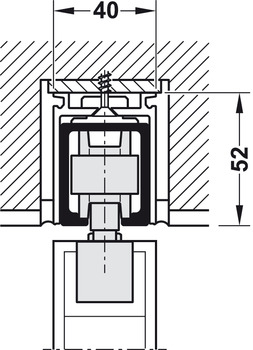

  - Controller installation options : Ceiling installation, Integrated ceiling installation, Wall pocket solution

  - For door thickness : 35?–?80 mm

  - Adjustment facility : Height adjustment: ±3 mm, Door height adjustable +3 mm, with integrated anti-twist protectionhorizontal adjusting distance in lengthways direction in bayonet mount ±8 mm

  - For door thickness max. : 1 3/16"

  - Door weight max. : 176 lbs

  - Door width max. : 27 9/16 - 59 1/16"

  - Load bearing capacity : 176 lbs.

  - Area of application : For 1-leaf and 2-leaf sliding doors

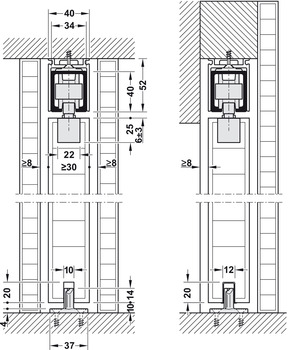

  - Suitable for : Wall pocket solution

  - For door height : ?4,000 mm

  - Running position : Top

  - Functionality : subsequent disassembly of the running track without opening the wall is possible, the running gear and the soft and self closing mechanism can be removed, stopper position can be readjusted in wall pocket

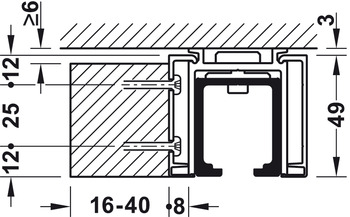

  - Installation : Suspension with recessed support profile and integrated suspension carriage

  - Installation reference : subsequent disassembly of the running track is possible without opening the wall, running gear and soft and self closing mechanism can be removed, stopper position in the wall pocket is readjustable

  - Door processing : With recess

  - Standard : Certified in compliance with EN 1527:2013

  - Classification in compliance with EN 1527 : -|6|2|-|1|0|-|1|3


  Additional Information …

  Hawa-SoftMove 80 soft and self closing mechanismSpring buffer for comfortable ejection of the door (optional)The HAWA-SoftMove 80 soft and self closing mechanism cannot be used in combination with the spring buffer

• Data Sheet

  Detailed Data Sheet

• Product Resources

  80 B / 100 B Pocket installation instructions

  TCH_Architectural_Hardware_2022|Page 1.93
