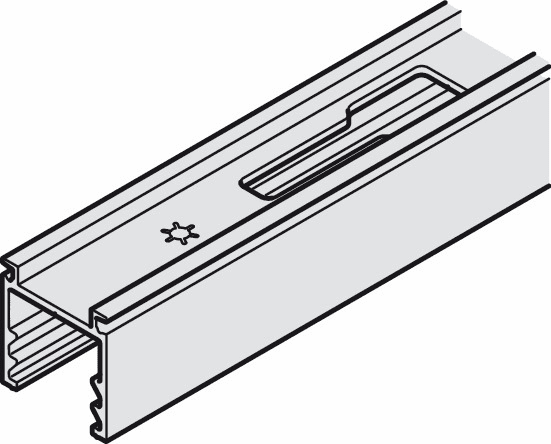

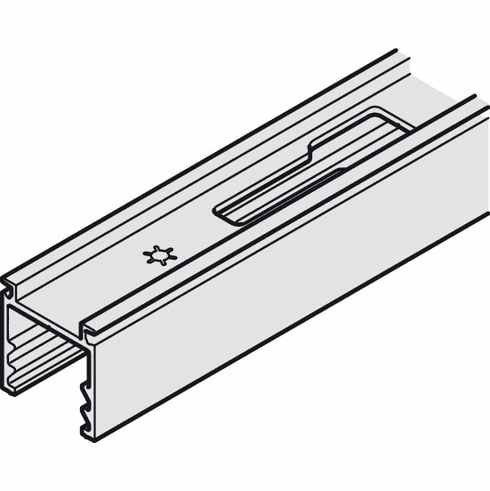

Hafele 940.80.424 Hawa Jr 40 Retainer Profile, with fixing set, aluminum anodized, 2.0 meter

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.80.424

  Product Title: Fixing profile, Junior 40 B Pocket, with bayonet lock, for running track, for pocket door solution with Junior 40 B sliding door fitting, Length: 2000 mm

  Category: ,

  Item Details …

  - Area of application : For 1-leaf sliding doors for wall pocket installation

  - Version : with bayonet lockCan be cut to size

  - Suitable for : Hawa Junior 40 B Pocket

  - Material : Aluminum

  - Installation : Suspension with support profile and integrated suspension carriage

  - Order reference

  - Please order Hawa Junior 40 B sliding door fitting separately.


  Additional Information …

  A second track buffer is required when the soft and self closing mechanism is not being used.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Architectural_Hardware_2022|Page 1.81



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Sliding Door Hardware, Hawa Junior 40/B, set
  • Upper Track, HAWA Junior 40
  • Guide Rail, 20 x 12 (13/16" x 1/2"), Glue-in
  • Track Stopper, with adjustable retention spring
