Hafele 940.81.006 Sliding Door Hardware, Hawa Junior 80/GP, set HAWA Junior 80/GP
, 94081006, 940-81-006 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 940.81.006
Product Title: Sliding Door Hardware, Hawa Junior 80/GP, set, Top Hung System, without running track, floor guide and cover caps, for glass thickness tempered safety glass: 8, 10, 12 and 12.7 mm, laminated glass: 8.7-12.7 mm
Category: Sliding Door Hardware, Hawa Junior 80/GP, set, Top Hung System, without running track, floor guide and cover caps, for glass thickness tempered safety glass: 8, 10, 12 and 12.7 mm, laminated glass: 8.7-12.7 mm
Item Details …
- Smooth, quiet operation
- Maintenance-free
- Vertical adjustment without removing the glass door
- Rattle-free bottom guide
- Simple installation
- Low installation height
- Model series : Junior
- Model : 80 GP without soft and self closing mechanism, with track buffer on both sides
- Version : without running track, without floor guide, without cover caps
- Soft closing mechanism : with track buffers on both sides
- For door weight : ?80 kg
- For door width : ?3,000 mm
- For door material : glass
- Controller installation options : Ceiling installation

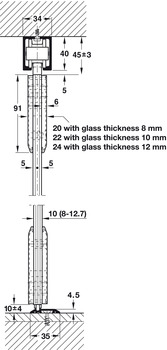

- For glass thickness with tempered safety glass : 8 mm, 10 mm, 12 mm, 12.7 mm
- For glass thickness with laminated glass : 8,7–12,7 mm
- Adjustment facility : Vertical adjustment without removing the glass door
- Number of doors : 1.00
- For door thickness max. : 1 3/16"
- For min. glass thickness (inches) : Tempered glass: 5/16" - 1/2", laminated glass: 5/16" - 1/2"
- Load bearing capacity : 176 lbs.
- Area of application : for 1-leaf and 2-leaf sliding doors
- For door height : ?4,000 mm
- For glass type : Tempered safety glass, Laminated glass

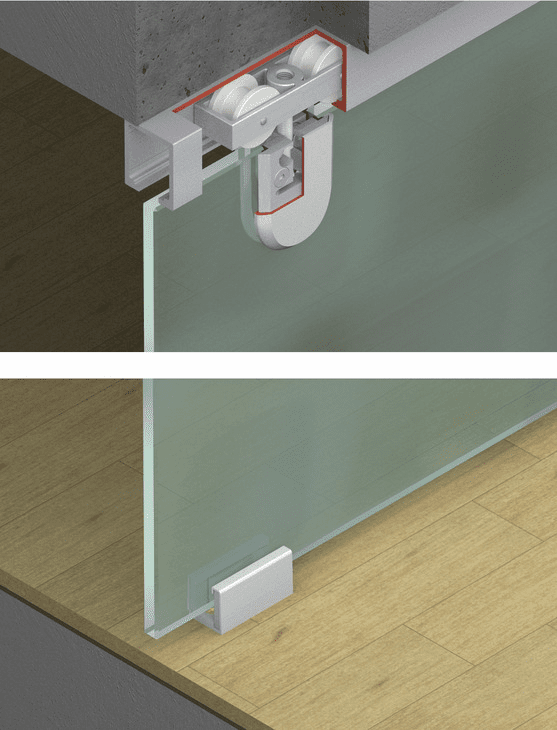

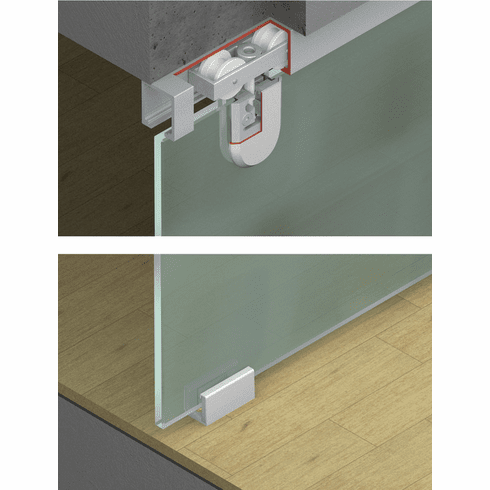

- Running position : Top
- Installation : Suspension with hanger bolt, Point fixing with glass retainer

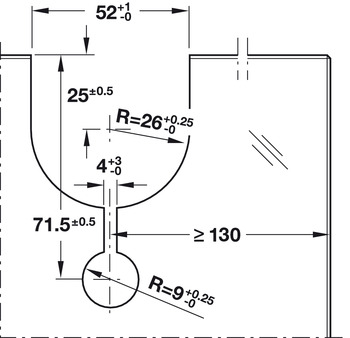

- Door processing : With glass preparation
- Standard : Certified in compliance with EN 1527:2013
- Classification in compliance with EN 1527 : -|6|2|-|1|0|-|1|3
- Number of doors per system max. : 1 to 2
- Order reference

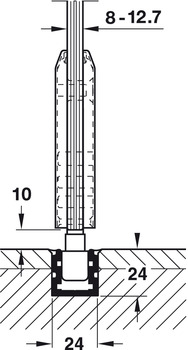

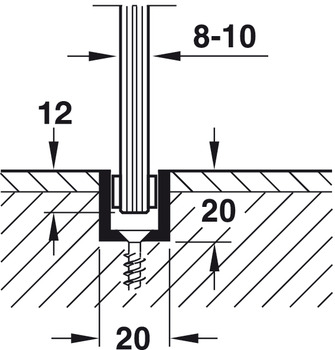

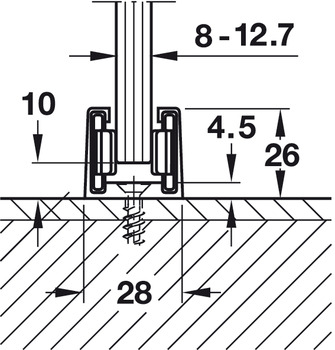

- Please order floor guide separately.
- Supplied with:
- 2 Running gears
- 2 hanger bolts
- 2 point fixing sets
- 1 track stoopper
- 1 disposable drilling jig
- 1 rubber wall buffer
- 1 height adjusting pin
Additional Information …
The complete fitting set is always delivered without running and guide rails, please order separately.Data Sheet
