Hafele 940.84.007 Sliding door fitting, Hawa Junior 80/G, set without running track

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.84.007

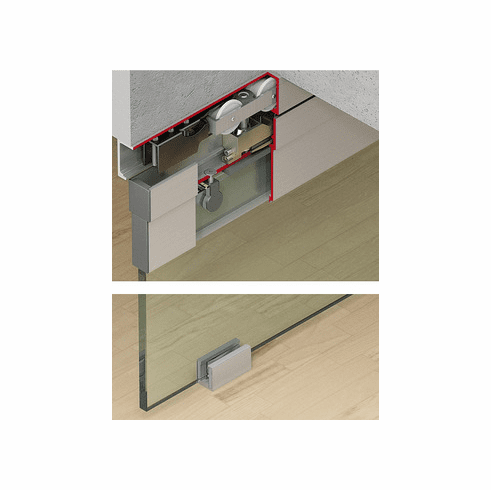

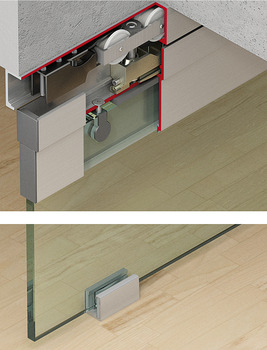

  Product Title: Sliding door fitting, HAWA Junior 80 G, set, For 1-leaf and 2-leaf glass sliding doors, ceiling installation, soft and self closing mechanism, height adjustable, for door weights up to 80 kg, without running track

  Category: Sliding door fitting, HAWA Junior 80 G, set, For 1-leaf and 2-leaf glass sliding doors, ceiling installation, soft and self closing mechanism, height adjustable, for door weights up to 80 kg, without running track

  Item Details …

  - Smooth quiet operation

  - Maintenance free

  - Simple installation

  - Vertical adjustment without removing the glass door

  - Elegant design of continuous top and bottom glass suspension profile

  - Model series : Junior

  - Model : 80 G without soft and self closing mechanism with track buffer on both sides

  - Version : Without running track

  - Soft closing mechanism : with soft closing mechanism (optional)

  - For door weight : ?80 kg

  - For door width : ?3,000 mm

  - For door material : glass

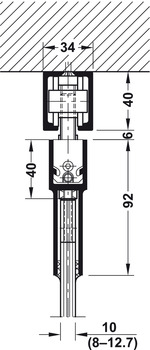

  - Controller installation options : Ceiling installation

  - For glass thickness with tempered safety glass : 8–16 mm

  - Adjustment facility : Door height adjustable

  - Number of doors : 1.00

  - For min. glass thickness (inches) : 13/32, 15/32 and 1/2"

  - Load bearing capacity : 176 lbs.

  - Area of application : For 1 doors

  - For door height : ?4,000 mm

  - For glass type : Tempered safety glass

  - Running position : Top

  - Installation : Suspension with form-fitting glass connection with glass holders

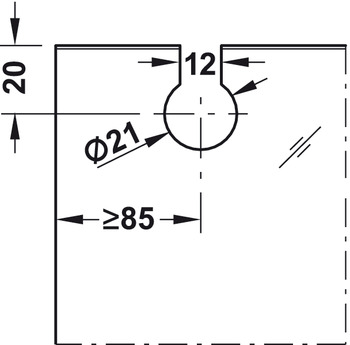

  - Door processing : With glass preparation

  - Standard : Certified in compliance with EN 1527:2013

  - Classification in compliance with EN 1527 : -|6|2|-|1|0|-|1|3

  - Number of doors per system max. : 1 to 2

  - Order reference

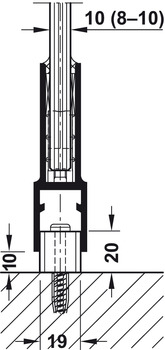

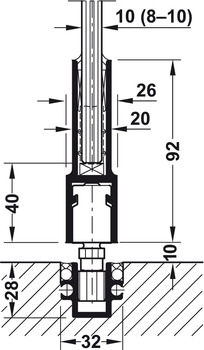

  - Floor guide, please order separately.

  - Supplied with:

  - 2 Running gears

  - 2 suspension carriages

  - 2 track buffers

  - 2 cover caps

  - 1 rubber wall buffer

  - 1 locking wrench
