Hafele 941.00.117 EKU-Porta 100 HMT Fitting Set (1 kit), 94100117, 941-00-117Zoom

Hafele 941.00.117 Sliding Door Hardware, Eku Porta 60/100 HMT, set For 1-leaf wooden sliding doors, ceiling installation, installation in wall pocket, door height adjustable, for door weight up to 60/100 kg, door weight: ‰¤100 kg (220 lbs)

$252.03$315.04You Save: $63.01 (20%)
Item# Hafele-941.00.117
Availability: in stock (78 or less, Next ETA: 12/31/24)

Product Information

  • Description

    Manufacturer: Hafele
    Item: 941.00.117

    Product Title: Sliding Door Hardware, Hawa Porta 100 HMT, For 1-leaf wooden sliding doors, ceiling installation, installation in wall pocket, door height adjustable, for door weight up to 60/100 kg, Without upper track, door weight ?100 kg

    Category: Sliding Door Hardware, Hawa Porta 60/100 HMT Pocket, set, For 1-leaf wooden sliding doors, ceiling installation, installation in wall pocket, door height adjustable, for door weight up to 60/100 kg

    Item Details …

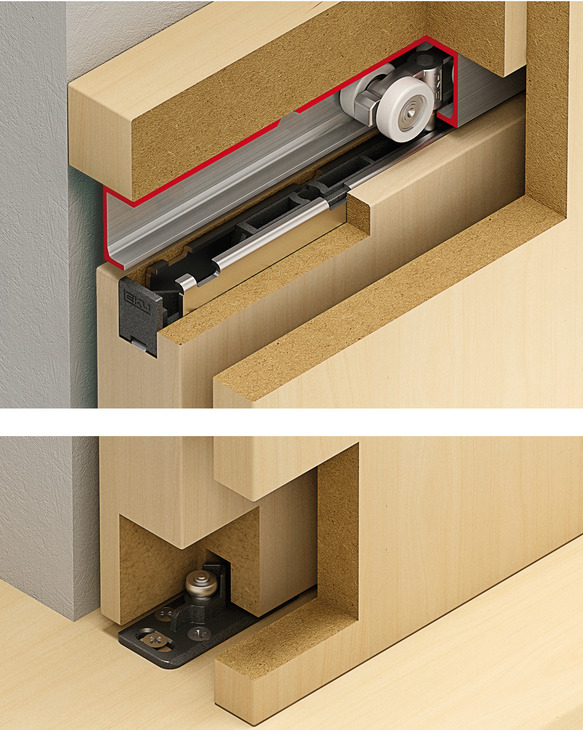

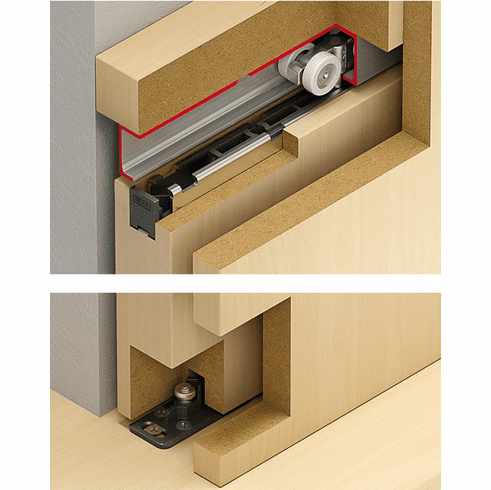

    -     Pocket door solution for integrated or screwed on ceiling installation

    - Solution for suspended ceiling

    - Door can be assembled after completion of construction

    - Number of doors per system max. : 1

    - Number of doors : 1.00

    - For door material : wood

    - For door width : ?1,600 mm

    - Controller installation options : Ceiling installation, Wall mounting

    - For door thickness : 30?–?40 mm

    - Adjustment facility : Height adjustment: >-3 mm, Door height adjustable 0/–3 mm (0-1/8") or 0/-2 mm (0/-1/16")

    - Door width max. : ? 5' 3"

    - Area of application : For 1 sliding door, for installation in wall pocket

    - Suitable for : Minimum installation height, Wall pocket solution

    - For door height : ?2,700 mm

    - Running position : Top

    - Installation reference : A panel may extend as far as the lower edge of the track for swivelling in and out.

    - Door processing : With recess

    - Standard : Certified in compliance with EN 1527:1998

    - Classification in compliance with EN 1527 : -|6|2|0|-|0|-|1|3

    - Supplied with:

    - 2 running gears with suspension screw and nut, M8

    - 2 support profiles

    - 1 cover cap

    - 2 track stopper with retaining spring

    - 1 floor guide, adjustable

    - 1 set of fixing screws

    - 1 cylinder screw, M8 x 35 mm

  • Data Sheet

  • Product Resources

  • Specifications

    For detailed PDF specifications, click:
    Hafele Sliding Door Catalog Page: selection_1.38-1.39.pdf

    Hafele 941.00.117 EKU-Porta 100 HMT Fitting Set
    • Hardware > Building Materials > Door Hardware
    • Hardware,Hafele,50-500
    • Brand: Hafele
    • Part#: 941.00.117
    • Condition: new

  • Required Products & Optional Accessories

    Note: Add the current product in cart before ordering required products below ...

    Required Products:

    Track set, Hawa Porta Pocket, with running track, pre-drilled (choose one):
    • Aluminium, silver coloured anodized, Length: 2000 mm
      Aluminium, silver coloured anodized, Length: 2500 mm      		941.00.622
      941.00.623      		Click to order
      Click to order


    Upper Track, Pre-drilled, 30 x 31 mm (W x H) (choose one):
    • For Hawa, Length: 2 m (6’ 6 3/4”), mill finish
      For Hawa, Length: 2 m (6’ 6 3/4”), anodized finish
      For Hawa, Length: 2.5 m (8’ 2 7/16”), mill finsh
      For Hawa, Length: 2.5 m (8’ 2 7/16”), anodized finsh
      For Hawa, Length: 6 m (19’ 8 1/4”), mill finish
      For Hawa, Length: 6 m (19’ 8 1/4”), anodized finish      		941.00.200
      941.00.205
      941.00.250
      941.00.255
      941.00.600
      941.00.605      		Click to order
      Click to order
      Click to order
      Click to order
      Click to order
      Click to order


    Running track, with recess for installation opening, pre-drilled, 30 x 31 mm (W x H) (choose one):
    • for Hawa Porta, Aluminium, silver coloured anodized, length: 2500 mm941.00.251Click to order


    Optional Accessories:

    • Running track, Pre-drilled, for ceiling installation
    • Screw set, +15 mm, for Hawa Porta 60/100 HM
    • Disassembly key
    • Bottom guide, adjustable
    • Spring-loaded Track Stopper, for Hawa Porta 60/100
    • Porta Push-to-Open Set, with soft and self closing mechanism
    • Soft Closer, For Hawa Porta, Hawa Divido 60/100
    • Retractable door seal, Schall-Ex® Slide & Lock M-12 WS, Athmer
    • Sealing Profile, Drilled
    • Upper Track Cleaning Tool, For Hawa Porta, Divido
