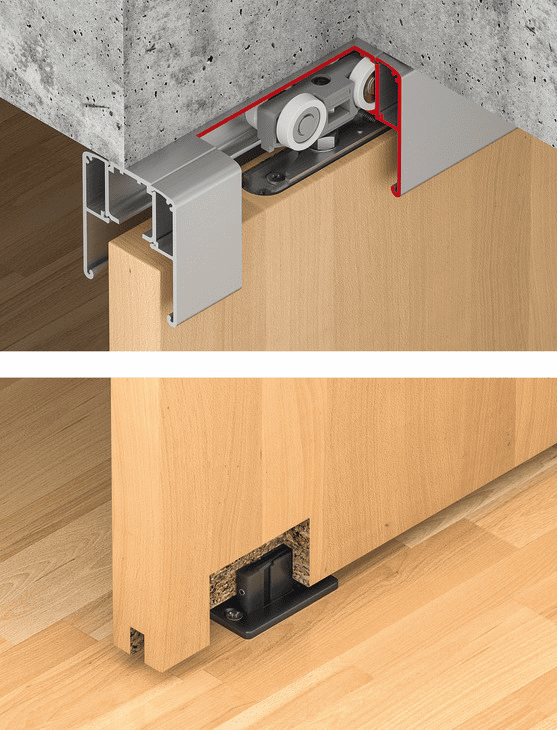

Hafele 941.02.046 Slido D-Line11 120C Fitting Set, with 2 track stoppers

Product Information

• Description

  Manufacturer: Hafele
  Item: 941.02.046

  Product Title: Sliding Door Hardware, Slido D-Line11 120C, set without running track, For door weight up to 120 kg, without soft and self closing mechanism, Door width ?500 mm

  Category: Sliding Door Hardware, Slido D-Line11 50C to 120C, set without running track, for 1-leaf and 4-leaf wooden and sliding frame doors, ceiling installation and wall mounting, door height adjustable

  Item Details …

  - Soft and self closing mechanism:

  - low opening force – easy and convenient operation

  - tested with increased closing speed up to 0.5 m/s

  - Can be retrofitted or replaced at any time

  - Accessibility: Opening force with door weight 50 kg: 18 N / 80 kg: 21 N

  - Shock absorber:

  - Closing speed with shock absorber tested up to 0.4 m/s

  - Number of doors per system max. : 1 to 4

  - Number of doors : 1.00

  - Version :

  - Controller installation options : Ceiling installation, Wall mounting

  - For glass thickness with tempered safety glass : 6 mm, 8 mm, 5 mm

  - For glass thickness with laminated glass : 6-8.7 mm

  - For door thickness : 28?–?45 mm

  - Adjustment facility : Height adjustment: ±3 mm, Height: (1/8") +/-3

  - Area of application : For wooden and frame doorsfor 1-leaf to 4-leaf sliding doors

  - Note on door width : 1,500 mm for frame doors

  - Note on door height : 3,000 mm for frame doors

  - Running position : Top

  - Installation : Suspension with integrated flange clip (without tools)

  - Door processing : With recess

  - Supplied with:

  - Floor guide

  - 2 x Track stopper


  Additional Information …

  Please note when using shock absorber with retaining spring: The door may not close completely if the closing speed is too low, if it is too high, the door may bounce back slightly.If required, the sets can be retrofitted without or with soft and self closing mechanism on one side, with soft and self closing mechanism or shock absorber.



  Please note when using the shock absorber with retaining spring: The door may not close completely if the closing speed is too low, it it is too high, the door may bounce back slightly.Sets without or with soft and self closing mechanism can be retroffitted with soft and self closing mechanism or shock absorber, if required.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for Slido D-Line11 50C - 120C

  Video

  TCH_Architectural_Hardware_2022|Page 1.33
