Hafele 941.04.011 Hawa Junior 100/B Fitting set with longer suspension bolt, includes 2 soft close mechanisms (1 kit), 94104011, 941-04-011Zoom

Hafele 941.04.011 Hawa Junior 100/B Fitting set with longer suspension bolt, includes 2 soft close mechanisms

$988.83$1,236.04You Save: $247.21 (20%)
Item# Hafele-941-04-011
Availability: limited availability (14 or less)

Product Information

  • Description

    Manufacturer: Hafele
    Item: 941.04.011

    Product Title: Sliding door fitting, HAWA Junior 100 B, set, for 1-leaf and 2-leaf wooden sliding doors, height adjustable, for door weight up to 100 kg, with SoftMove 100 soft and self closing mechanism on both sides, with long hanger bolt +20 mm

    Category: Sliding door fitting, HAWA Junior 100 B, set, for 1-leaf and 2-leaf wooden sliding doors, height adjustable, for door weight up to 100 kg

    Item Details …

    -     low opening force – easy and convenient operation

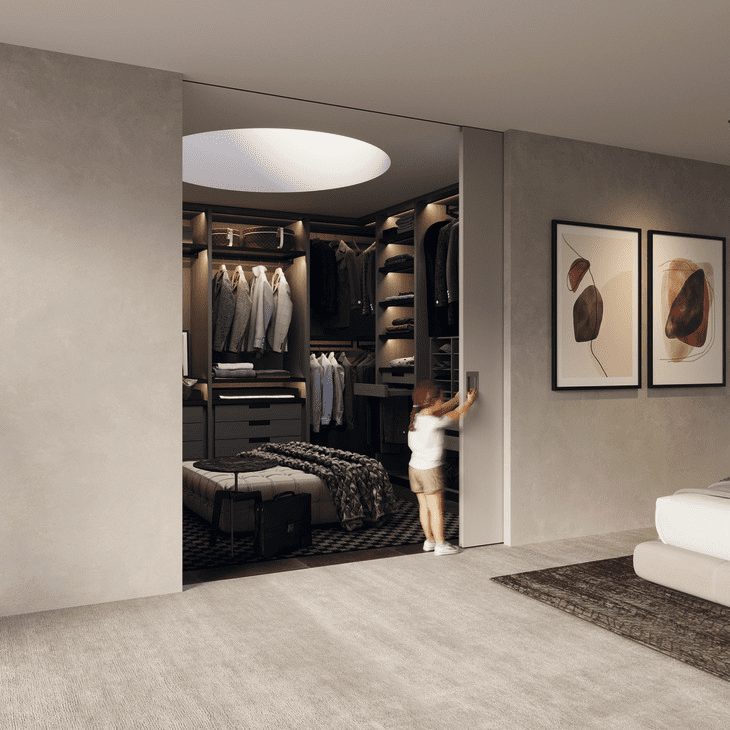

    - Barrier-free due to low operating force

    - new, Hawa SoftMove 100 soft and self closing mechanism

    - Number of doors per system max. : 1 to 2

    - Number of doors : 1.00

    - For door material : wood

    - Model : 100 B

    - Version : with long hanger bolt (+20 mm)

    - For door weight : ?100 kg

    - Controller installation options : Ceiling installation, Wall mounting

    - For door thickness : 35?–?80 mm

    - Adjustment facility : Height adjustment: ±4 mm, Height ±4 mmtrack buffer with adjustable retaining spring and cover cap

    - Area of application : for 1-leaf and 2-leaf sliding doors

    - For door height : ?4,000 mm

    - Running position : Top

    - Installation : Suspension with suspension carriage, Suspension with recessed support profile

    - Door processing : for screw fixing

    - Supplied with:

    - 2 running gears with soft and self closing mechanism, incl. release device and stopper

    - 2 support profiles with suspension carriage and long M10 hanger bolt (+20 mm)

    - 1 clear threshold floor guide 60 mm


    Additional Information …

    The greater distance between the door leaf and the wall results in greater demands on the load bearing capacity of the wall (lever effect). Sufficient load bearing capacity must be ensured. No end cap is available for ceiling installation with fascia on both sides. A pair of end caps can be attached end to end and glued vertically in the centre of the running track (optional).

  • Data Sheet

  • Product Resources

  • Required Products & Optional Accessories

    Note: Add the current product in cart before ordering required products below ...

    Required Products:

    Upper Track, Pre-drilled (choose one):
    • for Hawa Symmetric, Telescopic, Junior, 1.4 m (4’ 7 1/8”)
      for Hawa Symmetric, Telescopic, Junior, 1.6 m (5’ 3”)
      for Hawa Symmetric, Telescopic, Junior, 1.8 m (5’ 10 7/8”)
      for Hawa Symmetric, Telescopic, Junior, 2 m (6’ 6 3/4”)
      for Hawa Symmetric, Telescopic, Junior, 2.2 m (7’ 2 5/8”)
      for Hawa Symmetric, Telescopic, Junior, 2.5 m (8’ 2 7/16”)
      for Hawa Symmetric, Telescopic, Junior, 3 m (9’ 10 1/8”)
      for Hawa Symmetric, Telescopic, Junior, 4 m (13’ 1 1/2”)
      for Hawa Symmetric, Telescopic, Junior, 6 m (19’ 8 1/4”)      		940.80.140
      940.80.160
      940.80.180
      940.80.200
      940.80.220
      940.80.250
      940.80.300
      940.80.400
      940.80.600      		Click to order
      Click to order
      Click to order
      Click to order
      Click to order
      Click to order
      Click to order
      Click to order
      Click to order


    Running track, for wall mounting, pre-drilled, for aluminium or wooden panel (choose one):
    • for Hawa Junior 80/100, aluminium, silver coloured anodized, length: 2,000 mm
      for Hawa Junior 80/100, length: 2,500 mm
      for Hawa Junior 80/100, aluminium, silver coloured anodized, length: 3,000 mm
      for Hawa Junior 80/100, aluminium, silver coloured anodized, length: 4,000 mm
      for Hawa Junior 80/100, aluminium, silver coloured anodized, length: 6,000 mm      		941.04.600
      941.04.601
      941.04.602
      941.04.603
      941.04.604      		Click to order
      Click to order
      Click to order
      Click to order
      Click to order


    Running track, for ceiling installation, pre-drilled, for aluminium or wooden panel (choose one):
    • for Hawa Junior 80/100, aluminium, silver coloured anodized, length: 2,000 mm
      for Hawa Junior 80/100, length: 2,500 mm
      for Hawa Junior 80/100, aluminium, silver coloured anodized, length: 3,000 mm
      for Hawa Junior 80/100, aluminium, silver coloured anodized, length: 4,000 mm
      for Hawa Junior 80/100, aluminium, silver coloured anodized, length: 6,000 mm      		941.04.605
      941.04.606
      941.04.607
      941.04.608
      941.04.609      		Click to order
      Click to order
      Click to order
      Click to order
      Click to order


    Running track, for ceiling installation with suspended ceiling, pre-drilled (choose one):
    • for Hawa Junior 80/100, length: 2,500 mm
      for Hawa Junior 80/100, aluminium, silver coloured anodized, length: 4,000 mm
      for Hawa Junior 80/100, aluminium, silver coloured anodized, length: 6,000 mm      		941.04.610
      941.04.611
      941.04.612      		Click to order
      Click to order
      Click to order


    Guide Rail, 20 x 12 (13/16" x 1/2"), Glue-in (choose one):
    • for Hawa Junior, Symmetric, Telescopic, Ordena, (4' 3 1/8") 1.3 m940.41.130Click to order


    Optional Accessories:

    • Clip-on panel, height 40 mm, table fittings
    • Spacer Profile, Pre-drilled, for wall mounting the combination track, 11 x 36 mm (W x H)
    • Cover Cap, For running track
    • End cap set, for clip-on panel, height 40 mm
    • Buffer, with retaining spring
    • SoftStop, with retaining spring
    • Soft and self closing mechanism, SoftMove 100, for Hawa Junior 100

  • Brand PDF Catalogs

Cannot find your product? click: Help!. Our product experts will assist you.

Quick Metric Conversions: 25mm = 1 inch (approx), 2.5cm = 1 inch (approx), 96mm = 3.75 inches
