Hafele 941.07.177 Solid Stainless Steel Track Set, Tritec For 1 Sliding Wood Door, 2.54 m Length
Product Information
Description
Manufacturer: Hafele
Item: 941.07.177
Product Title: Solid Stainless Steel Track Set, Tritec, For 1 Sliding Wood Door, 2.54 m Length
Category: Solid Stainless Steel Track Set, Tritec, For 1 Sliding Wood Door, 2.54 m Length
Item Details …
- Additional running gears required for two door applications
- Smooth quiet operation
- Maintenance-free
- Simple installation
- Stainless steel components
- Number of doors : 1.00
- For door material : wood
- For door weight : ?100 kg
- For door width : ?1,250 mm
- Running track length : 2,540.00 mm
- Material/finish : Stainless steel
- For door thickness : 35?–?45 mm
- Adjustment facility : Height adjustment: ±3 mm, Height: (1/8") ±3 mm
- For door thickness min. : 1 3/8"
- For door thickness max. : 1 3/4"
- Load bearing capacity : 220 lbs.
- Length (inch) : 8’ 4"
- Area of application : For 1 sliding wood door
- Running position : Top
- Order reference
- Item numbers stated are valid for 1 pc. When ordering individual components, please indicate the desired quantity. Order hanger bolts separately.
- Supplied with:
- Upper track rod
- 3-4 wall attachments
- 2 door stoppers

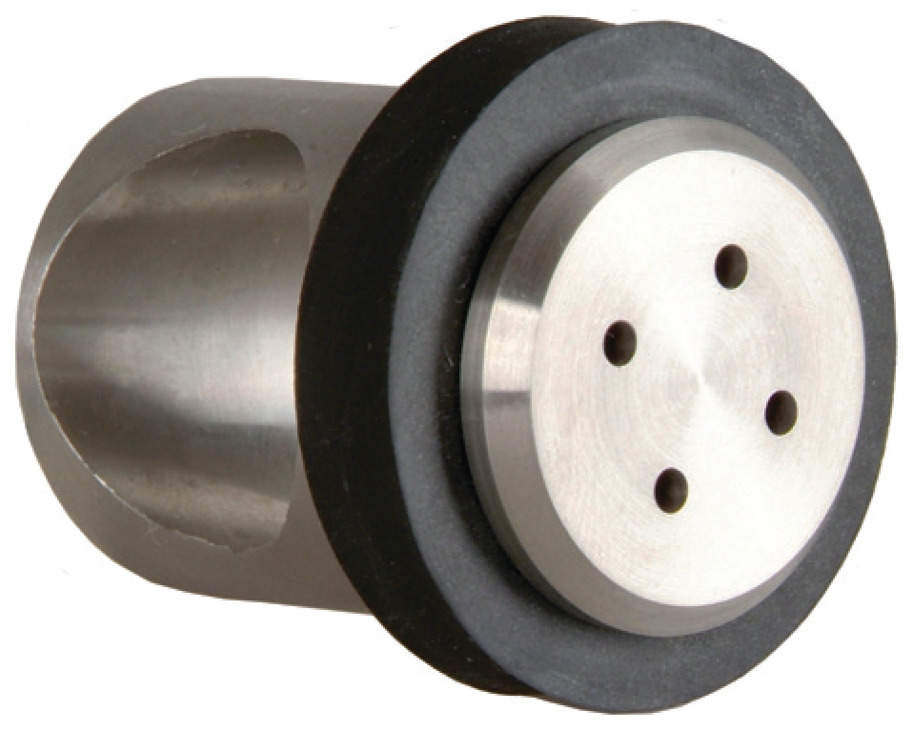

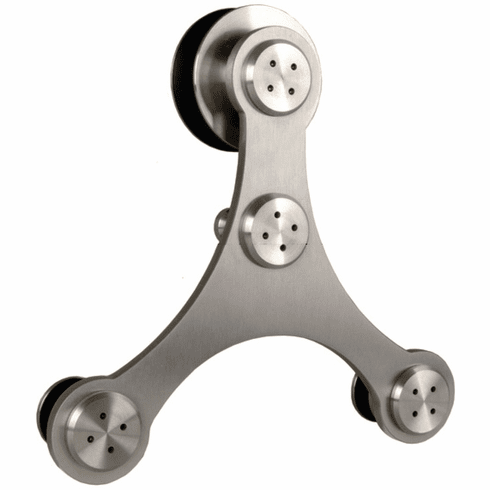

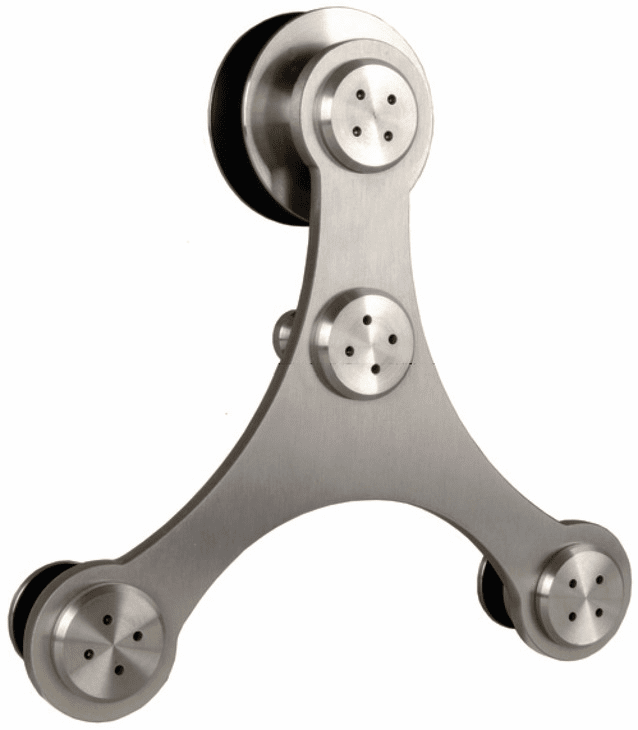

- 2 running gears

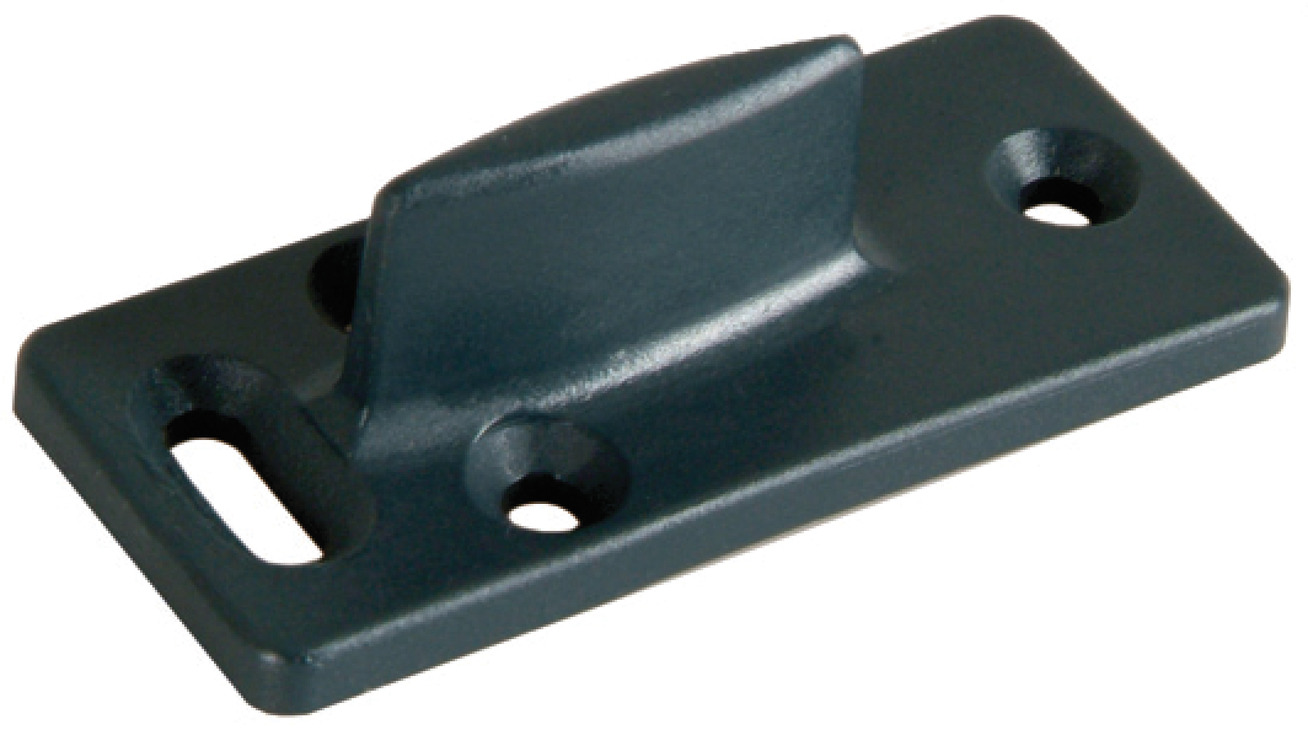

- Lower guide
- Face spanner wrench

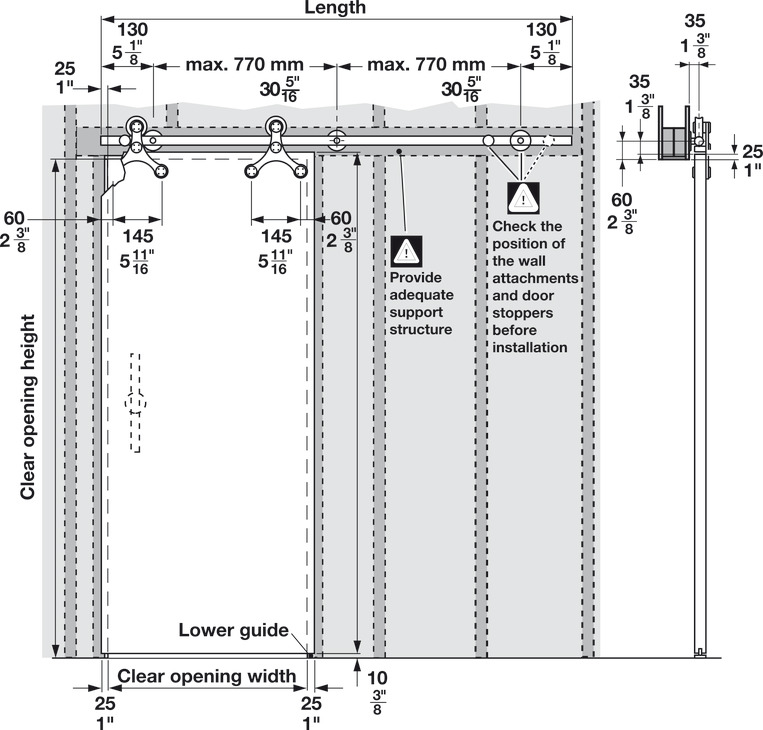

- Installation plan included in fitting set, also available for planning and execution upon requestData Sheet
