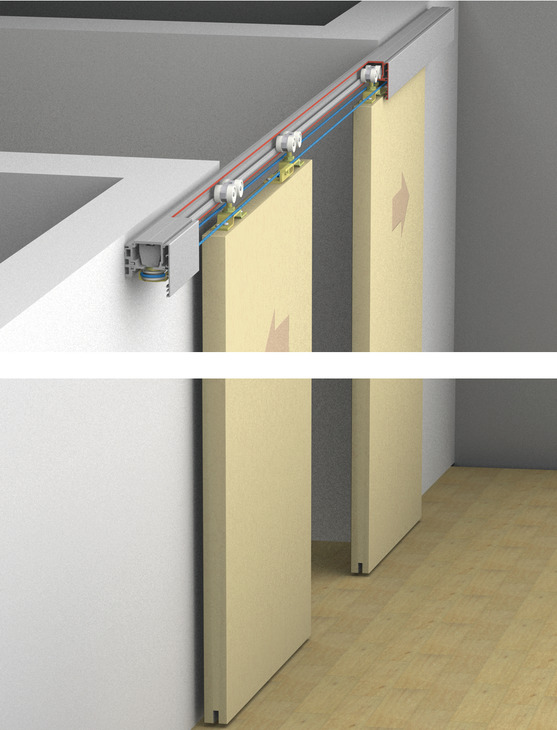

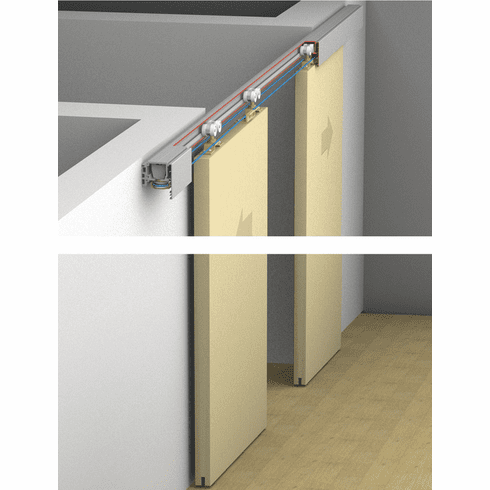

Hafele 941.12.005 Sliding Door Hardware, Eku Divido 100 H-Synchro, set Top Hung System

Product Information

• Description

  Manufacturer: Hafele
  Item: 941.12.005

  Product Title: Sliding Door Hardware, Hawa Divido 100 H / Porta 60/100 H/HC -Synchro, set, Top Hung System, for 2-leaf sliding doors

  Category: Sliding Door Hardware, Hawa Divido 100 H / Porta 60/100 H/HC -Synchro, set, Top Hung System, for 2-leaf sliding doors

  Item Details …

  - Available with anodized aluminum fascias or clip components for attaching wood fascias

  - Allows for wood and glass sliding door combinations

  - Single upper running track can be ceiling or wall mounted

  - Model : 100 H Synchro

  - Door weight max. : 220 lbs

  - For door height (inches) : max. 7' 10 1/2"

  - For door width (inches) : max. 3' 11 1/4"

  - For door thickness min. : Wood: 1/8"

  - Door width max. : 47 1/4"

  - For wood thickness : 1 1/8"

  - Height adjustment : +/- 1/8”

  - Area of application : Synchronized opening of 2 door leaves

  - For door material : wood

  - Number of doors : 2.00

  - For door weight : ?100 kg

  - For door width : ?1,200 mm

  - For door thickness : 28?–?40 mm

  - Controller installation options : Ceiling installation, Wall mounting

  - Order reference

  - The required basic elements – 2 sets in matching version – and 1 matching running track are not supplied, please order separately.

  - Set components cannot be ordered individually.

  - Supplied with:

  - 2 rollers

  - 2 spacer rings

  - 2 cord cover plates

  - 2 fixing screws for cord cover plate

  - 2 mounting plates for cord ends

  - 1 cord, 10 m

  - 1 set of fixing screws


  Additional Information …

  Additional floor guide recommended for door widths >900 mm.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions

  TCH_Architectural_Hardware_2022|Page 1.55

  TCH_Architectural_Hardware_2022|Page 1.67



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.32-1.33.pdf

  Hafele 941.12.005 EKU Divido 100 H Synchro Fitting Set, for 2 doors
