Hafele 941.20.018 Hawa Junior 120 A Fitting Set, with 2 track stoppers

Product Information

• Description

  Manufacturer: Hafele
  Item: 941.20.018

  Product Title: Sliding Door Hardware, Hawa Junior 120/A, set, Top Hung System, With 1 track buffer/1 wall buffer

  Category: Sliding Door Hardware, Hawa Junior 120/A, set, Top Hung System, With 1 track buffer/1 wall buffer

  Item Details …

  - Smooth quiet operation

  - Outstanding durability

  - Rattle-free bottom guide

  - Simple installation

  - Steel suspension bracket

  - Vertically and laterally adjustable

  - Door stop with adjustable retention spring

  - Number of doors per system max. : 1 to 2

  - Number of doors : 1.00

  - For door material : wood

  - Model : 120 A

  - For door weight : ?120 kg

  - For door width : ?3,000 mm

  - Controller installation options : Ceiling installation, Wall mounting

  - For door thickness : 35?–?80 mm

  - Adjustment facility : Height adjustment: ±3 mm, Height ±4 mm, door side adjustabletrack buffer with adjustable retaining spring

  - For door thickness min. : 1 3/8"

  - Door weight max. : 264 lbs

  - Load bearing capacity : Max: 264 lbs.

  - Area of application : For 1 and 2 sliding wood doors

  - For door height : ?4,000 mm

  - Running position : Top

  - Installation : Suspension with suspension bar

  - Door processing : for screw fixing

  - Standard : Certified in compliance with EN 1527:2013

  - Classification in compliance with EN 1527 : -|6|3|-|1|0|-|1|3

  - Order reference

  - Order 2 sets for 2-leaf sliding doors.

  - Supplied with:

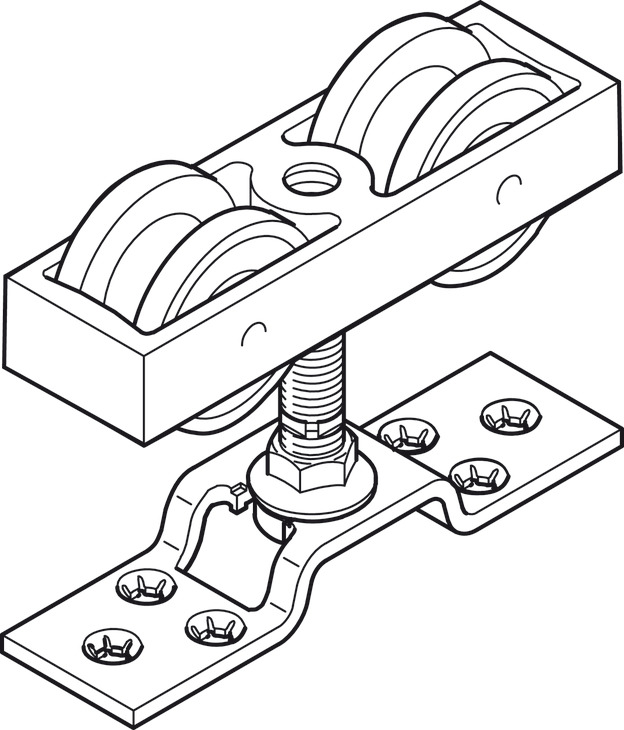

  - 2 running gears

  - 2 support flanges with hanger bolt and nut, M12

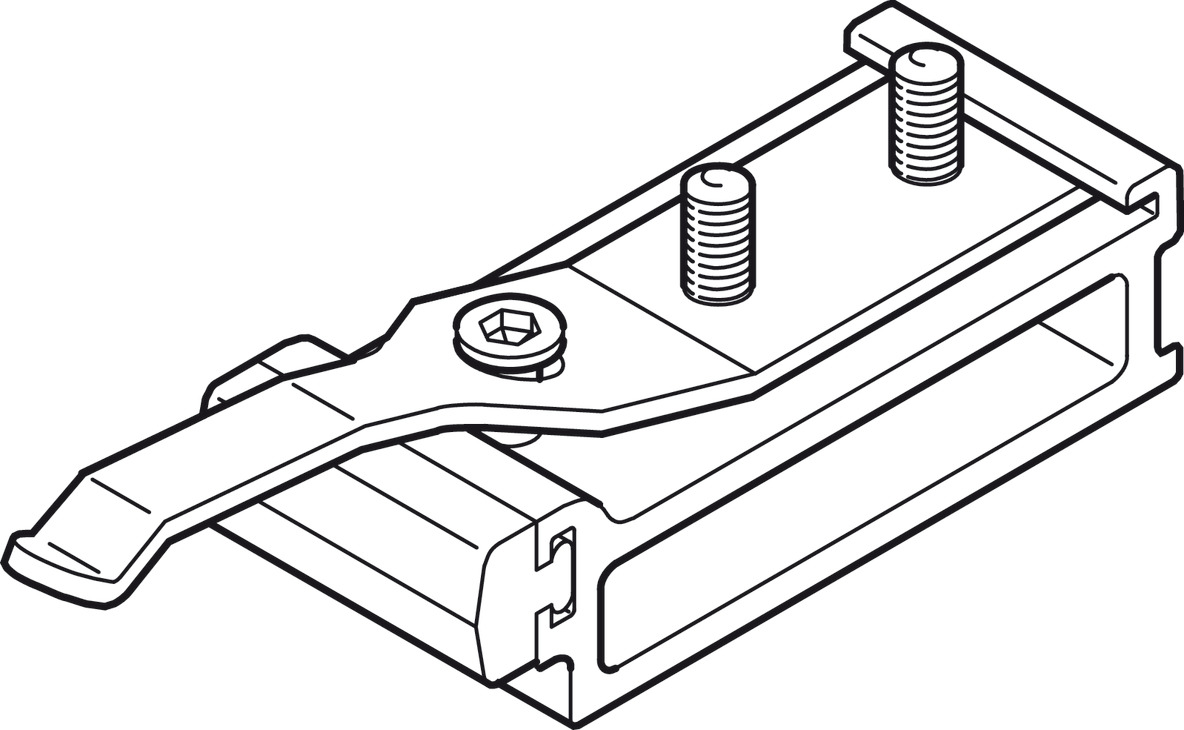

  - 2 track buffer with retaining spring

  - 1 clear threshold floor guide 60 mm

  - Accessories

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions

  TCH_Architectural_Hardware_2022|Page 1.119



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Running track, pre-drilled, door weight up to 120 kg (choose one):


  • For Hawa Junior, (8' 2 7/16") 2.5 m For Hawa Junior, (9’ 10 1/8”) 3 m For Hawa Junior, (13’ 1 1/2”) 4 m For Hawa Junior, (19’ 8 1/4”) 6 m

    941.20.250 941.20.300 941.20.400 941.20.600

    Click to order Click to order Click to order Click to order



  Guide Rail, 20 x 12 (13/16" x 1/2"), Glue-in (choose one):


  • for Hawa Junior, Symmetric, Telescopic, Ordena, (4' 3 1/8") 1.3 m

    940.41.130

    Click to order



  Optional Accessories:



  • Soft and Self Closing Mechanism, SoftMove 120 for Hawa Junior 120
  • Cover Cap, For running track
  • Track Stopper, with Adjustable Retention Spring
  • Bar Bolt Lock, Hawa Doorfix
  • Sealing Profile, Drilled
  • Cover Cap, For running track
  • Angle Profile, Pre-Drilled for Upper Tracks
  • Track fixing block, For Hawa Junior 80 wall pocket solution
