Hafele 941.32.008 Flat Track Sliding System, with Top-Mounted Hanger; BD110 For 1 Sliding Wood Door, 2.5 m Length, black

Product Information

• Description

  Manufacturer: Hafele
  Item: 941.32.008

  Product Title: Flat Track Sliding System, Slido D-Line42 100R Set, For 1 Sliding Wood Door, with Top Mounted Hanger, 2.5 m Length, black

  Category: Flat Track Sliding System, Slido D-Line42 100R Set, For 1 Sliding Wood Door, with Top Mounted Hanger

  Item Details …

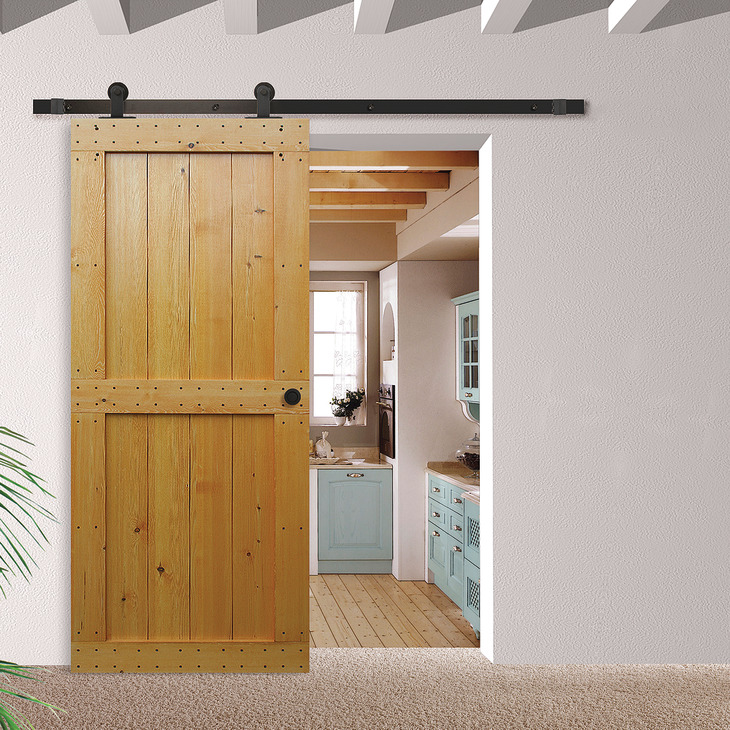

  - rustic sliding door fitting with graphite black finish or in satin stainless steel

  - visible functional details

  - Number of doors per system max. : 1

  - Number of doors : 1.00

  - For door material : wood

  - Model : 100R

  - For door weight : ?100 kg

  - Controller installation options : Wall mounting

  - For door thickness : 35?–?45 mm

  - Adjustment facility : not height adjustable

  - For door thickness min. : 1 3/8"

  - For door thickness max. : 1 3/4"

  - Load bearing capacity : 220 lbs.

  - For door width (inches) : Up to 48"

  - For door height (inches) : 108"

  - Area of application : For 1 sliding wood door

  - For door height : ?2,743 mm

  - Running position : Top

  - Functionality : with anti-derailment device

  - Installation reference : The running track can be shortened on site. The cut edge then requires reworking (ground and colour adapted in the case of a black track). Drilling distances for wall mounting the 2000 mm running track: 100/450/450/450/450/100, pre-drilled 5 timesDrilling distances for wall mounting the 2500 mm running track: 125/450/450/450/450/450/125, pre-drilled 6 times

  - Door processing : for screw fixing

  - Supplied with:

  - Top-mounted hanger

  - Upper running track

  - Track stopper

  - Wall attachment

  - Anti-derail block

  - Floor guide

  - Hexagon key

  - Drill bit
