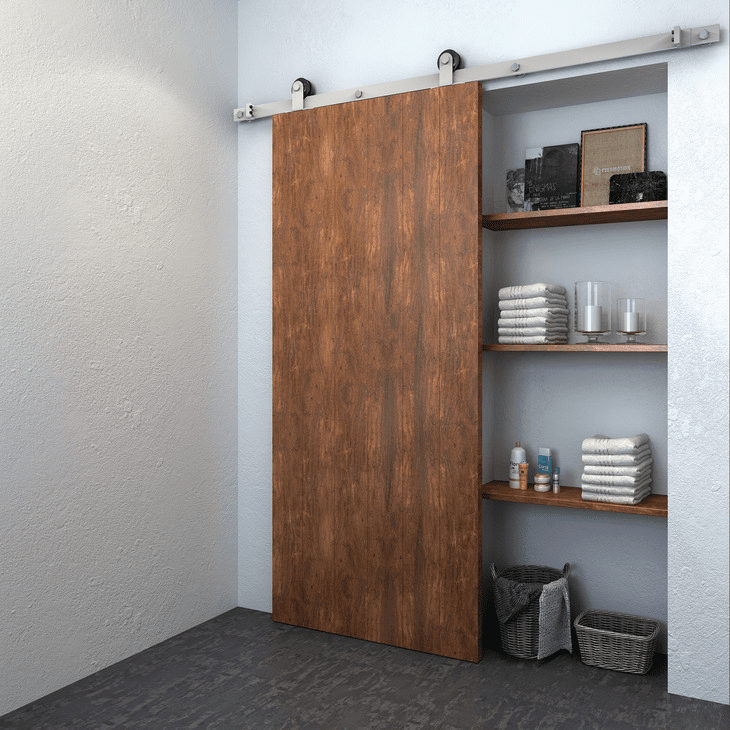

Hafele 941.32.027 Slido D-Line42 100S Retail Set, top-mounted hanger, 2.0 meter track, satin stainless steel

Product Information

• Description

  Manufacturer: Hafele
  Item: 941.32.027

  Product Title: Flat Track Retail Set, with Top-Mounted Hanger; BD210, Satin Stainless Steel, For 1 Sliding Wood Door, 2 m Length

  Category: Flat Track Retail Set, with Top-Mounted Hanger; BD210, Satin Stainless Steel, For 1 Sliding Wood Door

  Item Details …

  - Number of doors per system max. : 1

  - For door material : wood

  - For door width : ?1,220 mm

  - Material/finish : Stainless steel, satin-finish

  - For door thickness : 35?–?45 mm

  - Door height max. : 108"

  - For door thickness min. : 1 3/8"

  - For door thickness max. : 1 3/4"

  - Door weight max. : 220 lbs

  - For door width (inches) : 48"

  - Area of application : For 1 sliding wood door

  - For door height : ?2,743 mm

  - Supplied with:

  - 2 straight hangers

  - 1 upper running track (2 or 2.5 m)

  - 2 track stoppers

  - 6 wall attachments

  - 2 anti-derail blocks

  - 1 floor guide

  - 1 hexagon key

  - 1 drill bit Ø8mm

  - 1 set of mounting instructions


  Additional Information …

  Soft close available
