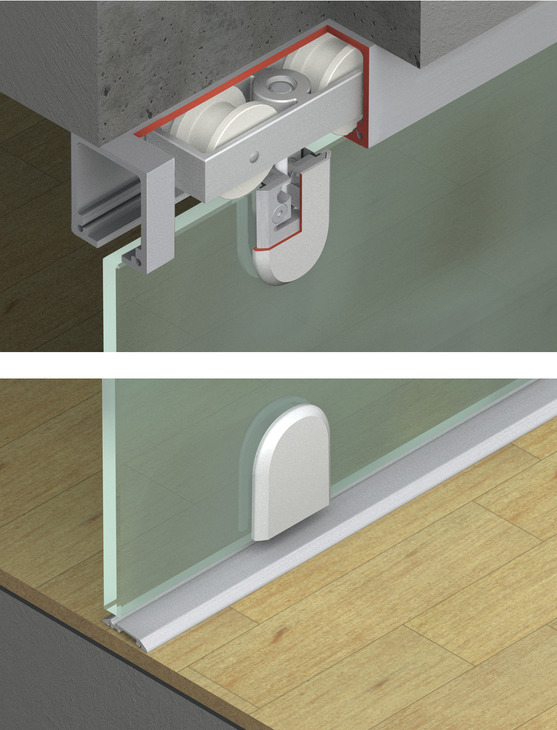

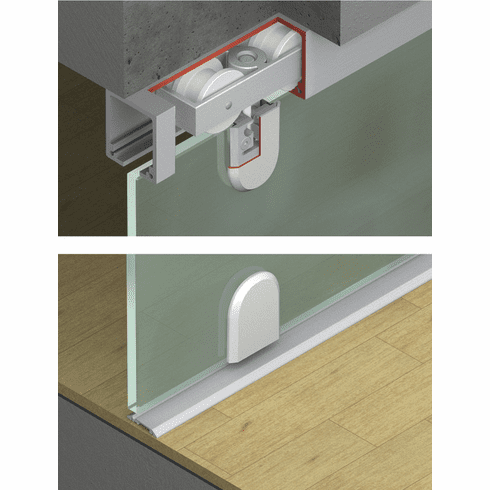

Hafele 941.60.005 Sliding Door Hardware, Hawa Junior 160/GP, set HAWA Junior 160/GP

Product Information

• Description

  Manufacturer: Hafele
  Item: 941.60.005

  Product Title: Sliding Door Hardware, Hawa Junior 160/GP, set, Top Hung System, without running track, floor guide and cover caps

  Category: Sliding Door Hardware, Hawa Junior 160/GP, set, Top Hung System, without running track, floor guide and cover caps

  Item Details …

  - Smooth, quiet operation

  - Maintenance-free

  - Vertical adjustment without removing the glass door

  - Rattle-free bottom guide

  - Simple installation

  - Low installation height

  - Number of doors per system max. : 1 to 2

  - Number of doors : 1.00

  - For door material : glass

  - Model : 160 GP

  - Version : without running track, without floor guide, without cover caps

  - For door weight : ?160 kg

  - Controller installation options : Ceiling installation

  - For glass thickness with tempered safety glass : 8 mm, 10 mm, 12 mm, 12.7 mm

  - For glass thickness with laminated glass : 8,7–12,7 mm

  - Adjustment facility : Vertical adjustment without removing the glass door

  - For min. glass thickness (inches) : Tempered glass: 5/16" - 1/2", laminated glass: 5/16" - 1/2"

  - Load bearing capacity : Max. 352 lbs.

  - Area of application : For 1 doors

  - Suitable for : Minimum installation height

  - For glass type : Tempered safety glass, Laminated glass

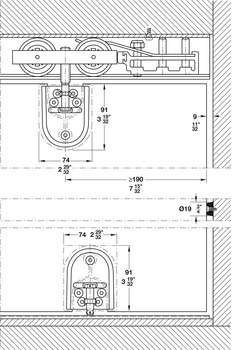

  - Installation : Suspension with hanger bolt, Point fixing with glass retainer

  - Door processing : With glass preparation

  - Supplied with:

  - 2 running gears

  - 2 hanger bolts M14

  - 2 point fixing sets with patch fitting

  - 2 track buffers

  - 1 disposable drilling jig

  - 1 rubber wall buffer

  - 1 height adjusting pin


  Additional Information …

  The complete fitting set is always delivered without running and guide rails, please order separately.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions

  TCH_Architectural_Hardware_2022|Page 1.321



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.274-1.277.pdf

  Hafele 941.60.005 HAWA Junior 160/GP Fitting Set


  • Hardware > Building Materials > Door Hardware
  • Hardware,Hafele,500-3000
  • Brand: Hafele
  • Part#: 941.60.005
  • Condition: new

• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Upper Track, Pre-drilled, Aluminum (choose one):


  • For Hawa Junior, Length: 3 m (9’ 10 1/8”) For Hawa Junior, Length: 4 m (13’ 1 1/2”) For Hawa Junior, Length: 6 m (19’ 8 1/4”)

    941.60.301 941.60.401 941.60.601

    Click to order Click to order Click to order

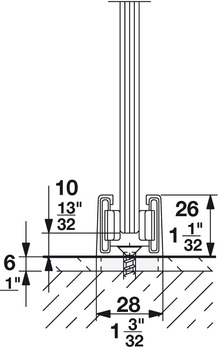

  Single Lower Guide Track, for Clip or Glue Mounting (choose one):


  • 4.5 x 35 mm (3/16 x 1 3/8"), 2.5 m Length 4.5 x 35 mm (3/16 x 1 3/8"), 3.5 m Length

    940.41.725 940.41.735

    Click to order Click to order

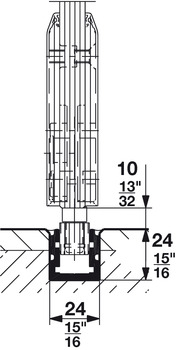

  Guide Channel, 24 x 24 mm (15/16" x 15/16") (choose one):


  • For Hawa Junior, length: 6 m (19' 8 1/4")

    940.81.600

    Click to order

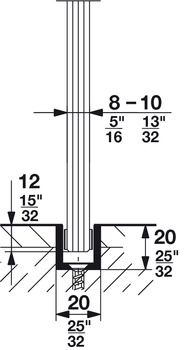

  Lower Guide Channel, Pre-drilled (choose one):


  • for Hawa Telescopic, Junior, folding wall, Length: 2.5 m (8' 2 7/16") for Hawa Telescopic, Junior, folding wall, Length: 6.0 m (19' 8 1/4")

    941.00.925 941.00.960

    Click to order Click to order



  Optional Accessories:



  • Profile, Self-Adhesive, for 8 - 10 mm (5/16 - 13/32") Thick Glass
  • Glass Door Lock, Toplock for European Profile Cylinder
  • Connecting Pin, Set for Upper Track
  • Patch Suspension, With patch fitting for laminated glass/tempered safety glass
  • Lower Guide, Spring-loaded
  • Fixing set, For guide track
  • Lower Guide, with Mounting Screws
  • Door Stopper, For Lower Guide Channel
  • Cover Cap, for Patch Suspension, Square
  • Cover Cap, for Patch Suspension, Round
  • Single Lower Guide, Zero clearance, for glass thickness 8, 10, 12 (12.7) mm
