Hafele 941.62.010 Slido D-Line11 160C Fitting Set
Product Information
Description
Manufacturer: Hafele
Item: 941.62.010
Product Title: Sliding Door Hardware, Slido D-Line11 160C Set, for 1-leaf wooden sliding doors, ceiling and wall installation, height adjustable doors, for door weights up to 160 kg, Version A, without Soft Close
Category: Sliding Door Hardware, Slido D-Line11 160C Set, for 1-leaf wooden sliding doors, ceiling and wall installation, height adjustable doors, for door weights up to 160 kg, Version A, without Soft Close
Item Details …
- Number of doors per system max. : 1 to 2
- Number of doors : 1.00
- For door material : wood
- Model : 160C
- Soft closing mechanism : without soft and self closing mechanism
- For door weight : ?160 kg

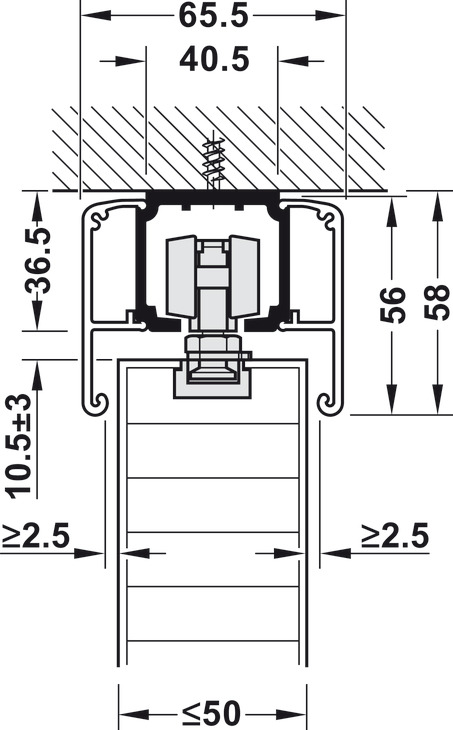

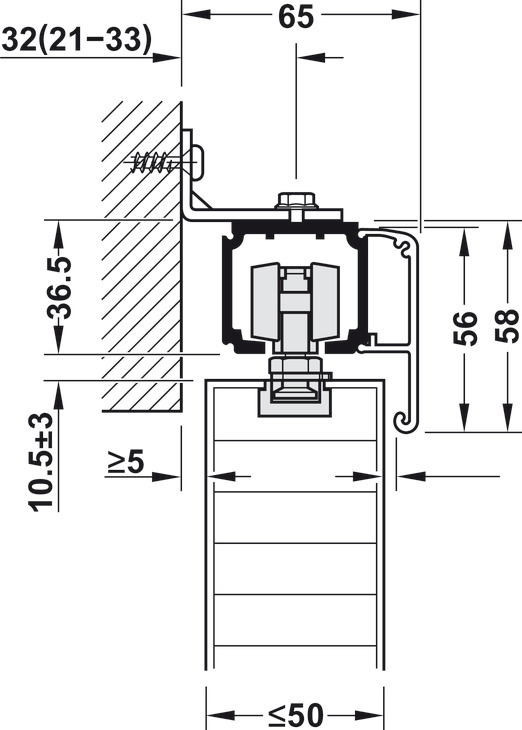

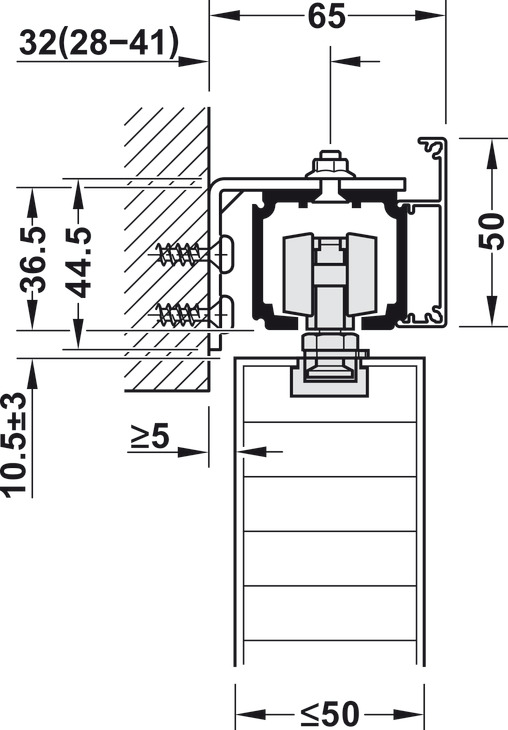

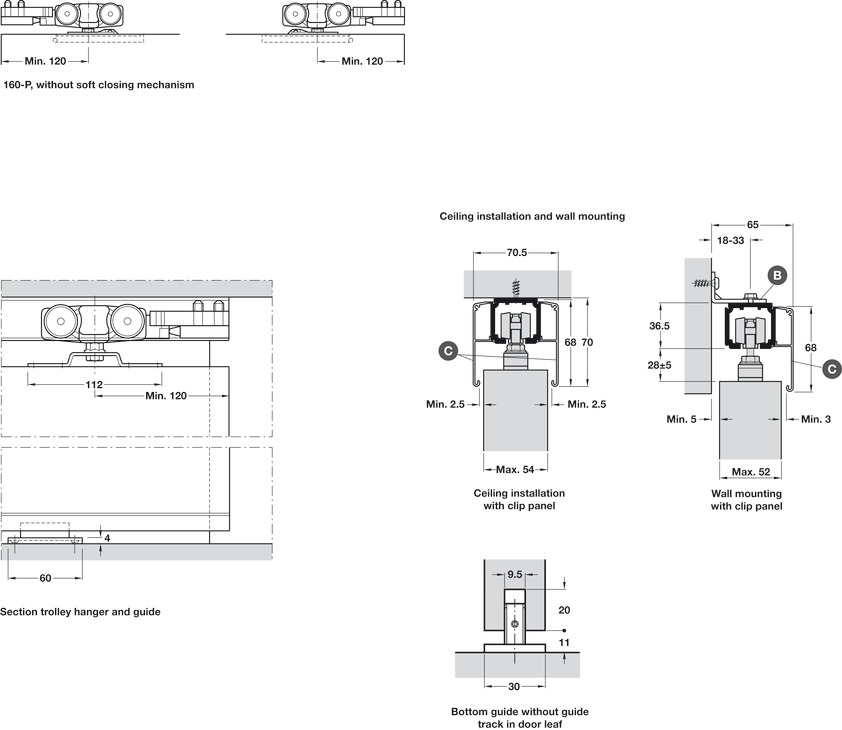

- Controller installation options : Ceiling installation, Wall mounting
- Adjustment facility : Door height adjustable: +/- (3/16") 5 mm
- Door weight max. : 353 lbs
- Load bearing capacity : Per door: ? 353 lbs.
- Height adjustment : +/- 1/8”
- Area of application : For 1 sliding door without upper track and soft close
- Running position : Top
- Adjustment facility : height adjustment
- Installation : Positive-fit clamp connection (without tools)
- Door processing : With recess
- Order reference
- Order 2 sets for 2-leaf sliding doors. Please order running and guide tracks separately.

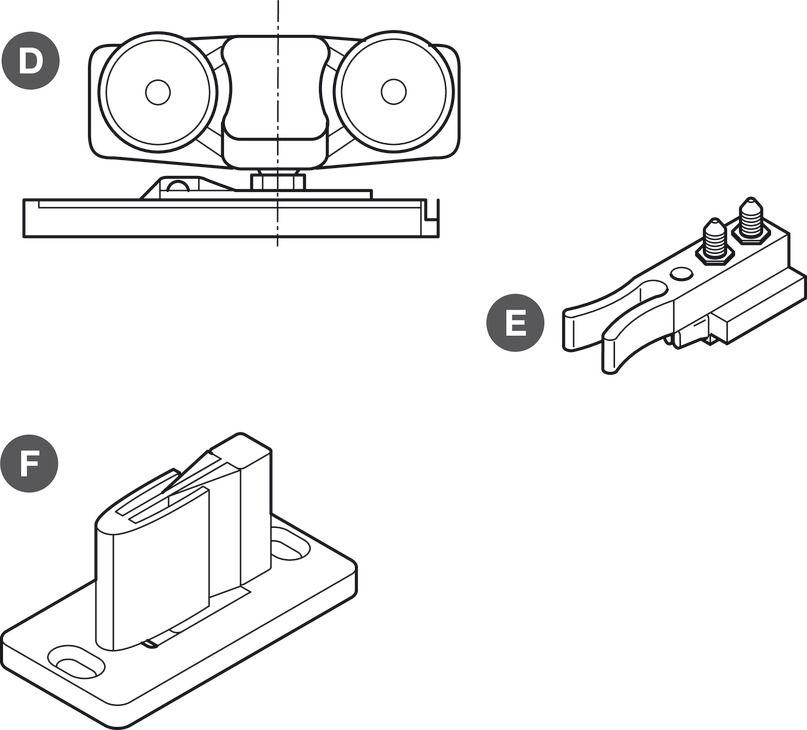

- Supplied with:
- 2 running gears (incl. flange clip left and right)
- 1 clear threshold floor guide
- 2 track buffer with retaining spring
Additional Information …
No end cap is available for ceiling installation with fascia on both sides. A pair of end caps can be attached end to end and glued vertically in the centre of the running track (optional).Data Sheet
