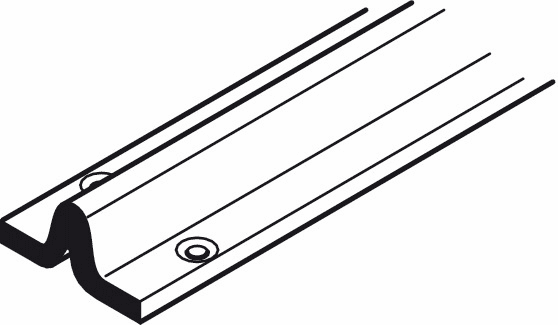

Hafele 941.80.622 Lower Track, stainless steel, 10 x 21mm, 2.1 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 941.80.622

  Product Title: Lower Track, Pre-Drilled, Straightaway 180

  Category: Lower Track, Pre-Drilled, Straightaway 180

  Item Details …

  - Order specifications:Number of running gears (2 per door) and upper guides

  - Lower track and upper guide channel lengths

  - Door weight, height and width

  - Type of stopper

  - Product type : Lower Track

  - Width : 21.00 mm

  - Height : 10.00 mm

  - For door thickness min. : 1 3/4"

  - For door thickness max. : 2 3/8"

  - For door height (inches) : 9’ 10 1/8”

  - Area of application : For single and multiple interior and exterior sliding doors

  - Material : Stainless steel

  - Track version : Single

  - For door weight : ?115 kg

  - Installation : Simple installationMortise for lower running gear must fit tight around the running gear’s casingWeight of sliding door must be carried on top of casing above the wheelStagger upper guides to reduce left right movement inside upper guide channelLower running gear must be plumb with upper guide
