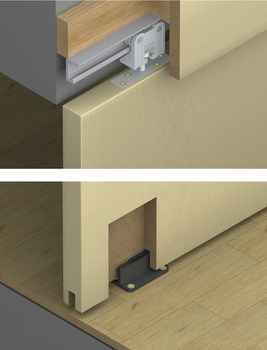

Hafele 942.17.000 Sliding Door Hardware, HAWA Media 70, set HAWA Media 70

Product Information

• Description

  Manufacturer: Hafele
  Item: 942.17.000

  Product Title: Sliding Door Hardware, HAWA Media 70, set, HAWA Media 70, without running track

  Category: Sliding Door Hardware, HAWA Media 70, set, HAWA Media 70, without running track

  Item Details …

  - Also possible for curved systems

  - • Outstanding durability

  - • Rattle-free bottom guide

  - • Nylon tyred ball-bearing wheels

  - • Smooth quiet operation

  - Number of doors per system max. : 1 to 2

  - Number of doors : 1.00

  - For door material : wood

  - Model : 70

  - For door weight : ?70 kg

  - Controller installation options : Ceiling installation, Wall mounting

  - Adjustment facility : Height adjustment: ±5 mm, Height: +10, –5 mm, door side adjustable

  - For door thickness min. : 1"

  - Load bearing capacity : 154 lbs.

  - Height adjustment : +/- 3/16”

  - Area of application : For 1 and 2 sliding wood doors

  - Running position : Top

  - Functionality : Stopper position in the wall pocket , readjustable

  - Installation : Suspension with suspension plate

  - Door processing : for screw fixing

  - Order reference

  - Order 2 sets for 2-leaf sliding doors.

  - Supplied with:

  - 2 running gears

  - 2 suspension plates with hanger bolts and nut, M8

  - 1 track buffer with retaining spring

  - 1 wall buffer

  - 1 clear threshold floor guide

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions

  TCH_Architectural_Hardware_2022|Page 1.83



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.56-1.57.pdf

  Hafele 942.17.000 HAWA Media 70 Fitting Set


  • Hardware > Building Materials > Door Hardware
  • Hardware,Hafele,50-500
  • Brand: Hafele
  • Part#: 942.17.000
  • Condition: new

• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Upper Track, Pre-drilled, Ceiling Mounted (choose one):


  • for Hawa Media, length: 2.5 m (8’ 2 7/16”)

    942.17.250

    Click to order



  Optional Accessories:



  • Bar Bolt Lock, Hawa Doorfix
  • Sealing Profile, Drilled
  • Guide Rail, 20 x 12 (13/16" x 1/2"), Glue-in
