Hafele 942.56.003 HAWA Junior 250/G Fitting Set (1 kit), 94256003, 942-56-003Zoom

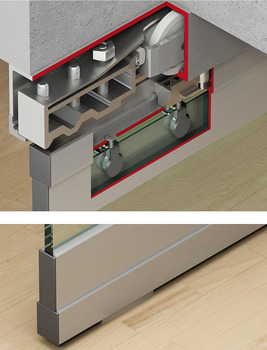

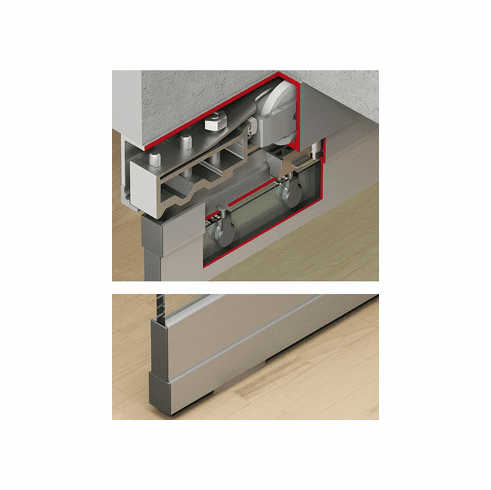

Hafele 942.56.003 Sliding Door Hardware, Hawa Junior 250/G, set for 1-leaf glass sliding doors, ceiling and wall installation, for door weights up to 250 kg, without running track and bottom guide

$1,429.44$1,786.80You Save: $357.36 (20%)
Item# Hafele-942.56.003
Availability: backorder or special order, Next ETA: Contact us

Product Information

  • Description

    Manufacturer: Hafele
    Item: 942.56.003

    Product Title: Sliding Door Hardware, HAWA Junior 250 G, set, for 1-leaf glass sliding doors, ceiling and wall installation, for door weights up to 250 kg, without running track and bottom guide

    Category: Sliding Door Hardware, HAWA Junior 250 G, set, for 1-leaf glass sliding doors, ceiling and wall installation, for door weights up to 250 kg, without running track and bottom guide

    Item Details …

    -     quiet operation

    - low wear and tear

    - Number of doors per system max. : 1 to 2

    - Number of doors : 1.00

    - For door material : glass

    - Model : 250 G

    - Version : without running track, without floor guide

    - For door weight : ?250 kg

    - Controller installation options : Wall mounting

    - For glass thickness with tempered safety glass : 8–16 mm

    - Adjustment facility : Height adjustment: ±5 mm, Height: (3/16") ±5 mm

    - Door weight max. : 550 lbs.

    - For min. glass thickness (inches) : 5/16"

    - For max. glass thickness (inches) : 5/8"

    - Area of application : For 1 doors

    - For glass type : Tempered safety glass

    - Running position : Top

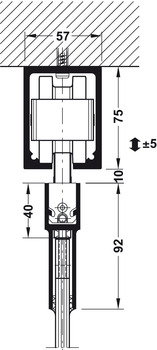

    - Installation : Suspension with form-fitting glass clamp connection

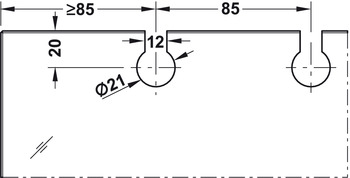

    - Door processing : With glass preparation

    - Standard : Certified in compliance with EN 1527:1998

    - Classification in compliance with EN 1527 : -|6|3|0|-|0|-|1|3

    - Order reference

    - Please order floor guide separately. Order 2 sets for 2-leaf sliding doors.

    - Supplied with:

    - 2 running gears

    - 2 suspension carriages M12 and clamping screw

    - 2 track buffers

    - 2 cover caps, anthracite

    - 1 rubber wall buffer

    - 1 spanner

  • Data Sheet

  • Product Resources

  • Specifications

  • Required Products & Optional Accessories

    Note: Add the current product in cart before ordering required products below ...

    Required Products:

    Upper Track, Pre-drilled, Aluminum (choose one):
    • for HAWA Junior 250/A, B, Length: 4 m (13’ 1 1/2”)
      for HAWA Junior 250/A, B, Length: 6 m (19’ 8 1/4”)      		942.56.940
      942.56.960      		Click to order
      Click to order

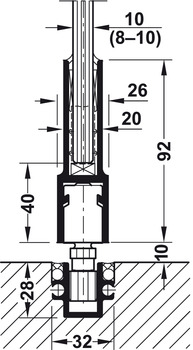

    Lower Guide Channel, Pre-drilled (choose one):


    Optional Accessories:

    • Profile, Self-Adhesive, for 8 - 10 mm (5/16 - 13/32") Thick Glass
    • Glass Door Lock, Toplock for European Profile Cylinder
    • Connecting Pin, Set for Upper Track
    • Support and Glass Suspension Profile, For glass thickness: (3/16 - 13/32") 8–10 mm
    • Cover Cap, for Glass Suspension Profile (3/16 - 13/32") 12–16 mm
    • Support and Glass Suspension Profile, For glass thickness: (15/32 - 5/8") 12–16 mm
    • Cover Cap, for Glass Suspension Profile (15/32 - 5/8") 12–16 mm
    • Glass Holder Insert, with M6 x 30 (1 3/16") Screw

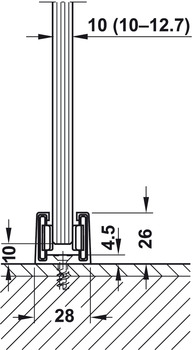

    • Single Lower Guide, Zero clearance, for glass thickness 8, 10, 12 (12.7) mm

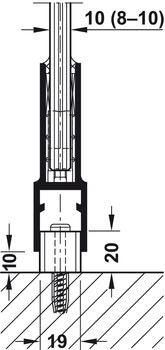

    • Floor Guide, Plastic
    • Lower Guide, with Slider and Suspension Block
    • Connecting Pin, Notched
