Product Information
Description
Manufacturer: Hafele
Item: 942.72.000

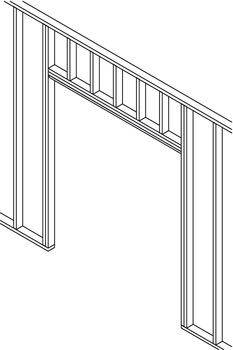

Product Title: Pocket Door Frame Set, Slido, For 80" tall door
Category: Pocket Door Frame Set, Slido,
Item Details …
- After installationthe system components are serviceable because the track can be removed without opening up the drywall
- Specially bent steel reinforced split studs prevent bowing of the pocket walls
- Simple and straight forward installation

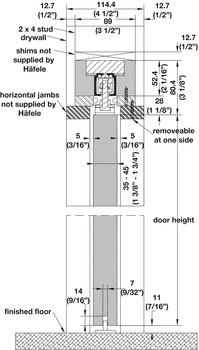

- For door thickness max. : 1 3/4"
- For door width (inches) : Max: 40"
- Load bearing capacity : 88 - 264 lbs.
- Area of application : Provides an effective way to save space in tight rooms and frees up typically unused wall and floor areas
- Order reference
- For bi-parting applications order 2 sets. The sliding fitting sets need to be ordered separately. Refer to the respective catalog pages for the Slido Classic 40-P, 60-P, 80-P, and 120-P.
- Supplied with:
- Header assembly
- Front & back vertical stud with aspen wood strip
- Shoe plate
- Concealed end bracket
- Open end bracket
- Filler strip
- Upper track
- Screw packData Sheet
