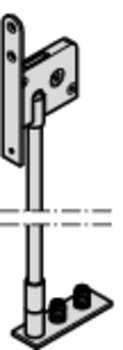

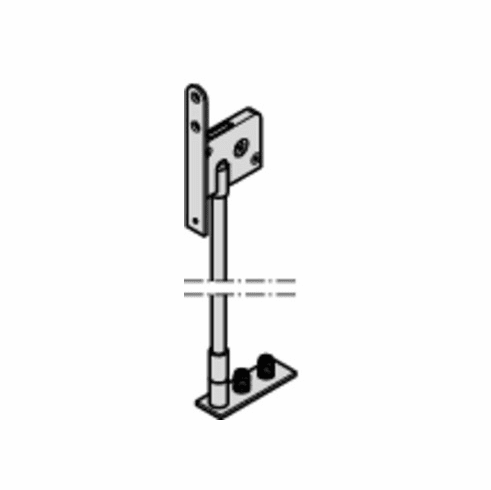

Hafele 943.04.084 Bar Bolt Lock, steel, galvanized

Product Information

• Description

  Manufacturer: Hafele
  Item: 943.04.084

  Product Title: Bar Bolt, with square/hexagonal nut, For Hawa Variofold and Centerfold 80/H, backset 42.5 mm

  Category: Bar Bolt, with square/hexagonal nut, For Hawa Variofold and Centerfold 80/H, backset 42.5 mm

  Item Details …

  - Locks and secures partition walls

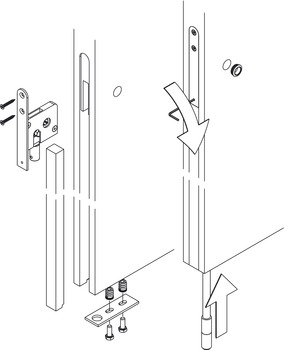

  - Operation with square or hexagonal key from the face of the door or with a thumbturn

  - Color/finish : Zinc plated

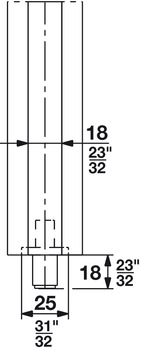

  - Travel : 18.00 mm

  - Length : 1,033.00 mm

  - Material : Steel

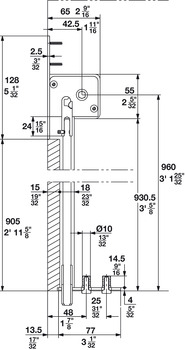

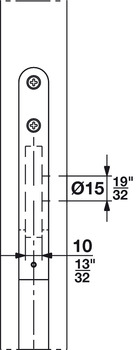

  - Backset (mm) : 42.5 mm

  - Door weight max. : 176 lbs.

  - Area of application : For locking and holding position of folding and concertina walls

  - Version : Extending rod cannot be shortenedoperating height: 960 mm

  - Type of Opening : with square socket key or hex key from door surface

  - Height (inch) : Operation height: 37 13/16"


  Additional Information …

  Lever follower: 7 mm square or 8 mm hexagonal

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Architectural_Hardware_2022|Page 1.194

  TCH_Architectural_Hardware_2022|Page 1.199

  TCH_Architectural_Hardware_2022|Page 1.236



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.201-1.203.pdf

  Hafele 943.04.084 Bar Bolt Lock, steel, galvanized (each)


  • Hardware > Locks & Keys
  • Hardware,Hafele,500-3000
  • Brand: Hafele
  • Part#: 943.04.084
  • Condition: new

• Required Products & Optional Accessories

  Optional Accessories:



  • Thumbturn, with square pin
  • Slip-fit Rose, For Hawa Variofold and Centerfold 80/H
  • Socket Key, for Bolt Lock
  • Dust-Proof Strike, With Spring-Loaded Cover
  • Rosette, For Dust-proof Strike 946.23.920
  • Stike Plate, With Oblong Hole
  • Folding Wall Fitting, HAWA Centerfold 80 H
  • Sliding door fitting, Hawa Variofold 80/H hinged doors
