Hafele 943.27.101 Folding wall fitting, Hawa Centerfold 80/H Concertina wall and access door fitting for wooden folding sliding doors, height adjustable, for door weights up to 80 kg, for door widths 500-900 mm, Additional Set

Product Information

• Description

  Manufacturer: Hafele
  Item: 943.27.101

  Product Title: Folding Wall Fitting, HAWA Centerfold 80 H, Concertina wall and access door fitting for wooden folding sliding doors, height adjustable, for door weights up to 80 kg, for door widths 500-900 mm, Additional Set

  Category: Folding Wall Fitting, HAWA Centerfold 80 H, Concertina wall and access door fitting for wooden folding sliding doors, height adjustable, for door weights up to 80 kg, for door widths 500-900 mm

  Item Details …

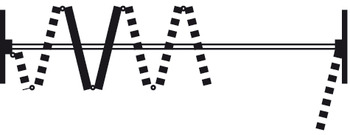

  - For 1 1/2 - 6 1/2 folding panels

  - Lower guide channel not required

  - Dual running gear with ball bearings

  - Minimal space required in stacking area

  - Extremely quiet and smooth operation

  - Set : Set without tracks

  - Spring : Center suspension

  - For door thickness min. : 1 3/8"

  - For door thickness max. : 1 3/4"

  - Load bearing capacity : For Panel: 176 lbs.

  - For door material : wood

  - Number of doors per system max. : >4

  - For door thickness : 35?–?45 mm

  - For door weight : ?80 kg

  - For door width : 500?–?900 mm

  - System width 1-sided : 6.00 m

  - System width 2-sided : 12.00 m

  - Running system : Concealed in track

  - Controller installation options : Ceiling installation

  - Adjustment facility : Height adjustment: ±3 mm, Height adjustable ± 3 mm (±1/8”)

  - Version : Hinge with heavy duty bearingswithout bottom guide track

  - Support flange connection : Carriage

  - Order reference

  - Please order tracks, hinges and accessories separately.

  - Supplied with:

  - 1 folding/access door catch, adjustable

  - 1 running gear, 4 rollers, with support carriage, screw M10 and spacer

  - 1 support profile, pre-drilled, length 550 mm

  - 1 cover cap for support profile

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions

  TCH_Architectural_Hardware_2022|Page 1.197



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.161-1.163.pdf

  Hafele 943.27.101 Fitting Set for Centerfold 80/H
