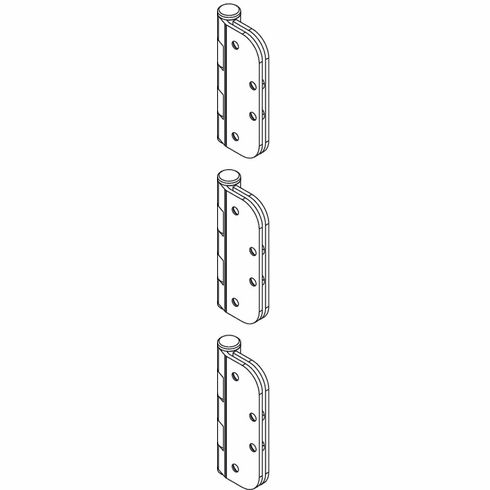

Hafele 943.34.117 Mortise Straight Hinge Set for Inward Opening Al Fresco Summit, Stainless Steel, Satin

Product Information

• Description

  Manufacturer: Hafele
  Item: 943.34.117

  Product Title: Mortise Straight Hinge Set for Inward Opening, Al Fresco Summit, Stainless Steel, Satin

  Category: Mortise Straight Hinge Set for Inward Opening, Al Fresco Summit, Stainless Steel

  Item Details …

  - For doors exceeding 2.4 m (96 1/2”), refer to spare hinges, optional jamb pivot and security aligner.

  - 150 kg (330 lbs.) option is available. To collaborate on your custom configuation, receive a quote or place an order, contact our Häfele product specialist at 1-888-437-7477.

  - Full corrosion resistant construction

  - 316 marine grade stainless steel parts for improved strength and maximum corrosion resistance

  - Hardware finishes: Satin stainless, polished stainless, PVD brass, and PVD rustic black

  - Conealed channels enhances appearance

  - Mortise and non-mortise hinges and hangers available

  - Precision bearings top and bottom decrease rolling resistance

  - Ideal for coastal climates

  - Material : Stainless steel, quality AISI 316

  - For door height (inches) : 10' 9 15/16"

  - For door width (inches) : 3' 3 3/8"

  - For min. panel thickness : Mortise: 1 3/8"; Mortise (radius corner): 1 3/4"

  - For max. panel thickness : Mortise: 2 3/4"; Mortise (radius corner): 2 3/4"

  - Load bearing capacity : 220 lbs.

  - Folding hinge type : Folding hinge

  - Opening : outwards opening

  - For door weight : ?100 kg

  - For door thickness : 35?–?68 mm

  - For door height : ?3,300 mm

  - For door width : ?1,000 mm

  - Door processing : With recess

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Architectural_Hardware_2022|Page 1.219



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.180-1.188.pdf

  Hafele 943.34.117 Hinge Set, standard, mortise, stainless steel, satin


  • Hardware > Hardware Accessories > Hinges
  • Hardware,Hafele,50-500
  • Brand: Hafele
  • Part#: 943.34.117
  • Condition: new
