Hafele 943.51.002 Slido Classic Bi-Fold 30 Fitting Set, includes 1.220 meter of upper track

Product Information

• Description

  Manufacturer: Hafele
  Item: 943.51.002

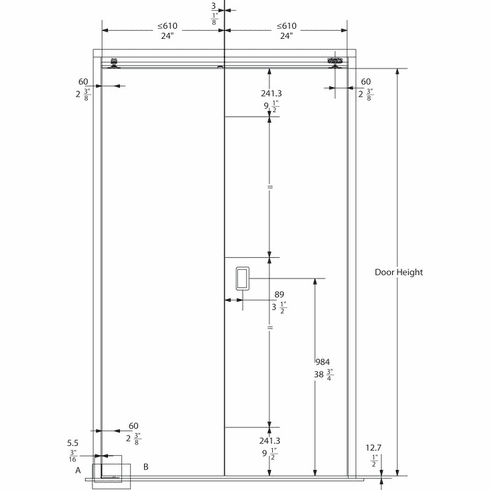

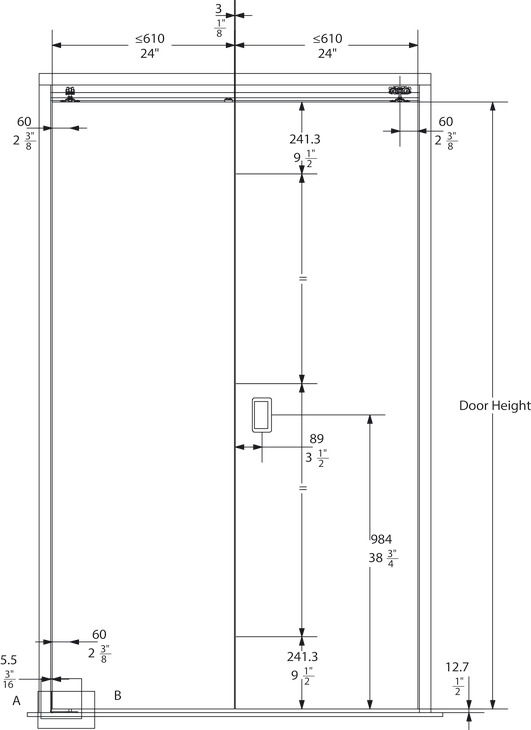

  Product Title: Sliding Set, Slido Classic Bifold 30, For 2 panels/doors, includes 1.22 m (48 1/16") long upper track

  Category: Sliding Set, Slido Classic Bifold 30, For 2 panels/doors

  Item Details …

  - Simple installation

  - Lower pivot options included for wall or floor mounting

  - Smooth and quiet operation

  - Area of application : Interior commercial doors

  - For door thickness min. : 1 1/4"

  - For door thickness max. : 1 3/4"

  - For door height (inches) : Max. 108"

  - For door width (inches) : Max: 24"

  - Load bearing capacity : Maximum panel weight: 66 lbs.

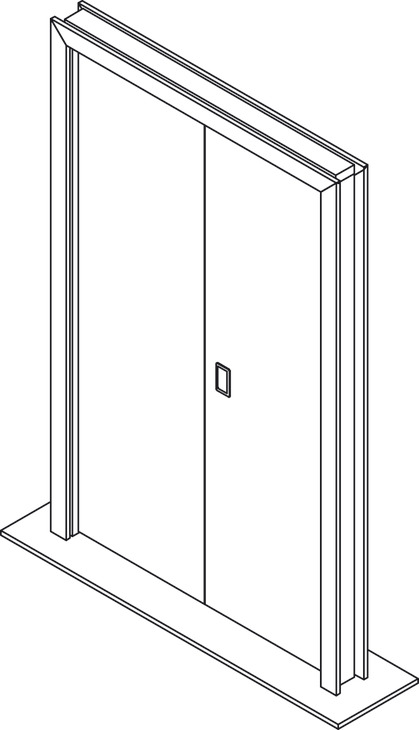

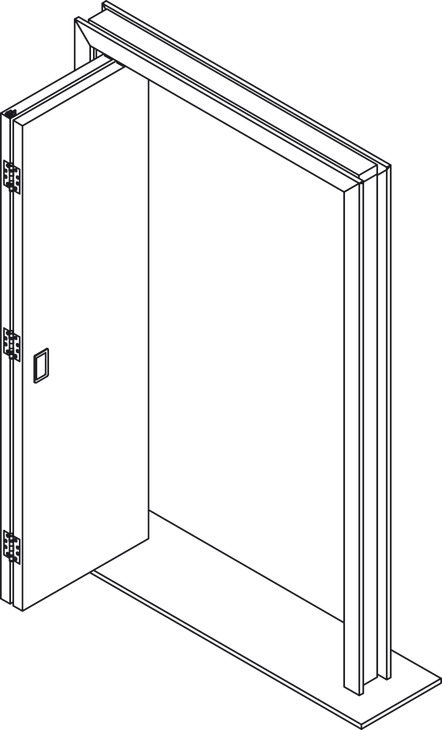

  - Version : For 2 doors, bi-folding in one direction, includes 1.22 m (48 1/16") long upper track

  - Supplied with:

  - 1 running gear with suspension plate

  - 1 upper pivot with suspension plate

  - 1 lower pivot for wall mounting

  - 1 lower pivot for floor mounting

  - 1 pivot plate

  - 1 stop bracket

  - 3 butt hinges 4" x 3"

  - 1 wrench for height adjustment

  - 1 set of mounting screws

  - 1 upper track 1.22 m (48 1/16")

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Slido Bifold 30 Mounting Instructions

  Hafele Sliding Door Brochure



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Single running track, Pre-Drilled (choose one):


  • for Slido Classic, 2.5 m Length for Slido Classic, 1.22 m Length

    940.43.926 940.43.929

    Click to order Click to order
