Hafele 943.55.000 Slido W-Fold32 100T Fitting Set, basic set for system with lower guide channel, with pivot bearing top & bottom (1 kit), 94355000, 943-55-000Zoom

Hafele 943.55.000 Folding Wall Fitting, Slido Fold 100-T, Set Folding and access door fitting, corner and center suspension, for door weight up to 100 kg, Basic set for systems with bottom track

$257.38$321.72You Save: $64.34 (20%)
Item# Hafele-943-55-000
Availability: in stock (36 or less)

Product Information

  • Description

    Manufacturer: Hafele
    Item: 943.55.000

    Product Title: Folding Wall Fitting, Slido W-Fold32 100T, set, Folding and access door fitting, corner and center suspension, for door weight up to 100 kg, Basic set for systems with bottom track

    Category: Folding Wall Fitting, Slido W-Fold32 100T, set, Folding and access door fitting, corner and center suspension, for door weight up to 100 kg

    Item Details …

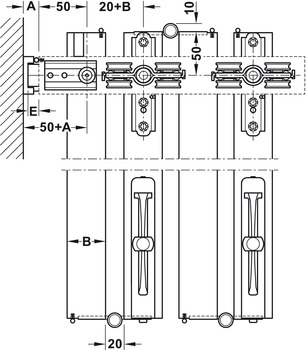

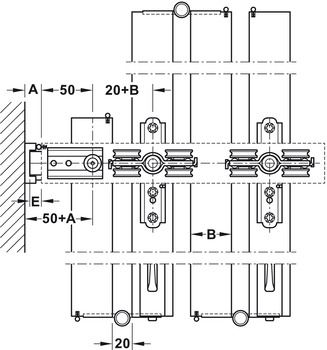

    -     One fitting for corner and center suspension.

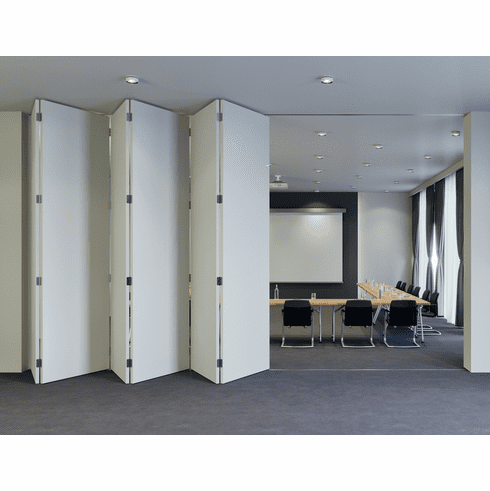

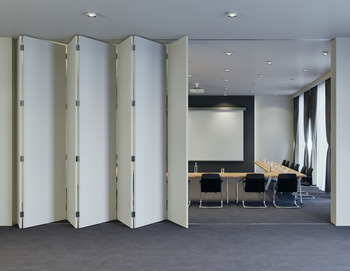

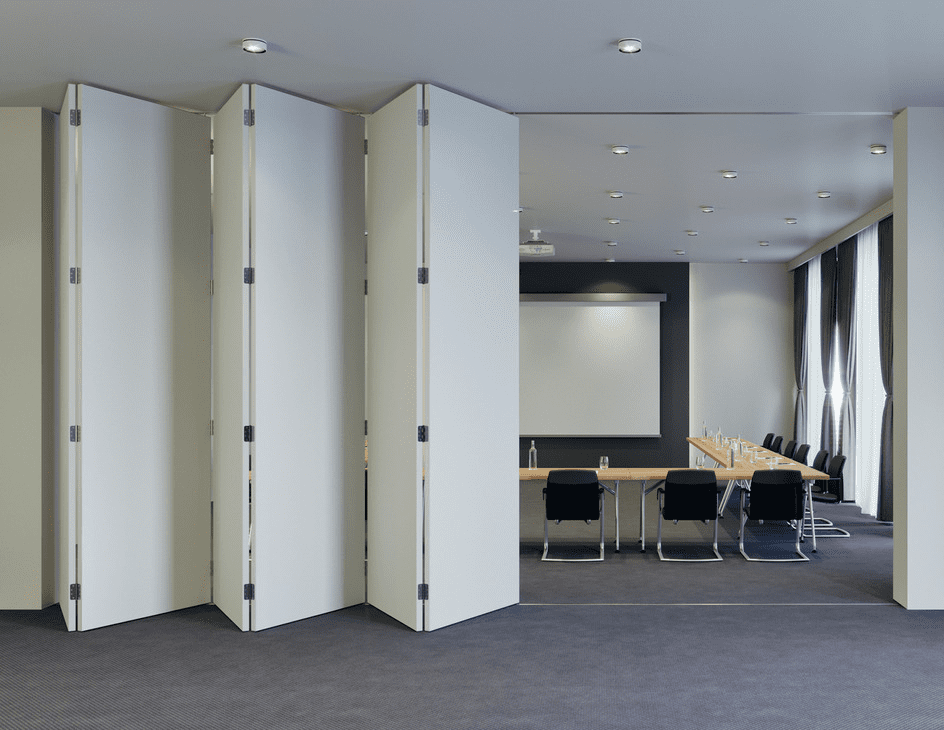

    - For flexible room partitioning and screens

    - One fitting for corner and center suspension

    - Set : Set without tracks

    - For door material : wood

    - Suitable for : Flexible room or visual separation

    - Number of doors per system max. : >4

    - For door height : ?3,500 mm

    - For door thickness : 35?–?60 mm

    - For door weight : ?100 kg

    - For door width : 500?–?1,000 mm

    - System width 1-sided : 6.00 m

    - System width 2-sided : 12.00 m

    - Running system : Concealed in track

    - Controller installation options : Ceiling installation

    - Adjustment facility : Height adjustment: ±5 mm

    - Material/finish : Running track: AluminiumGuide track: AluminiumRunning gear: SteelRoller: Plastic, Silver colored, anodized

    - Order reference

    - Please order running tracks, guide tracks, hinges and accessories separately.

    - Supplied with:

    - 1 running gear, 4 rollers, with support flange

    - 2 pivot bearings (1 each top/bottom)

    - 1 guide

    - 1 centering set for door


    Additional Information …

    Please see installation instructions for exact calculation of door width and required door preparation details.The number of flange hinges depends on the height of the door leaf.The corner suspension version of Slido-Fold systems always requires bottom guide tracks. Only systems with max. 2 doors on both sides are an exception. These systems do not necessarily require bottom guide tracks.Installation without (standard) or with bottom track is optional with center suspension version.In the version without a floor guide, we recommend setting the gap size between the floor and the bottom edge of the door to 7 to 12 mm, since the door leaf package could otherwise come into contact with the floor because of the slightly swinging folding movement if the gap dimension is too small.

  • Data Sheet

  • Product Resources

  • Specifications

    Click here for complete specifications in PDF format.

  • Required Products & Optional Accessories

    Note: Add the current product in cart before ordering required products below ...

    Required Products:

    Upper Running Track, Pre-drilled (choose one):
    • for Slido Fold 100T Folding Wall, Length 6,000 mm
      for Slido Fold 100T Folding Wall, Length: 3.0 m (9 10 1/8")      		943.55.040
      943.55.041      		Click to order
      Click to order


    Lower Guide Channel, Pre-drilled (choose one):
    • for Slido Fold 100T Folding Wall, Length: 6.0 m (19 8 1/4")
      for Slido Fold 100T Folding Wall, Length: 3.0 m (9 10 1/8")      		943.55.050
      943.55.051      		Click to order
      Click to order


    Optional Accessories:

    • Support Profile, For Suspended Ceiling Tiles
    • Butt Hinge, Startec, Stainless Steel, 4" x 3"
    • Lock, for Slido Fold 100-T Folding Wall
    • Dust Proof Strike, For Locks
    • Bar Bolt Lock, Hawa Doorfix
    • Flush Bolt, Slide Action
    • Hexagon Socket Key, For Locks
    • Tool Set, for Slido Fold 100-T Folding Wall
    • Door Seals, for Slido Fold 100-T Folding Wall
