Hafele 943.55.004 Folding Wall Fitting, Slido Fold 100-T, Set Folding and access door fitting, corner and center suspension, for door weight up to 100 kg, Set for access door, for systems with bottom track

Product Information

• Description

  Manufacturer: Hafele
  Item: 943.55.004

  Product Title: Folding Wall Fitting, Slido W-Fold32 100T, set, Folding and access door fitting, corner and center suspension, for door weight up to 100 kg, Set for access door, for systems with bottom track

  Category: Folding Wall Fitting, Slido W-Fold32 100T, set, Folding and access door fitting, corner and center suspension, for door weight up to 100 kg

  Item Details …

  - One fitting for corner and center suspension.

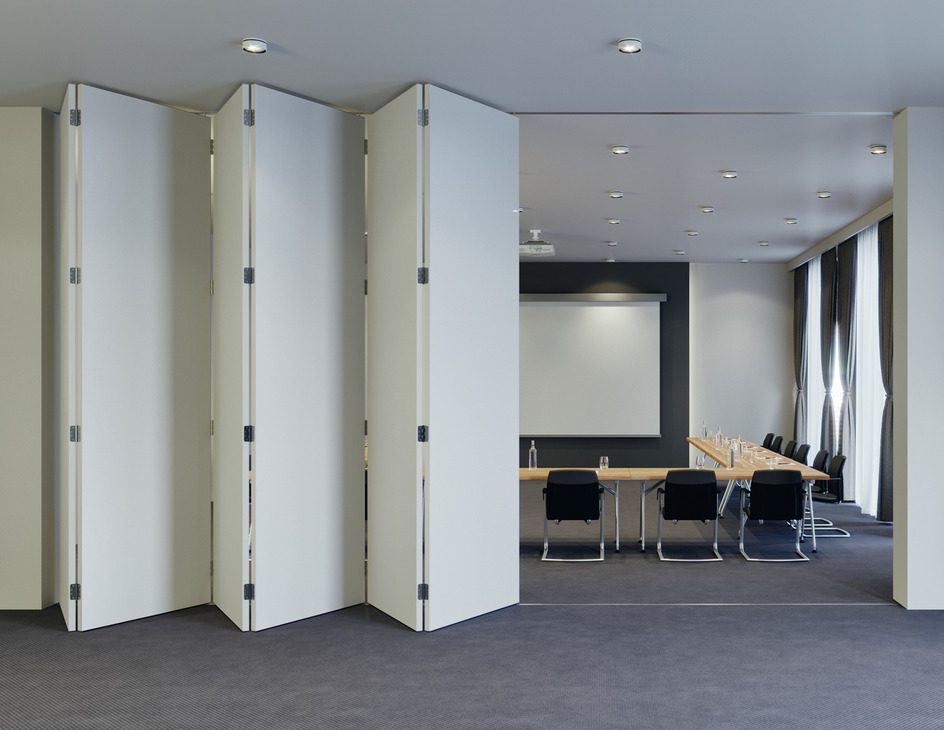

  - For flexible room partitioning and screens

  - One fitting for corner and center suspension

  - Set : Set without tracks

  - For door material : wood

  - Suitable for : Flexible room or visual separation

  - Number of doors per system max. : >4

  - For door height : ?3,500 mm

  - For door thickness : 35?–?60 mm

  - For door weight : ?100 kg

  - For door width : 500?–?1,000 mm

  - System width 1-sided : 6.00 m

  - System width 2-sided : 12.00 m

  - Running system : Concealed in track

  - Controller installation options : Ceiling installation

  - Adjustment facility : Height adjustment: ±5 mm

  - Material/finish : Running track: AluminiumGuide track: AluminiumRunning gear: SteelRoller: Plastic, Silver colored, anodized

  - Order reference

  - Please order running tracks, guide tracks, hinges and accessories separately.


  Additional Information …

  Please see installation instructions for exact calculation of door width and required door preparation details.The number of flange hinges depends on the height of the door leaf.The corner suspension version of Slido-Fold systems always requires bottom guide tracks. Only systems with max. 2 doors on both sides are an exception. These systems do not necessarily require bottom guide tracks.Installation without (standard) or with bottom track is optional with center suspension version.In the version without a floor guide, we recommend setting the gap size between the floor and the bottom edge of the door to 7 to 12 mm, since the door leaf package could otherwise come into contact with the floor because of the slightly swinging folding movement if the gap dimension is too small.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for Häfele Slido W-Fold32 100T corner suspension

  Installation instructions for Häfele Slido W-Fold32 100T centre suspension

  TCH_Architectural_Hardware_2022|Page 1.190



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Upper Running Track, Pre-drilled (choose one):


  • for Slido Fold 100T Folding Wall, Length 6,000 mm for Slido Fold 100T Folding Wall, Length: 3.0 m (9 10 1/8")

    943.55.040 943.55.041

    Click to order Click to order



  Lower Guide Channel, Pre-drilled (choose one):


  • for Slido Fold 100T Folding Wall, Length: 6.0 m (19 8 1/4") for Slido Fold 100T Folding Wall, Length: 3.0 m (9 10 1/8")

    943.55.050 943.55.051

    Click to order Click to order



  Optional Accessories:



  • Support Profile, For Suspended Ceiling Tiles
  • Butt Hinge, Startec, Stainless Steel, 4" x 3"
  • Lock, for Slido Fold 100-T Folding Wall
  • Dust Proof Strike, For Locks
  • Bar Bolt Lock, Hawa Doorfix
  • Flush Bolt, Slide Action
  • Hexagon Socket Key, For Locks
  • Tool Set, for Slido Fold 100-T Folding Wall
  • Door Seals, for Slido Fold 100-T Folding Wall
