Hafele 231.07.400 Furniture lock, EL50, 13.556Mhz mifare iso, with "door closed" sensor, with S6 screws (1 piece), 23107400, 231-07-400Zoom

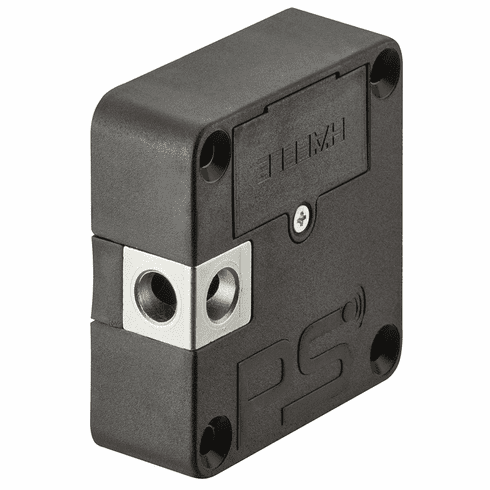

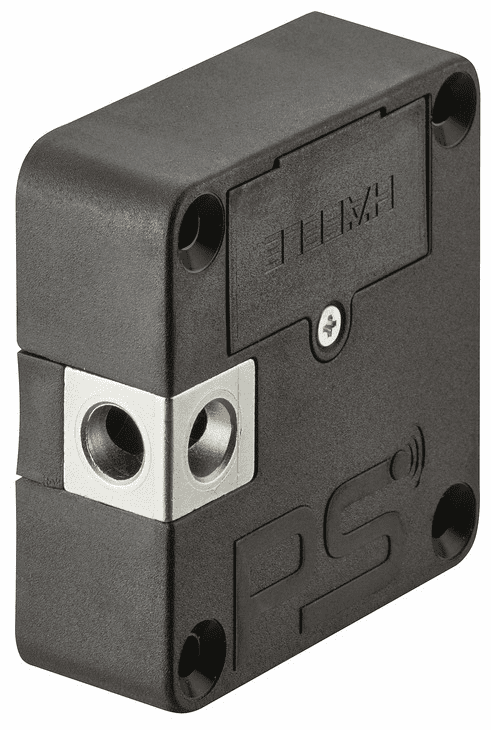

Hafele 231.07.400 Furniture Lock, EFL 50, Battery-operated Lock

$292.51$365.64You Save: $73.13 (20%)
Item# Hafele-231-07-400
Availability: Call for Availability
This product is out of stock.

Product Information

  • Description

    Manufacturer: Hafele
    Item: 231.07.400

    Product Title: Furniture Lock, EFL 50, Battery-operated Lock, Technology: Mifare Classic EV1

    Category: Furniture Lock, EFL 50, Battery-operated Lock, Technology: Mifare Classic EV1

    Item Details …

    -     Article variant : Battery-operated

    - Product type : Furniture Lock

    - Area of application : Intelligent locker lock for indoor use in wardrobes, lockers and cabinets for wood, glass or for sliding doors.

    - Version : Battery-operated

    - Material : Plastic

    - Color/finish : black

    - Transponder technology : MIFARE Classic® EV1

    - Functionality : Standard mode:One or more user cards are given a fixed assignment to one or more lockers for locking and unlocking.The lock remains open for 3 seconds after unlocking, and then locks again automatically.Wellness mode (free locker selection)Each user card can lock an open locker. When doing this, the user card is assigned to the selected locker so that only this user card can unlock the locker again. When the locker is unlocked again, the assignment is deleted.Toggle mode (deadbolt lock function):When an authorised transponder is presented, the lock opens and remains open. When the authorised transponder is presented for the second time, the lock is locked again.

    - Type of battery : CR 123 3V

    - For door thickness : ?20 mm

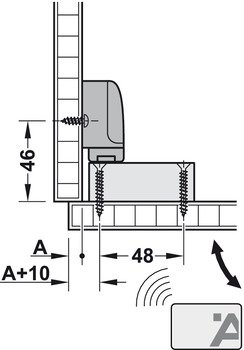

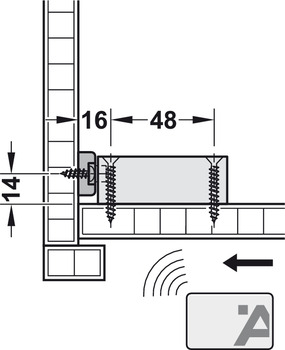

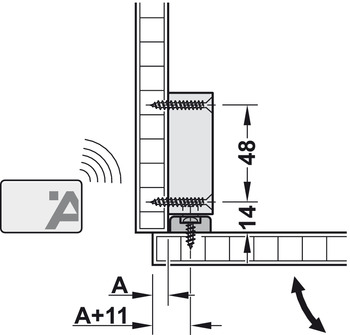

    - Installation : Installation of hinged doorIn order to unlock the EFL 50, the transponder card must be held against the side of the cabinetInstallation of hinged door with Push-to-Open functionIn order to unlock the EFL 50, the transponder card must be held against the hinged doorInstallation of sliding doorIn order to unlock the EFL 50, the transponder card must be held against the sliding doorIn order to unlock the EFL 50, the transponder card must be held against the side of the cabinet

    - Order reference

    - Please order locking component and batteries separately.

    - Modes deviating from the standard must be ordered separately (Wellness/Toggle programming cards).

    - Supplied with:

    - 1 EFL50 furniture lock

    - Installation instructions


    Additional Information …

    For drawers and hinged doors with push-to-open function, the locking component must also be installed. If the battery voltage is too low, the lock no longer locks and a 15 second continuous tone is emitted. In order to avoid interference between locks, a minimum distance of 10 cm (3 15/16”) must be maintained between installed locks and also during storage. If the distance is less than this minimum, continuous communication will take place between the locks, which will drain the battery. To avoid unnecessary battery draining, do not insert the battery until start-up.

  • Data Sheet

  • Product Resources

  • Brand PDF Catalogs
