Manufacturer: Hafele
Item: 237.56.002
Product Title: Furniture Lock, EFL 1/1C, Dialock, Mains-Operated Lock, with plastic locking bolt, EFL 1 without feedback contact, cable length: 3 m
Category: Furniture Lock, EFL 1/1C, Dialock, Mains-Operated Lock, with plastic locking bolt, EFL 1 without feedback contact, cable length: 3 m
Item Details …
- A macro is required in order to use the feedback contact of the EFL 1C. Planning by Dialock specialist is required.
- Article variant : EFL 1 without feedback contact
- Product type : Furniture Lock
- Area of application : For indoor use: Furniture and office equipment (tambour doors, hinged doors, flaps and lids, drawers).
- Version : EFL 1 furniture lock, without feedback contact
- Material : Housing: Zinc alloy, locking bolt: Plastic, retaining plate: Zinc
- Functionality : The lock remains unlocked for 3 seconds via the FT 120/FT 200 (standard), then the door is locked again.If no voltage is present, the furniture lock is locked.
- Connection : FT 120 furniture terminal: Connection via CC 140 multi-lock adapter, FT 200 furniture terminal: Connection via MLA 8 multi-lock adapter
- Order reference

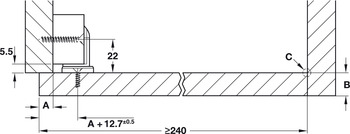

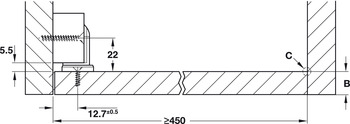

- Please order marking gauge for EFL 1/EFL 1C and macro key card for EFL 1C separately
- (only possible in combination with the FT 120).
- Alternatively, a metal locking bolt is available.
- Supplied with:

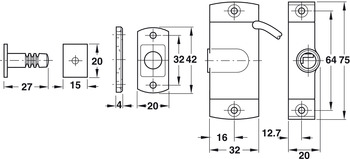

- 1 EFL 1 or EFL 1C furniture lock
- 1 locking bolt with retaining plate
Additional Information …
Keyed alike furniture locks:If several EFL 1 furniture locks are to be connected in parallel (keyed alike), this can be implemented with the CC 140 multi-lock adapter with the FT 120, and the MLA 8 multi-lock adapter with the FT 200.Keyed alike/keyed to differ furniture locks:If several EFL 1 furniture locks are to be connected in parallel (keyed alike) or individually (keyed to differ), this can be implemented with the CC 140 multi-lock adapter with the FT 120, and the MLA 8 multi-lock adapter with the FT 200.Also possible in combination with MLA 8:- parallel operation of keyed alike and keyed to differ- combination with other EFL furniture locks with AMP plug (e.g. EFL 41) or RJ10 plug (EFL 3)
