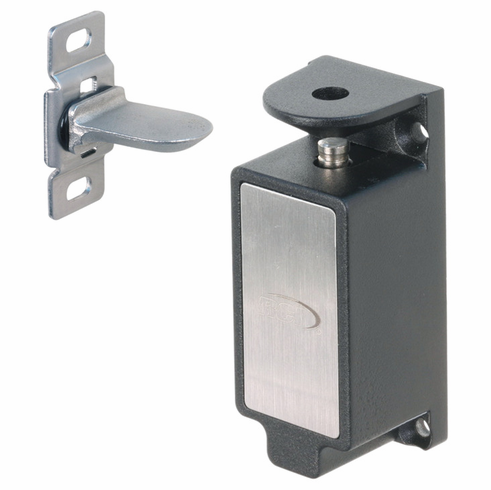

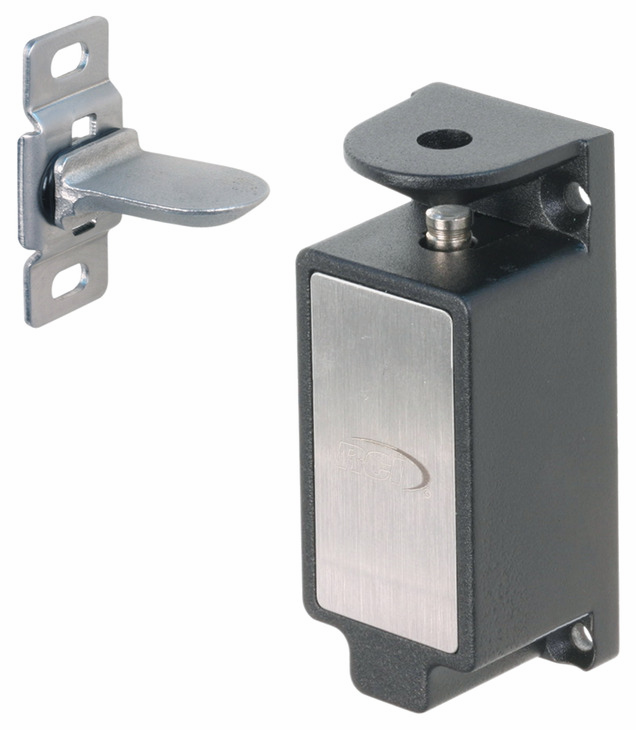

Hafele 237.56.062 EFL6 Electric Cabinet Lock, steel, black, 2M

Product Information

• Description

  Manufacturer: Hafele
  Item: 237.56.062

  Product Title: Electric Furniture Lock, EFL6, Dialock®

  Category: Electric Furniture Lock, EFL6, Dialock®

  Item Details …

  - Slam function

  - Field changeable from fail secure to fail safe

  - Article variant : EFL 6 ohne Rückmeldekontakt

  - Product type : Electric Furniture Lock

  - For door width (inches) : min. 9 1/2"

  - Area of application : For indoor use: Self-closing slides and hinges; sliding doors and drawers; For use with all electric and Dialock control devices

  - Version : EFL 6 furniture lock, without feedback contact

  - Material : Steel

  - Functionality : The lock opens by means of an electrical pulse, and remains unlocked for 3 seconds

  - Connection : FT 120 furniture terminal: Connection via CC 140 multi-lock adapter, FT 200 furniture terminal: Connection via MLA 8 multi-lock adapter

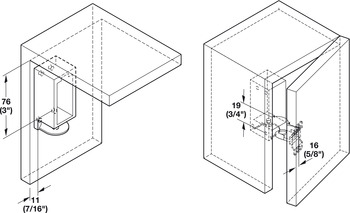

  - Installation : For screw fixing to inside of cabinet

  - Supplied with:

  - Lock body

  - Lock bolt

  - Male amp connection

  - Mounting hardware

  - Instructions

  - 2 m (78 3/4”) cable


  Additional Information …

  The lock must be wired to a controllable power source prior to installation of the strike plate. Otherwise, locking of the door may result.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.97

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.98



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.86-10.86.pdf
